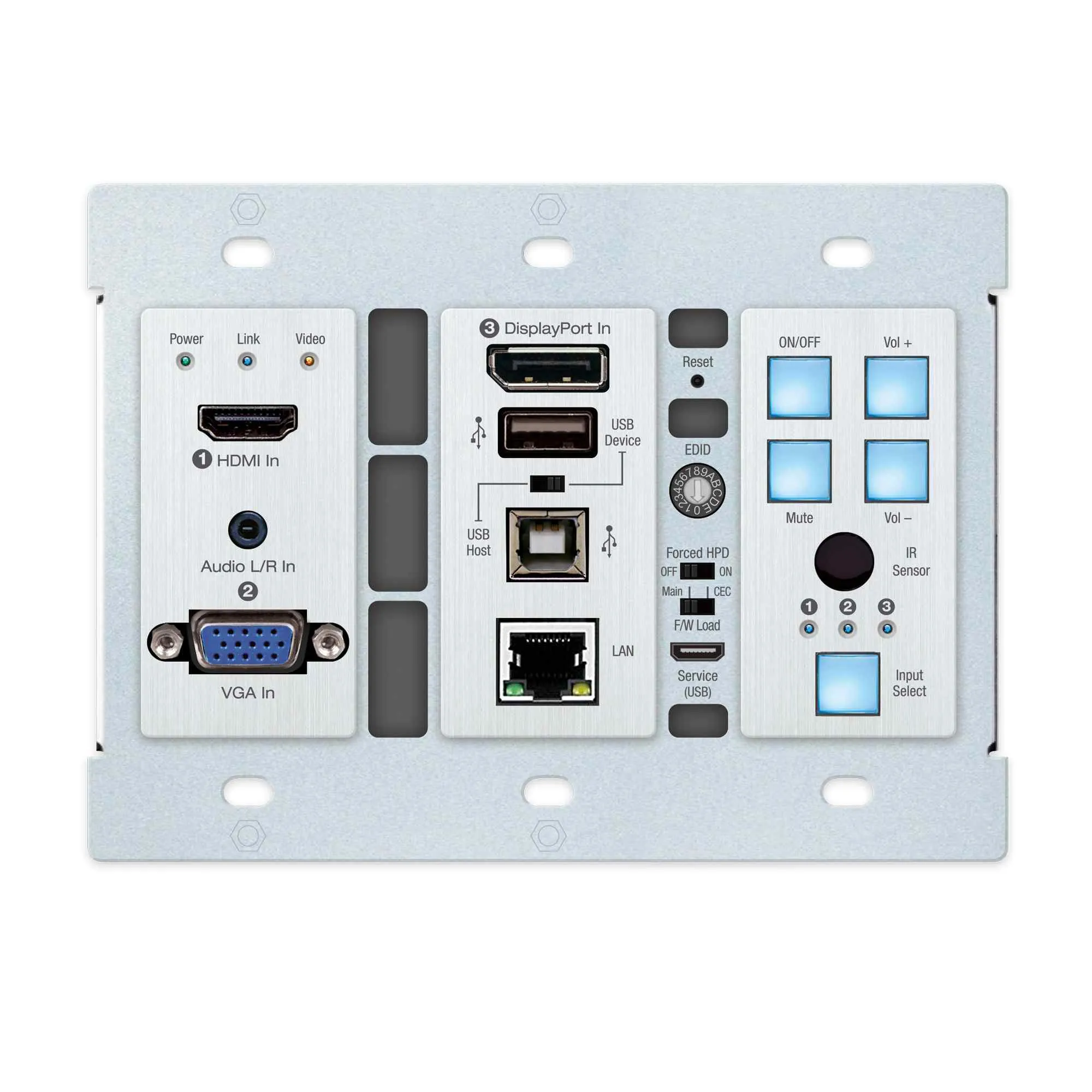

KD-3x1WUTx is an HDBaseT wall-plate transmitter universal format switcher soft-codec enabling interface with HDMI, Display Port, and VGA inputs, USB-A and USB-B connections. KD-X3x1WUTx is ideal for professional video installations in conference rooms, class rooms, lecture halls, auditoriums, and more. KD-X3x1WUTx's receivers (sold separately) feature audio de-embedding for ease of integration with audio systems. KD-X3x1WUTx features push-button or IP switching and is KD-App Ready. CEC Display control keypad enables basic controls of the connected display or projector for a simplistic all-in-one integration. In addition to AV signals, KD-X3x1WUTx extends USB 2.0, IR and RS-232 for controlling remotely located equipment. The wall-plate unit fits in a standard US three-gang box and is powered by the Rx unit or Presentation Switcher for convenient installation.

Features

• Presentation Switching: 1 HDMI, 1 VGA L/R, 1 Display Port, and 1 USB-C source selection by push button or IP control
• Installation: Fits in standard US 3-gang wall box or table and wall AV boxes
• Rx Options: Native integration with KD-X100MRx black box HDBaseT Rx or KD-UPS52U Presentation Switcher. Future Rx options may be available
• Video Conference USB Hub: USB Host Device ports create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
• CEC Manager™: Power, volume, and muting controls of the connected displays/projectors without any additional control wiring
• Audio De-Embedding: Audio of the selected source is de-embedded at the unit’s analog L/R balanced/unbalanced and PCM digital audio connectors
• ARC: Audio may be returned from the connected Rx (KD-X100MRx) unit and output on the external analog output
• KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager™
• KDPlug & Present™ Ready: Add KD-CX800 to build a programming-free automation system
• Ease of Integration: Complete configuration using Key Digital Management Software™ Pro
• Power Over HDBaseT: Wall-plate unit powered by Rx/Presentation Switch unit
• Installation: Tx unit designed for installation in standard US three-gang box
• Signal Extension: 4K/UHD (18G) up to 100m / 328ft. 1080p up to 150m / 492ft
• Surround Audio Support: Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™
• Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API.

Specifications

• AV Inputs: 1x HDMI, 1x VGA, 1x L/R, 1x Display Port, 1x USB-C,

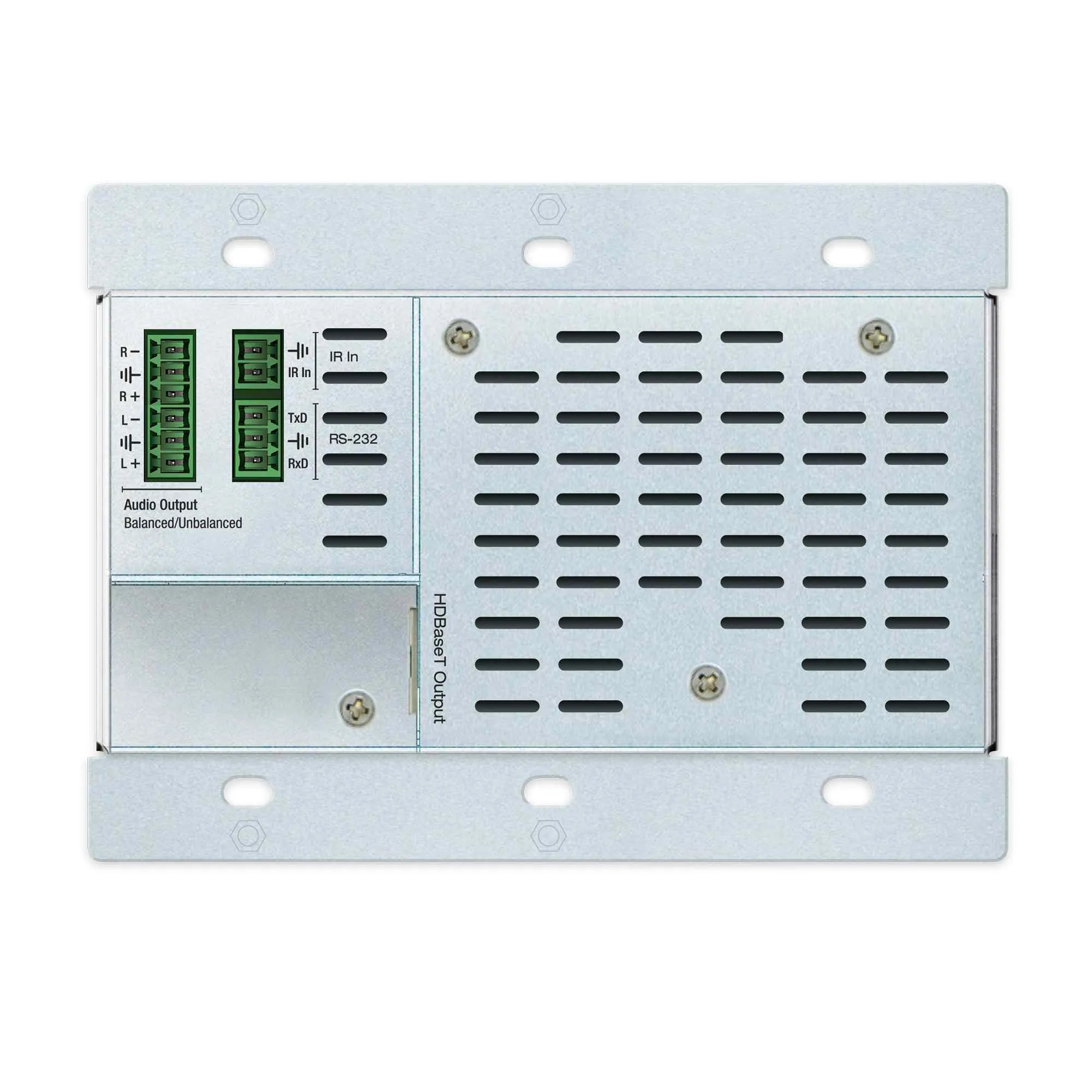

• AV Outputs: 1x HDBaseT RJ45, 1x HDMI, 1x Analog Audio on 6-pin terminal block, 1x Digital Audio on PCM RCA
• DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
• HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
• Display Port Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
• USB-C Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
• RJ45 Connectors: Shielded Link Connector, 2x HDBaseT, 1x LAN
• Unit Control: TCP/IP on RJ45, Bi-directional RS-232, Serial IR, IR sensor, USB Micro
• RS-232 Connector: 1x 3-pin terminal for unit control, 2x 3-pin terminal for pass-thru to/from HDBaseT Input and HDBaseT output
• IR Connectors: 1x IR Sensor, 1x 2-pin terminal for unit control, 1x 2-pin terminal for IR pass-thru to HDBaseT Input, 1x 3.5mm mono for IR input pass-thru to HDBaseT Output, 1x 3.5mm mono for IR output pass-thru from HDBaseT Output
• RS-232 Connector: 3-pin phoenix terminal
• Regulation: CE, RoHS, WEEE, EAC
• Enclosure: Black metal
• Product Dimensions: 8.27 x 7.20 x 1.75” (210 x 183 x 44.4 mm)
• Product Weight:
• Weight: 4.0 lbs / 1.81 kg
• Packaging Dimensions: 15.16 x 9.10 x 3.94 (385 x 230 x 100 mm)
• Packaging Weight: 11.0 lbs / 5 kg
