Product Details
＋
Description

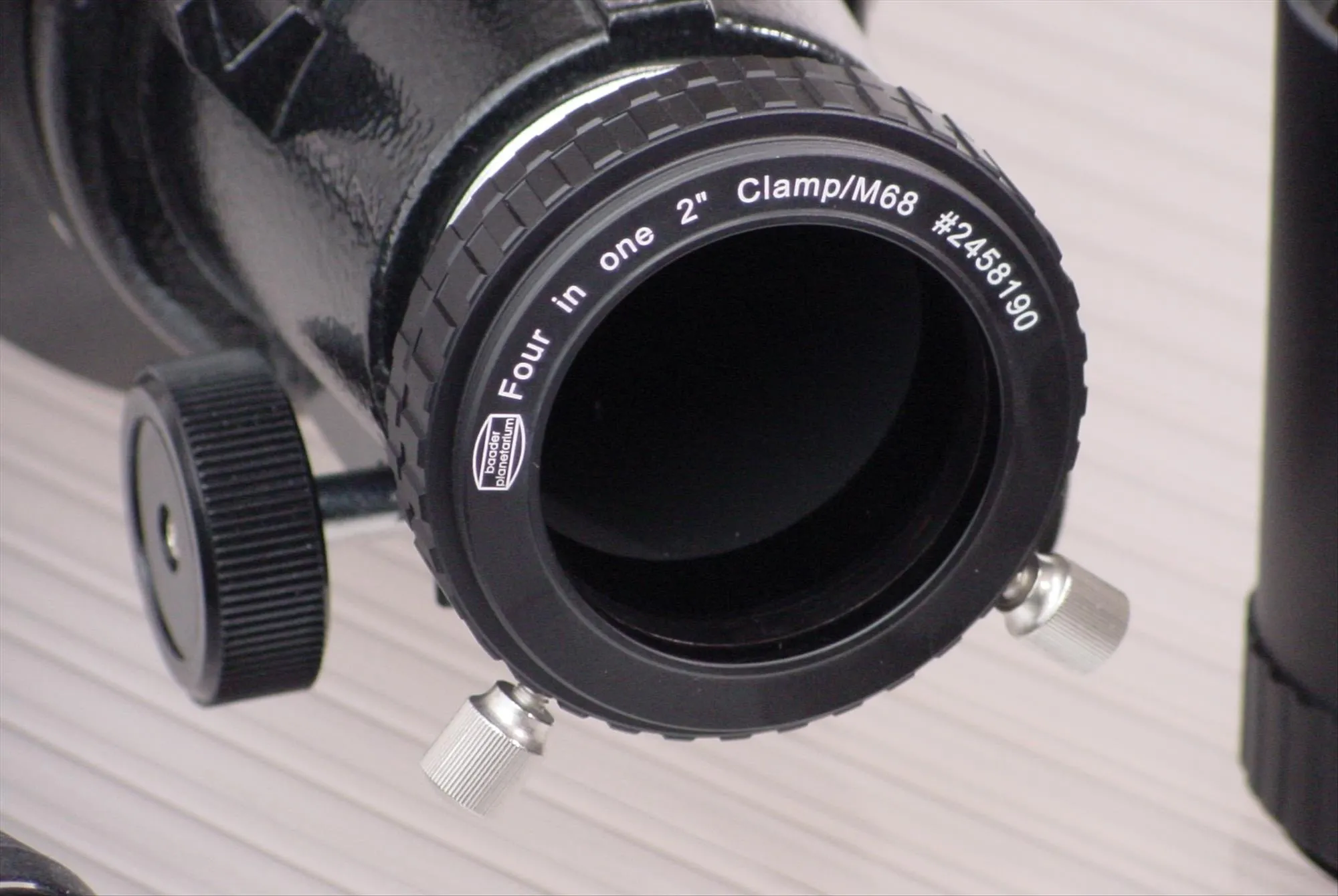

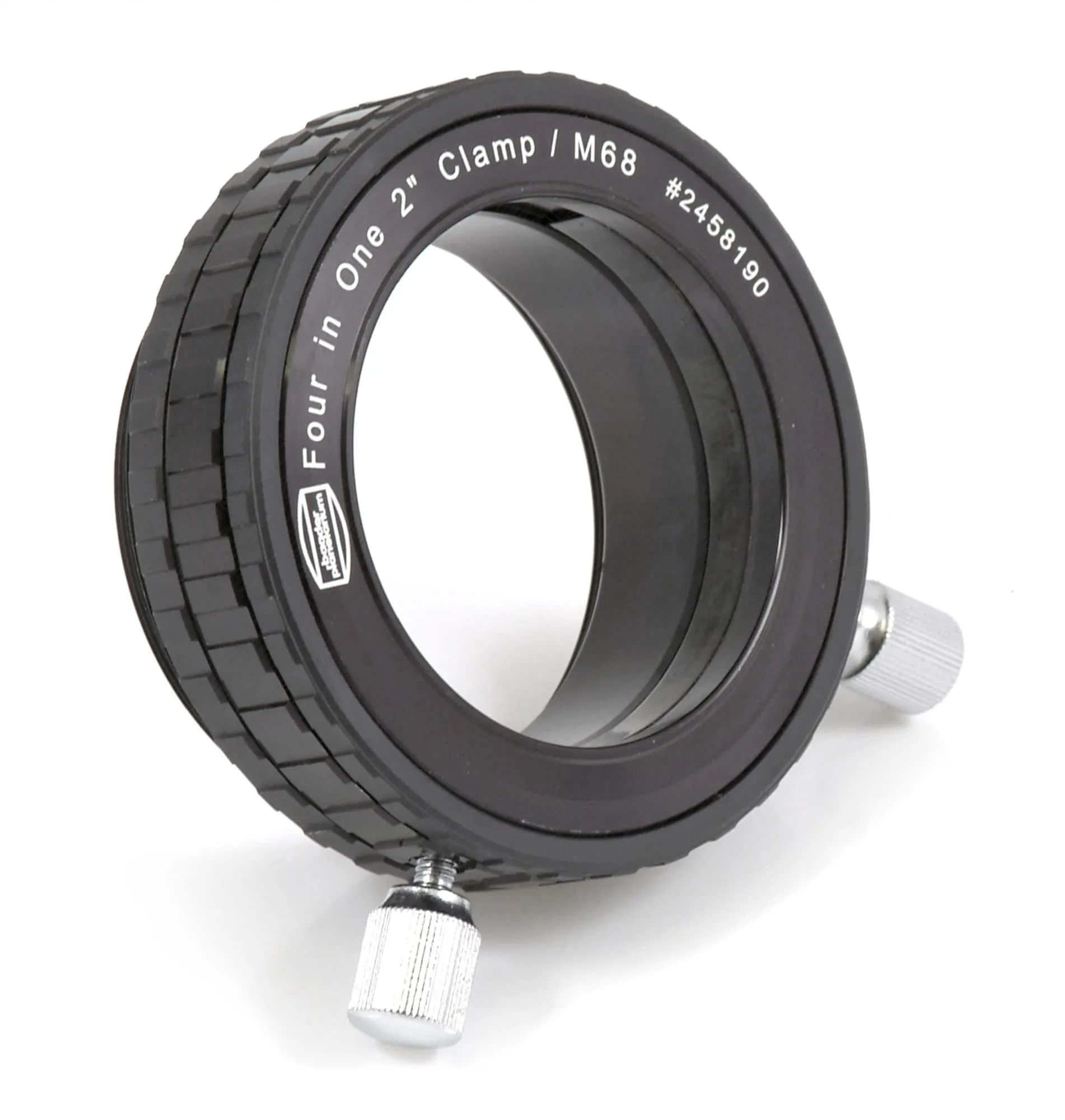

- 2" Clamping Eyepiece Holder with internal non-marring bronze clamp ring and dual large thumbscrews.
- Fits all Zeiss instruments with 68mm thread (with 19mm optical height)
- Fits all Vixen Optics with 60mm thread (with 24mm optical height)
- Fits all Astrophysics refractors with 2.7 "thread (with 13mm optical height)
- Fits Skywatcher / Celestron refractors, and all Synta optics with 56mm thread (with 31mm optical height)
Specifications
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2458190 |
| EAN CODE | 4047825010063 |
| WEIGHT (NETTO) | 0.185 |
| OPTICAL LENGTH (MM) | 19, 13, 24, 31 |
| CLAMPING SYSTEM | Screw clamps |
| SCREW TYPE | 2x M4 clamping screws |
| INNER DIAMETER / CLEAR APERTURE (MM) | 50,8 (2") |
| OUTER DIAMETER | 75 |
| INNER CONNECTION (LENS SIDED) | Thread, M56 x 1 |
| OUTER CONNECTION (LENS SIDED) | Thread, M60, M68 x 1, 2,7" |
| INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Clamp, 2" (50,8mm) |
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Thread, M68 x 1 |
| COMPATIBLE BRANDS | UNC, Astro Physics, Baader Planetarium, Celestron, Skywatcher, Vixen, Zeiss |
| TYPE OF ADAPTER | Expanding piece, Eyepiece Clamp, Reducing piece |
