Name: Godox WMicS2 Dual-Channel Wireless Receiver (514 to 596 MHz)
SKU: 299450

Product Details ＋

Compatible with your DSLR/mirrorless camera or smartphone with 3.5mm TRS or TRRS port, this WMicS2 Dual-Channel Wireless Receiver from Godox is a clip-on, camera-mountable wireless receiver, perfect for your vlogs or run-and-gun interviews. This dual-channel unit is designed to be used with one or two WMicS2 clip-on microphone/transmitter (available separately) to create a portable solution for your one- or two-person interviews from up to 656' away.

The receiver plugs into your device's 3.5mm TRS or TRRS port and features an additional 3.5mm headphone port to monitor your audio in real time. An integrated 770mAh lithium battery keeps the receiver going. Attach the receiver to your camera via its 1/4"-20 thread or onto your person with the included back clip and magnet mount. An OLED display shows your connectivity, mode, battery level, frequency signal, and volume.

Features at a Glance

Designed for use with one or two WMicS2 transmitters (available separately)

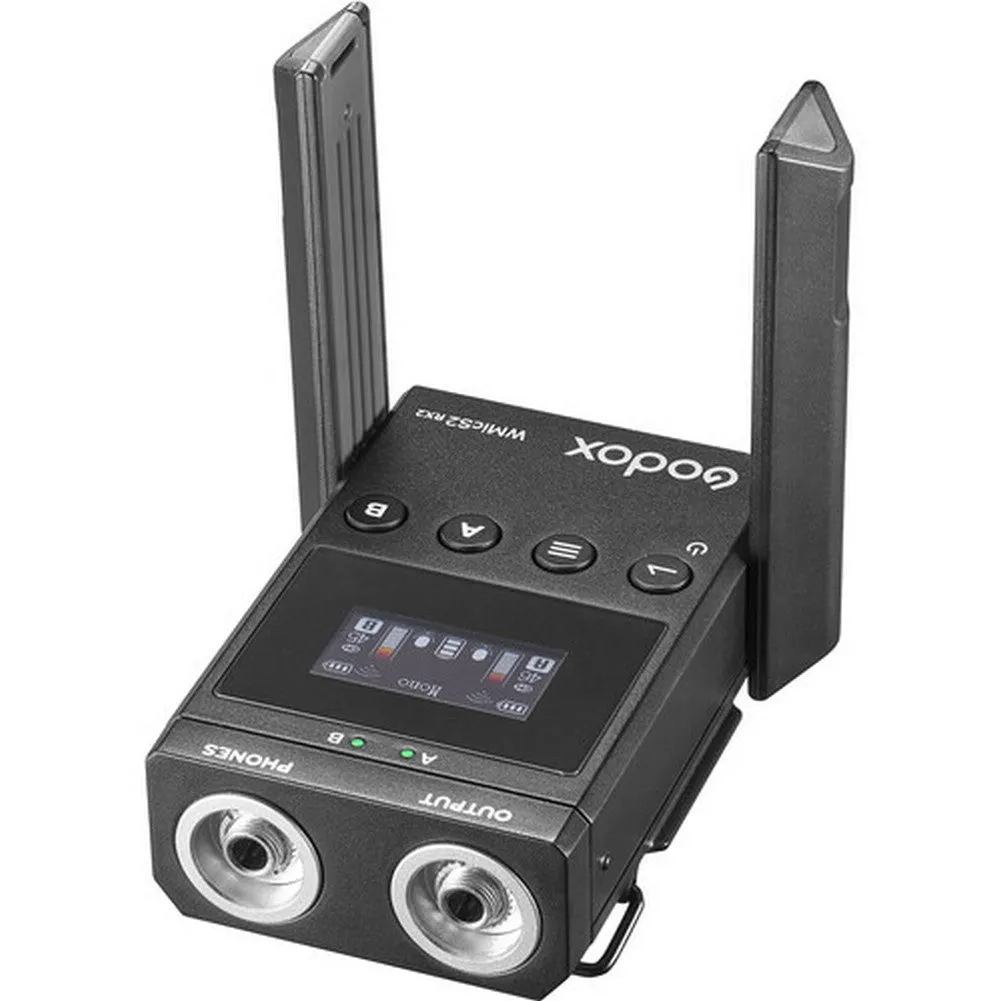

Two foldable antennae
Dual-channel receiver plugs into camera or smartphone 3.5mm TRS or 3.5mm TRRS port for single- or two-person shoots
3.5mm headphone port for real-time monitoring
UHF wireless frequency range from 514 to 596 MHz
656' line-of-sight range, 197' range with barriers
Toggle between mono and stereo output modes

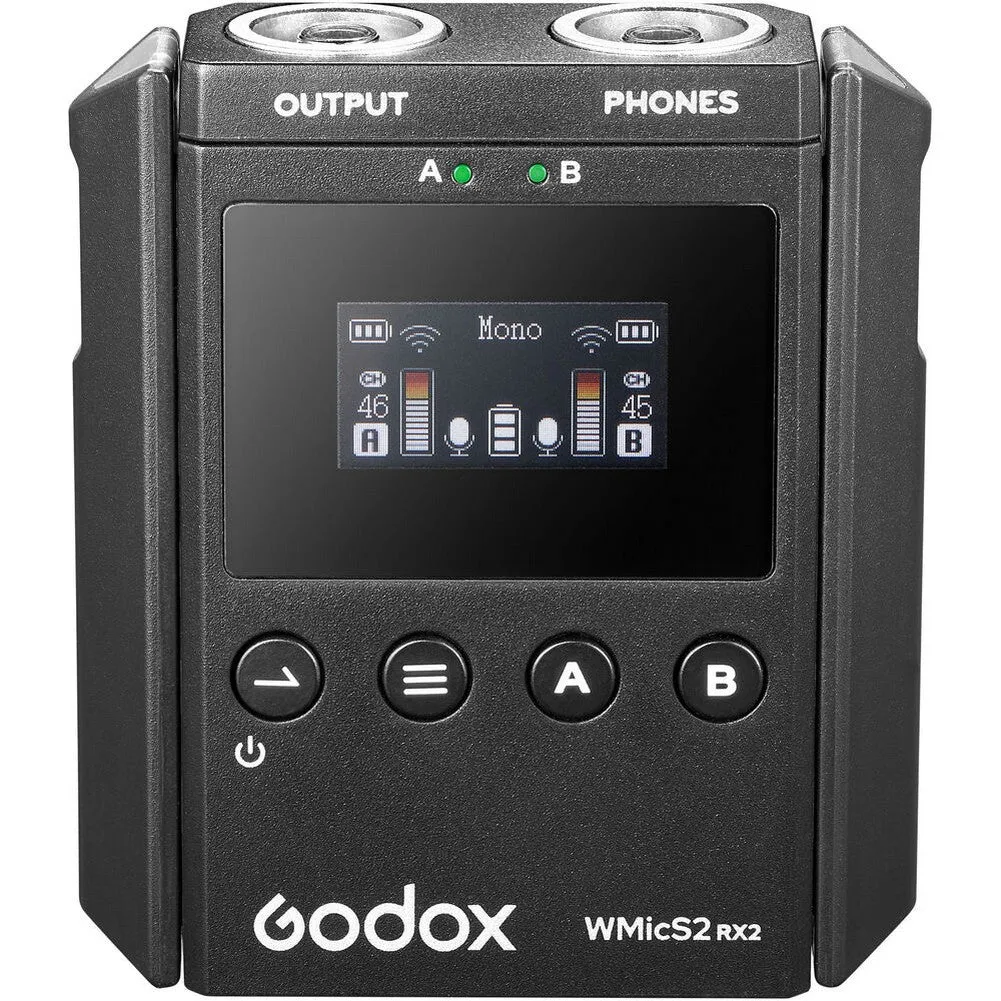

OLED display, volume adjustment

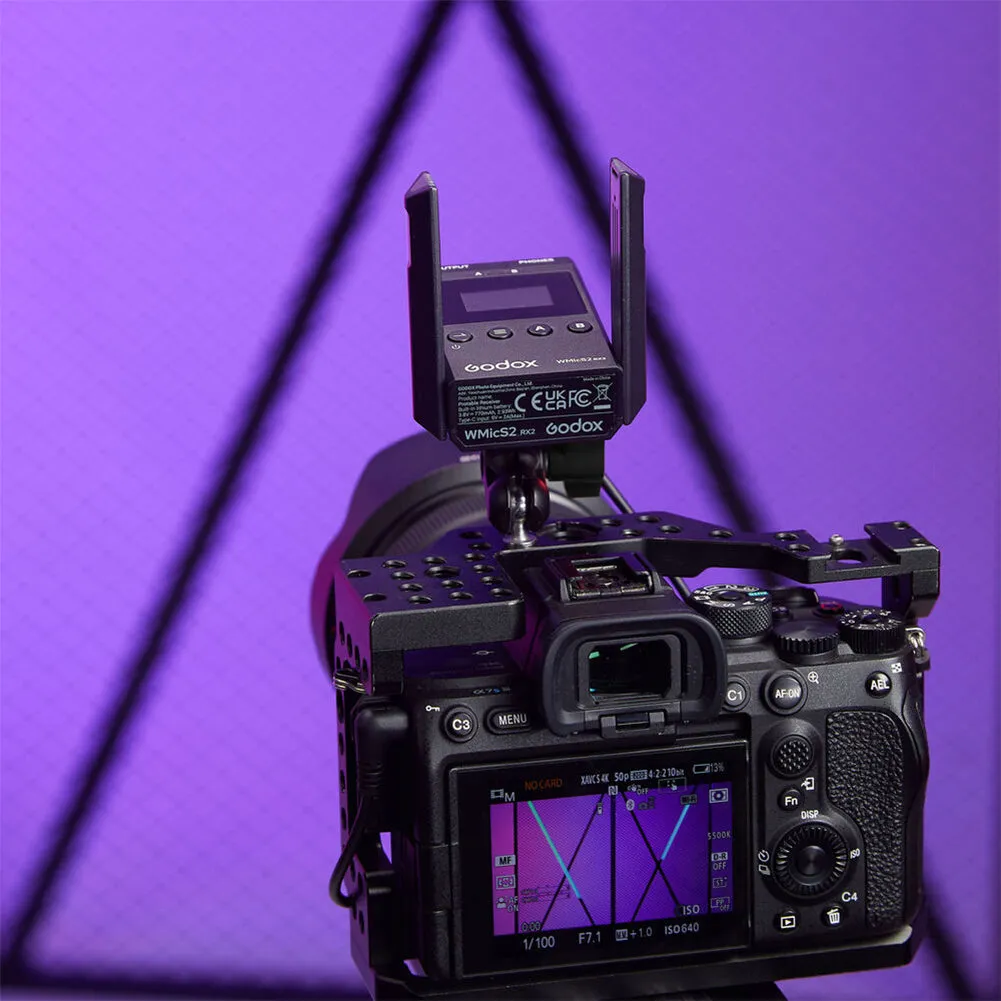

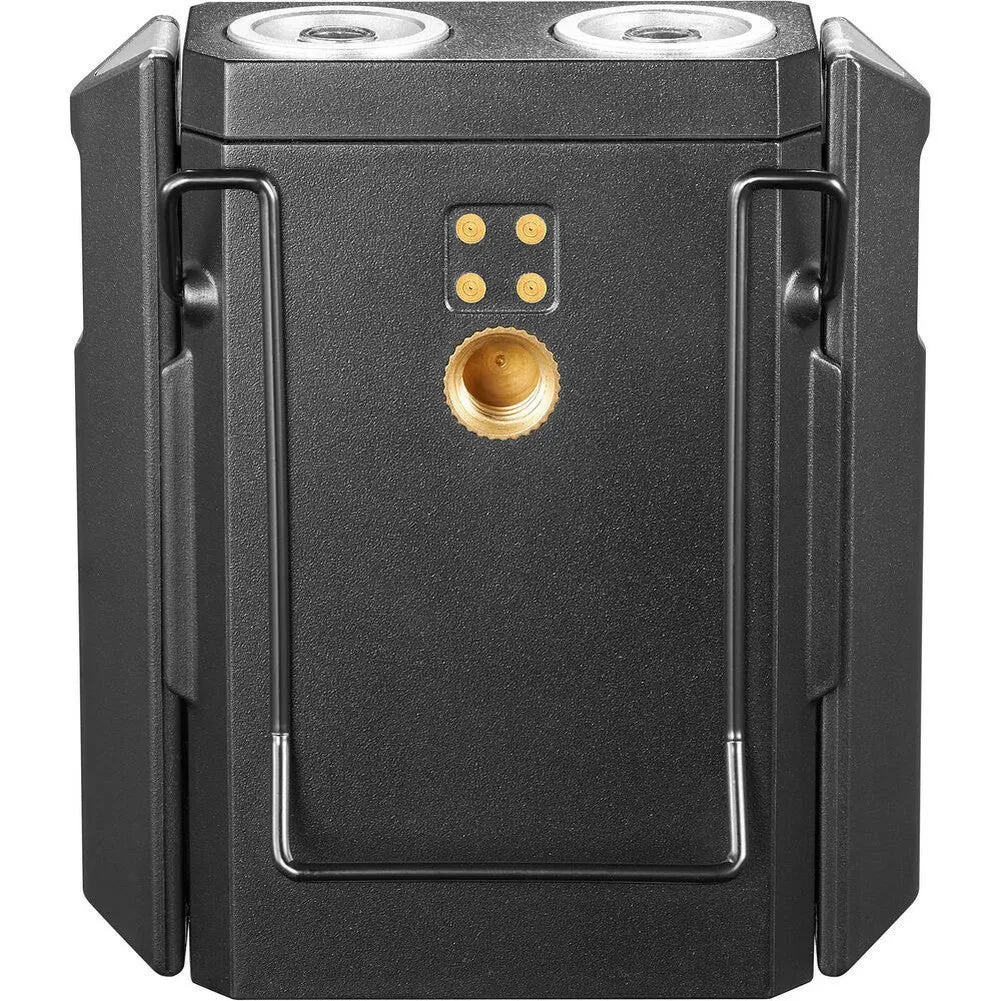

Included body clip, magnet mount, 1/4"-20 thread for camera mounting

Key Features

For Vlogs, Mobile Journalism
Works with WMixS2 Transmitters
96 Manually Selectable UHF Frequencies
Record up to 2 Wireless Mics to Camera
656' Maximum Range, OLED Screen
Mono/Stereo Modes, Headphone Port
Foldable Antennae, Body Clip
Built-In Lithium Battery, USB-C Input

Specifications

Wireless Technology	Analog UHF
Number of RF Channel Frequencies	96
Diversity	Non-Diversity
RF Frequency Band	514 to 596 MHz
RF Bandwidth	81 MHz
RF Channel Scanning	Manual
Max Operating Range	656.2' / 200 m (Line of Sight) 196.9' / 60 m (with Obstruction)
Max Transmitters per Band	1
Timecode Support	No
Mobile App Compatible	No *As of January, 2023: Check with manufacturer for the most up-to-date compatibility
Latency	12 ms
SNR	70 dB
THD	<3 %
Receiver Type	Camera-Mount / Beltpack
Mounting Options	Belt Clip, Shoe-Mount (with Included Hardware)
Antenna	2 x External
Number of Audio Channels	2
Audio I/O	1 x 1/8" / 3.5 mm TRS Unbalanced Output
Phantom Power Protection	None
Frequency Response	40 Hz to 18 kHz
Network I/O	None
Network Protocols	None
Word Clock I/O	None
USB/Lightning Connectivity	1 x USB-C Female (Charging)
Standalone Audio Interface Capable	No
Approximate RF Sensitivity	-95 dBm
Power Requirements	Battery
Battery Type	1 x Built-In Rechargeable
Internal Battery Capacity	770 mAh
Display & Indicators	OLED (Battery Status, Channel, Metering, Power, Sync, Transmitter Battery Status)
Operating Temperature	14 to 113°F / -10 to 45°C
Dimensions	2.6 x 2.3 x 0.8" / 65.8 x 58.4 x 20.5 mm
Weight	2.3 oz / 66 g

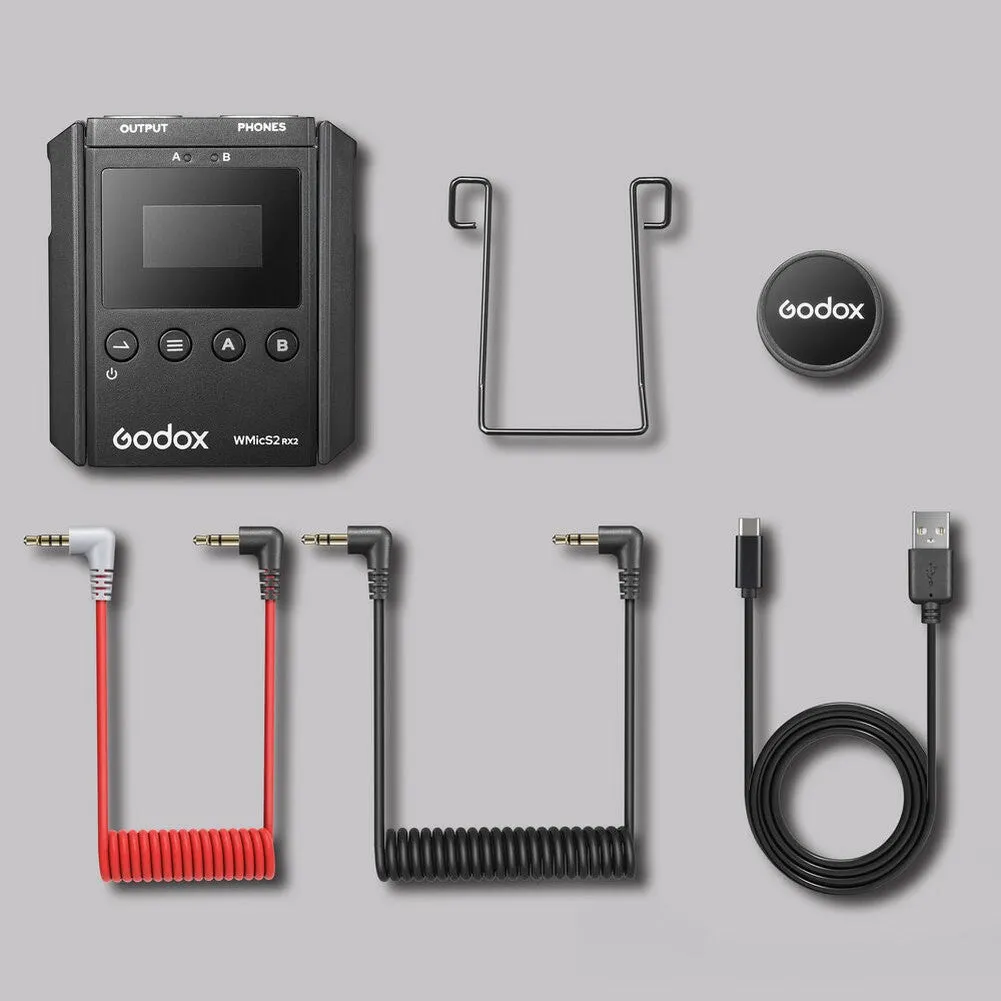

What's Included
1 x Godox WMicS2 Dual-Channel Wireless Receiver (514 to 596 MHz)
1 x USB-C Cable
1 x Back Clip
1 x Magnetic Mount
1 x 3.5mm TRS to TRRS Audio Cable
1 x 3.5mm TRS to TRS Audio Cable
