Features

• Available alert types include
• High alert
• Low alert
• Data unavailable alert
• On alert
• Off alert
• Circuit breaker tripped alert
• Course alert
• GPS quality alert
• Outside radius alert
• Inside radius alert
• Direction alert
• Timer alert

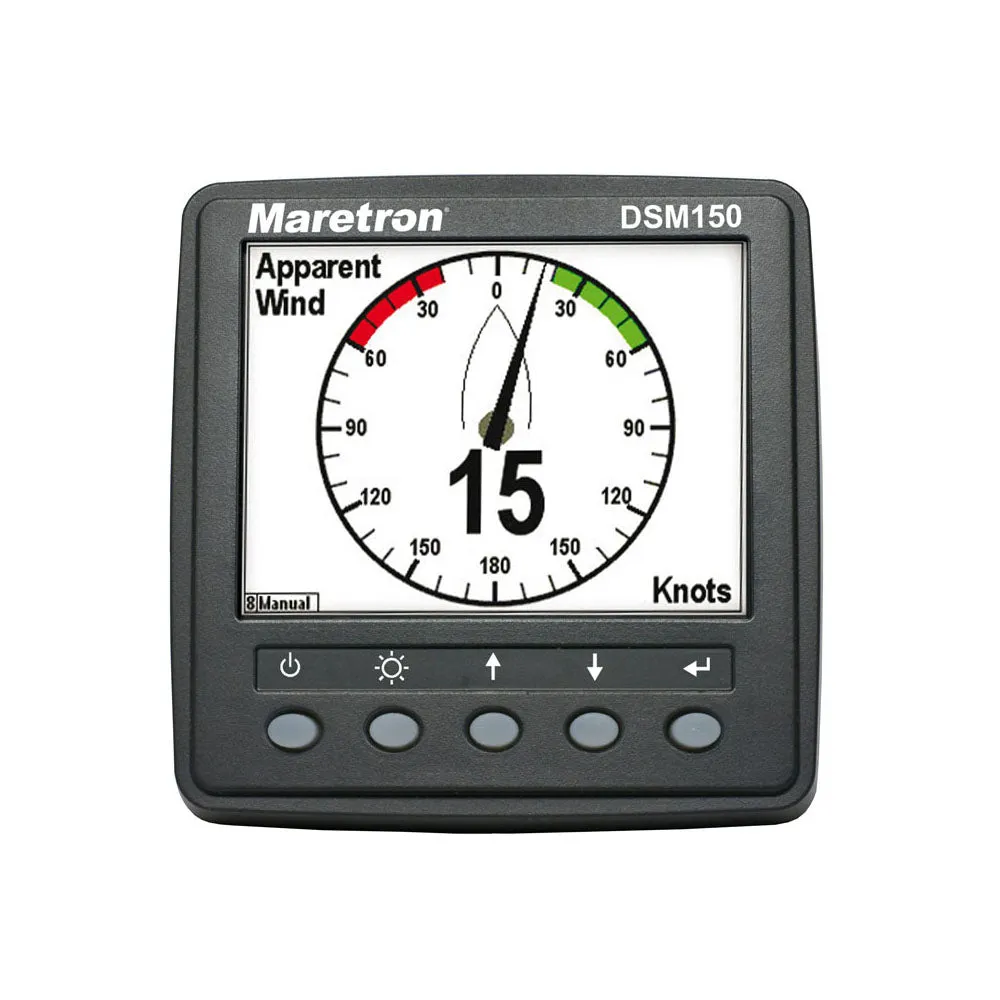

In addition to the monitoring and display capabilities the DSM150 features an alert / alarm package and electrical switching capability.

Unlike traditional single-display units DSM150 users can choose numeric gauge bar or graph formats in single or multiple displays with cycling options possible for a wide range of favorite data. These multiple display options conserve mounting space and reduce overall system cost.

The DSM150 will directly connect with any NMEA 2000® network and with the exception of AIS data will display any or all information captured throughout the vessel. Various audio and visual alarms are also programmable. The DSM150 displays a multitude of information including AC power anchor status battery depth electrical distribution engine environment fuel management GPS heading navigation pressure/vacuum rudder speed status indicators tanks temperature time transmission water makers weather wind and more. The DSM150 includes a comprehensive flexible alert capability. Configure audio and visual alerts on virtually any data that the DSM150 is capable of monitoring.
