Product Details
＋
Description

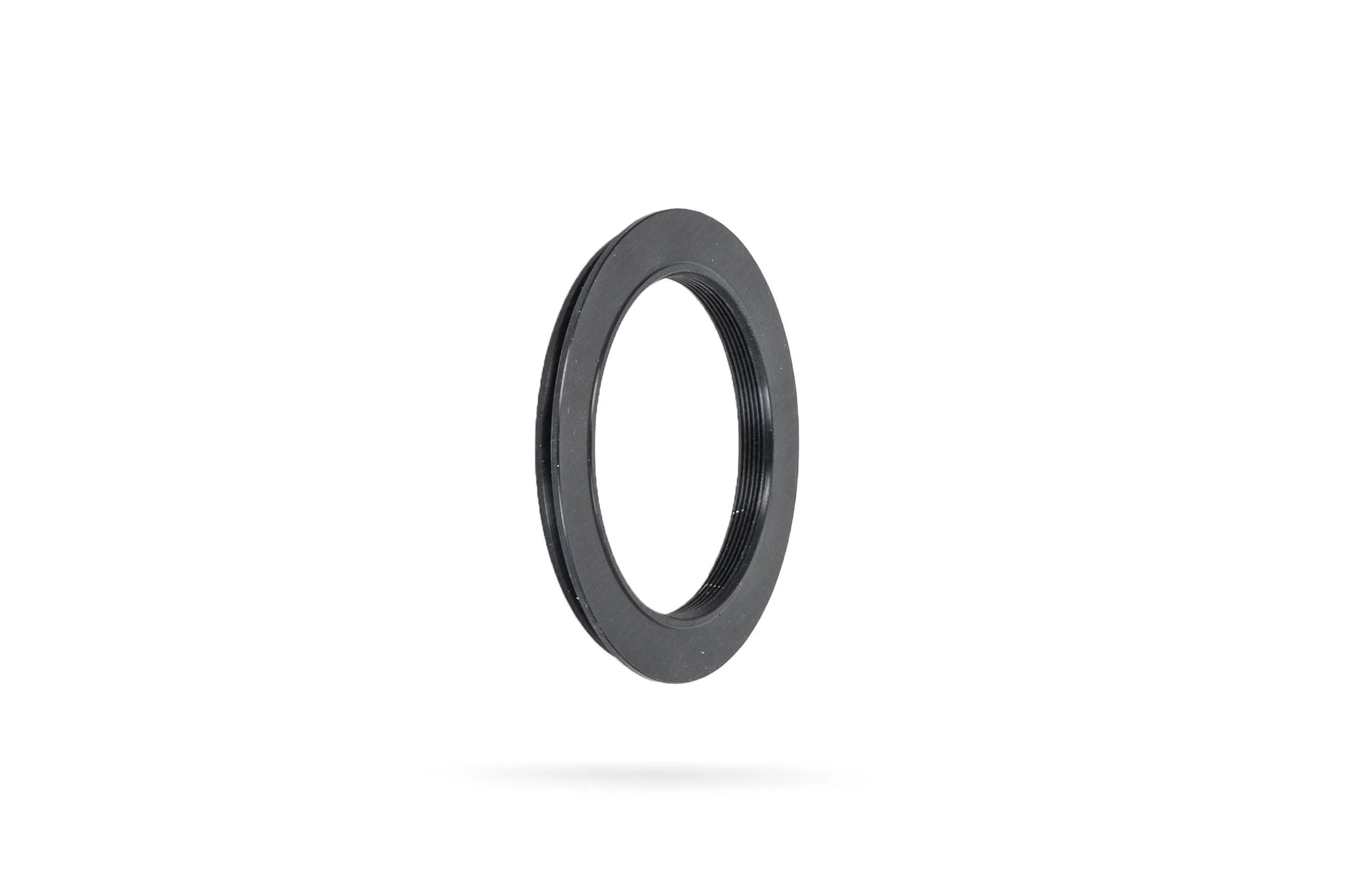

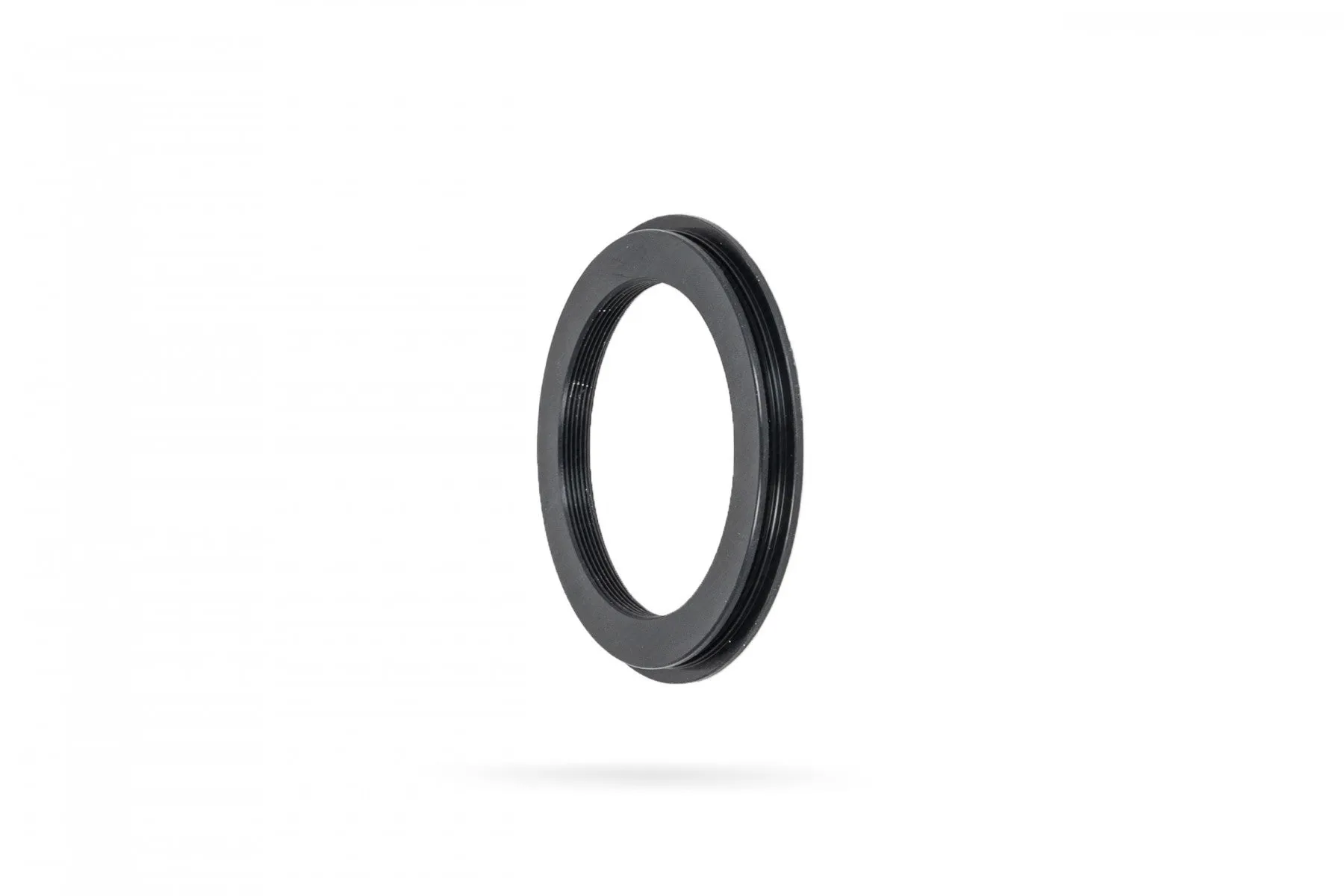

- Baader UFC S70 / M54 (f) Adapter
- Telescope-sided with M54 x 0,75 inner thread
- Camera-sided with S70 dovetail
- Can be adapted via the S70 dovetail to the Baader UFC Base (Filter Chamber) telescope-sided S70 dovetail receptor (optical height: 13 mm) (#2459110) as well as to UFC extensions
- Allows the use of the UFC system instead of M54 filter wheels on many common cameras with M54 x 0.75 thread. For this the Baader UFC Base (Filter Chamber) telescope-sided S70 dovetail receptor (optical height: 13 mm) (#2459110) and the camera-side M54 adapter Baader UFC M54x0,75 (m) Camera-Adapter (optical height: 2 mm) (#2459117) are additionally required.
Specifications
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2459171 |
| EAN CODE | 4047825051882 |
| NET WEIGHT (KG) | 0.03 |
| OPTICAL LENGTH (MM) | 1.5 |
| INNER DIAMETER / CLEAR APERTURE (MM) | 51 mm |
| OUTER DIAMETER | 72 mm |
| INNER CONNECTION (LENS SIDED) | Thread, M54 x 0,75 |
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Dovetail ring, S70 |
| TYPE OF ADAPTER | Changer Adapter |
