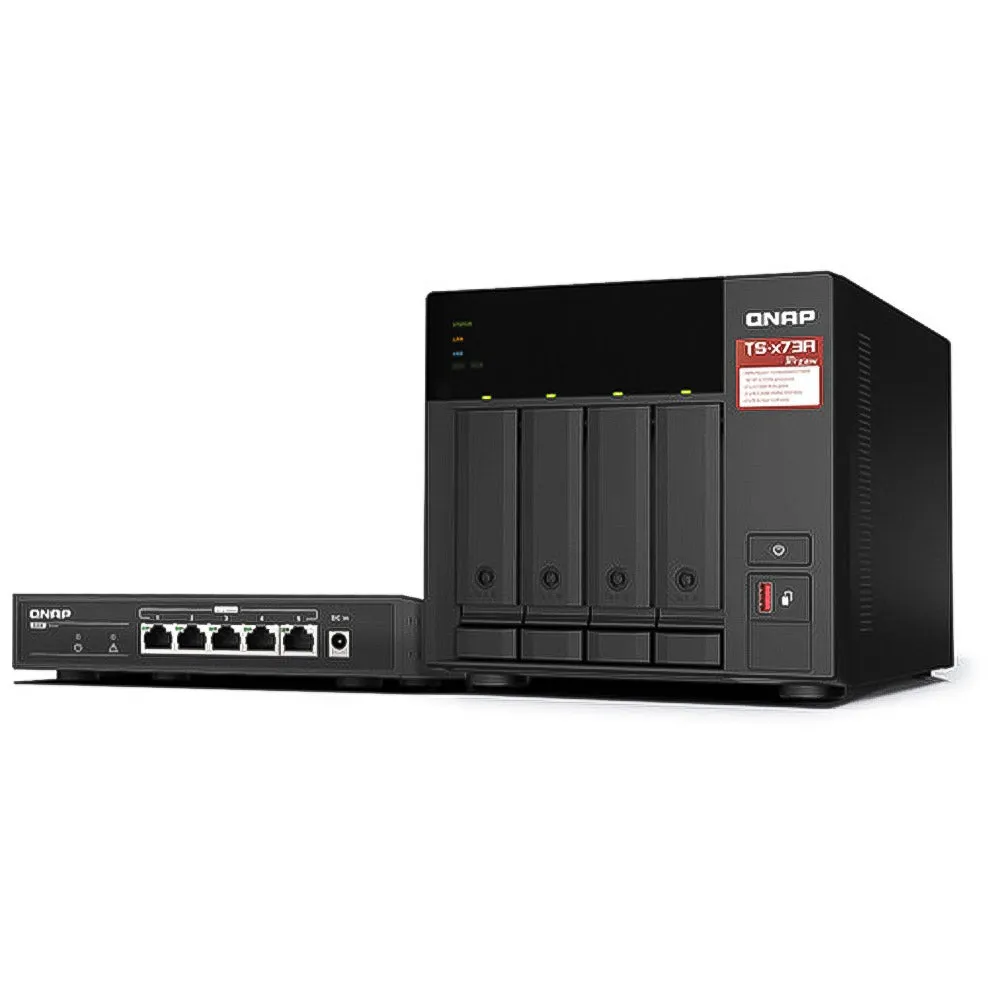

Product Details
＋

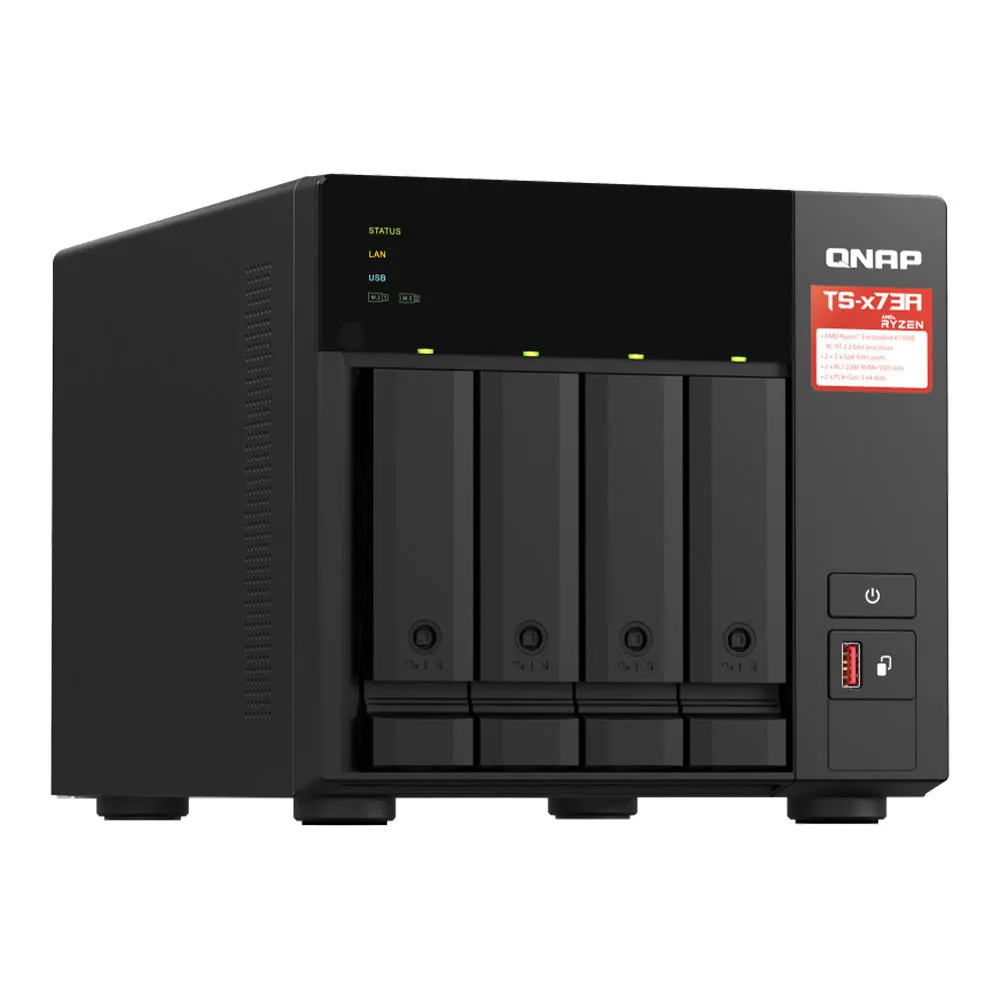

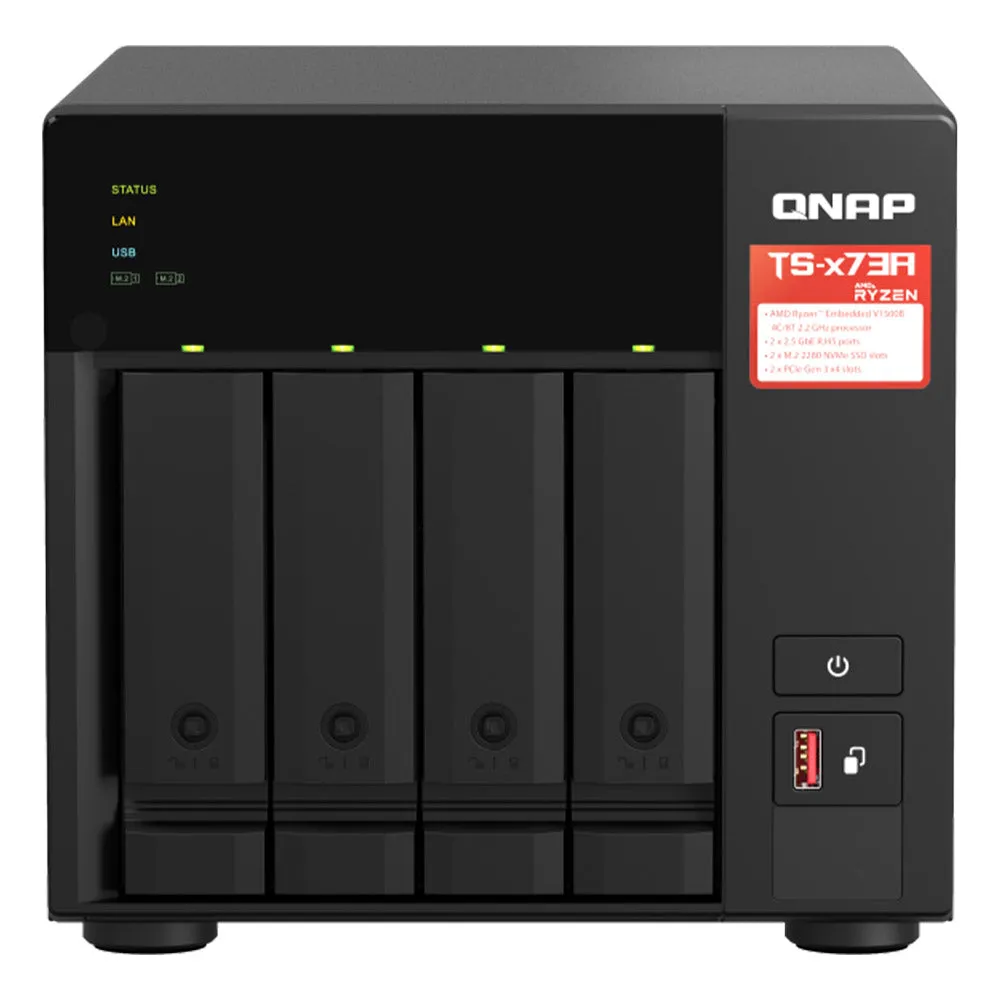

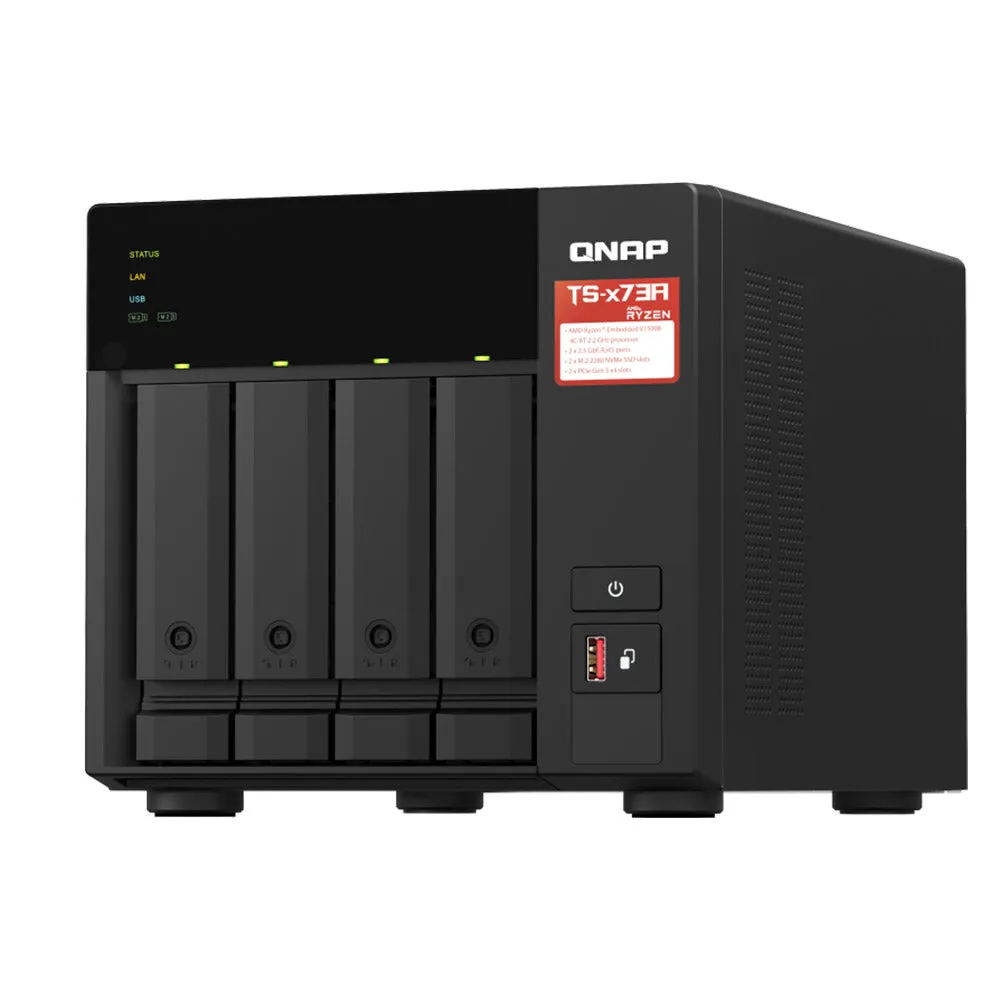

- Brand: QNAP
- Model: TS-473A
- Type: Cloud Storage NAS Enclosure
- Drive Bays: 4
- Drive Type: 4x 3.5-inch SATA 6Gb/s, 3Gb/s
- Processor: AMD Ryzen Embedded V1500B 4-core/8-Thread 2.2 GHz Processor
- RAM: 8GB SODIMM DDR4
- Memory Capacity: 64GB (2 x 32GB)
- Flash Memory: 5GB

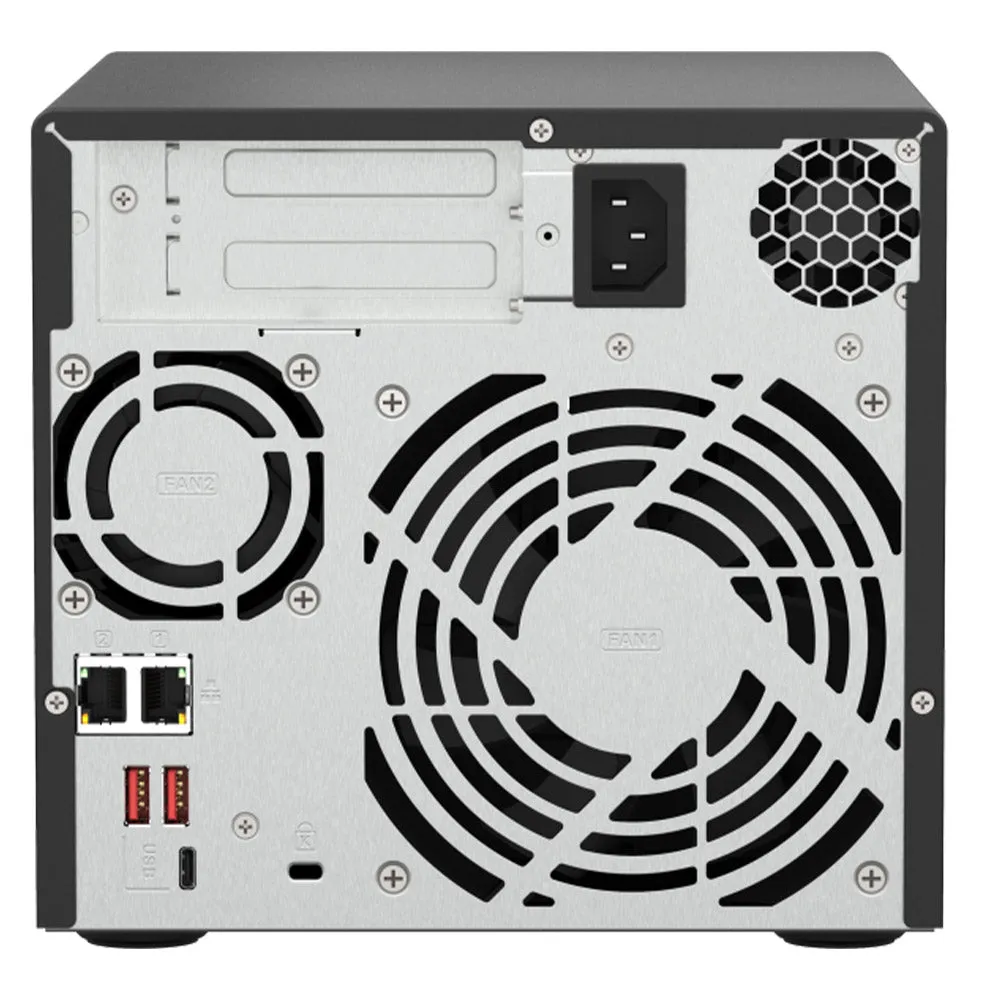

- Interface: 2x GbE LAN Ethernet, 3x USB 3.2 Gen 2 Type A, 1x Type-C 3.2 Gen 1, 2x PCIe Gen 3 x4, Kensington Security Slot
- Volume Size: Max. 250 TB
- Volume Number: Max. 128
- Supported RAID Type: JBOD, Single, RAID 0, 1, 5, 6, 10
- Concurrent Connections: Max. 2000
- Local User Accounts: Max. 4096
- Local Groups: Max. 512
- Shared Folder: Max. 512
- VPN Connections: Max. 100
- Buttons: Power, Reset, USB Copy
- Adjustable LED Indicators: Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2
- Fan Quantity: 2Pcs (1x System Fan) - (1x CPU Fan)
-
Fan Size: System Fan: 120mm - CPU Fan: 60mm
-
Temperature: Operating: 0 - 40°C - Storage: -20 - 70°C - Humidity: 5% to 95% RH
-
Power Consumption: 29.792W (Operating Mode), 19.576W (HDD Sleep Mode)
- Adapter Power Supply: 250W
- Input Power: 100V To 240V AC
- Power Frequency: 50-60Hz
- Supported Browsers: Chrome, Firefox, Edge, Safari
- Compatible With: PC, Laptop, Mobile, Camera
- Dimensions: 7.09 x 7.85 x 11.01 Inch
-

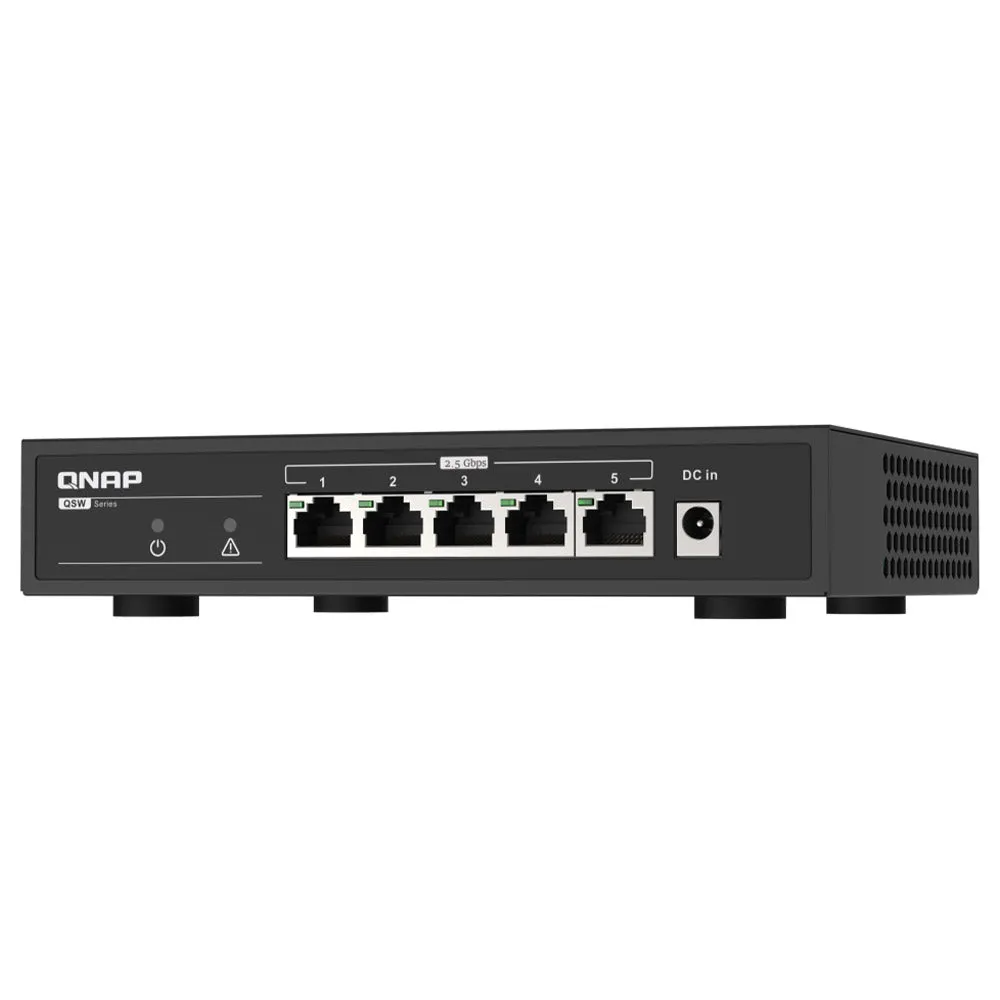

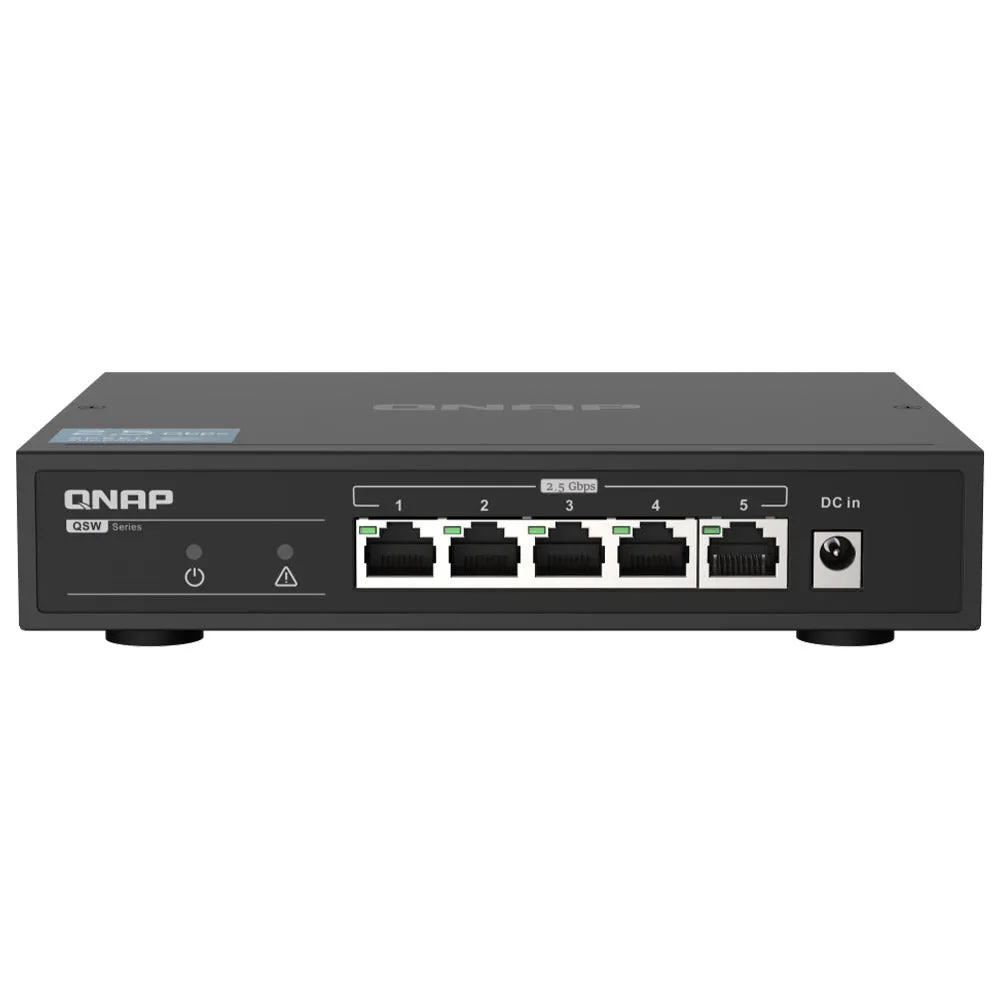

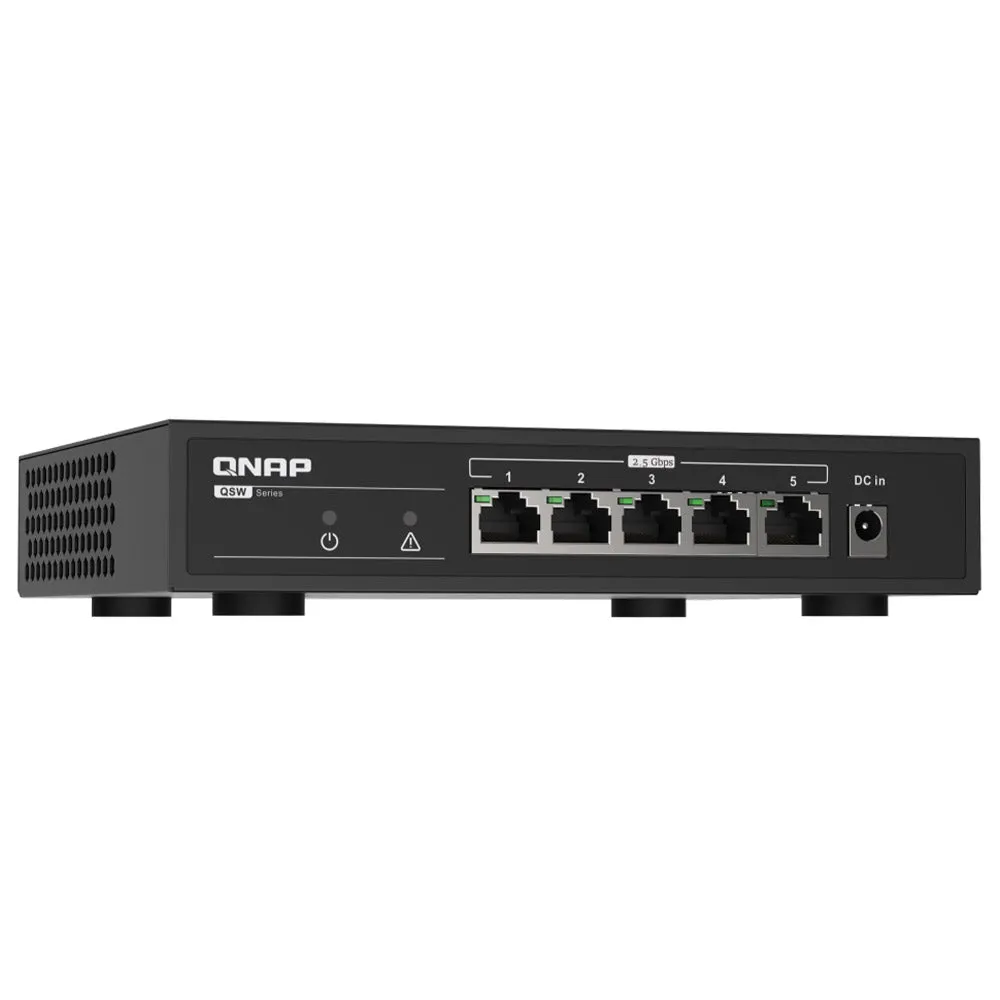

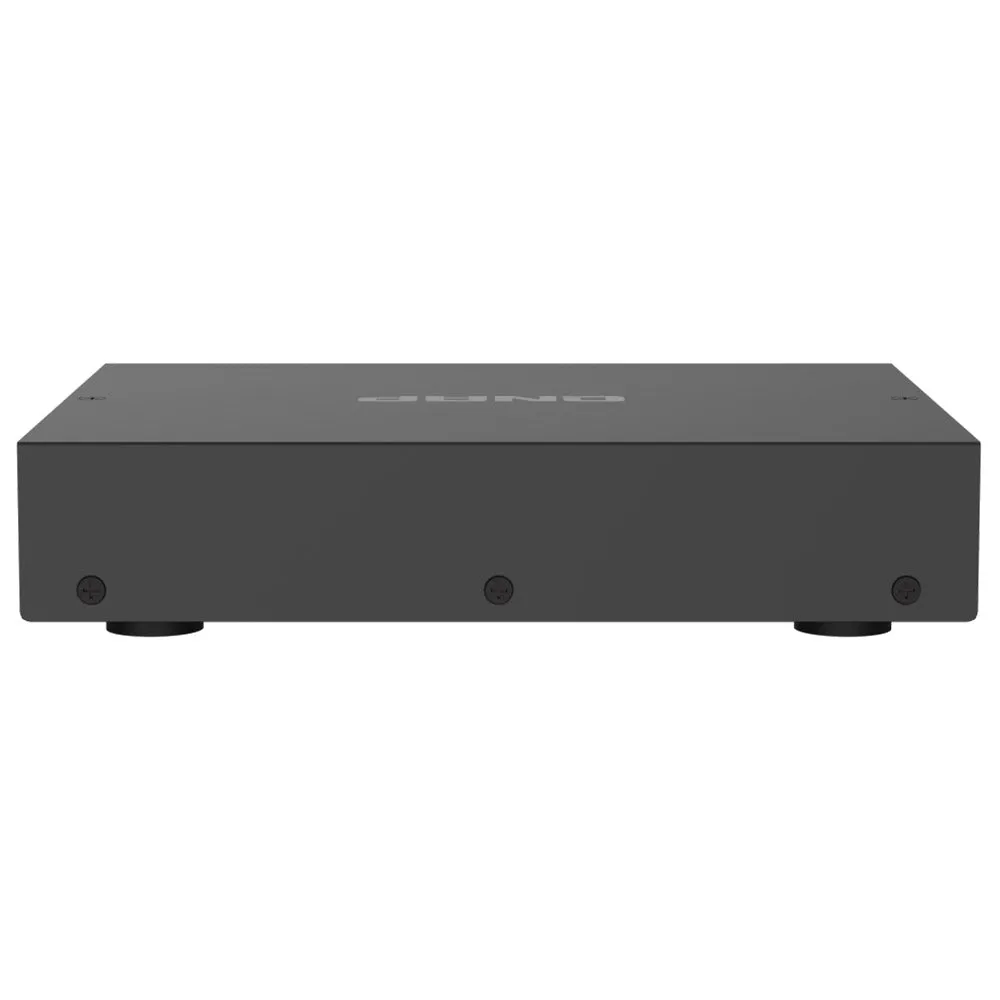

Unmanaged Switch
- Model: QSW-1105-5T
- Interface: 5x 2.5GbE (RJ45)
- LED Indicators: Power/Status, Loop, Speed/Link/Activity
- Switching Capacity: 25Gbps
- Standards: IEEE 802.3 Ethernet, IEEE 802.3u 100BASE-T, IEEE 802.3ab 1000BASE-T, IEEE 802.3bz 2.5GBase-T, IEEE 802.3x Full-Duplex Flow Control
- Power Supply: DC12V (Adapter)
- Power Consumption: 12W
- Operating Temperature: 0˚C ~ 40°C
- Operating Humidity: 10%~90%, non-condensing
- Dimensions: 34 x 180 x 145mm
- Warranty: 6 Months
