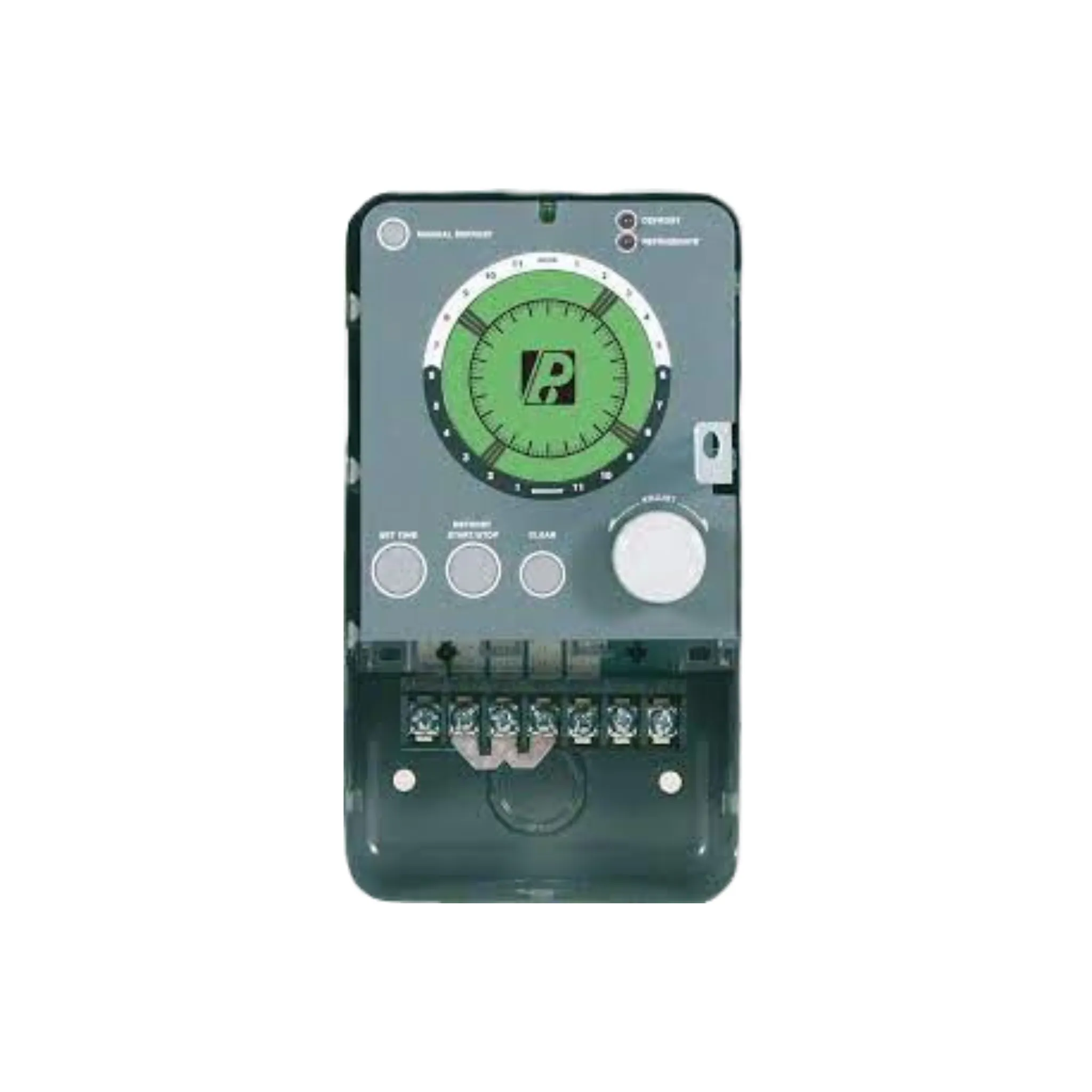

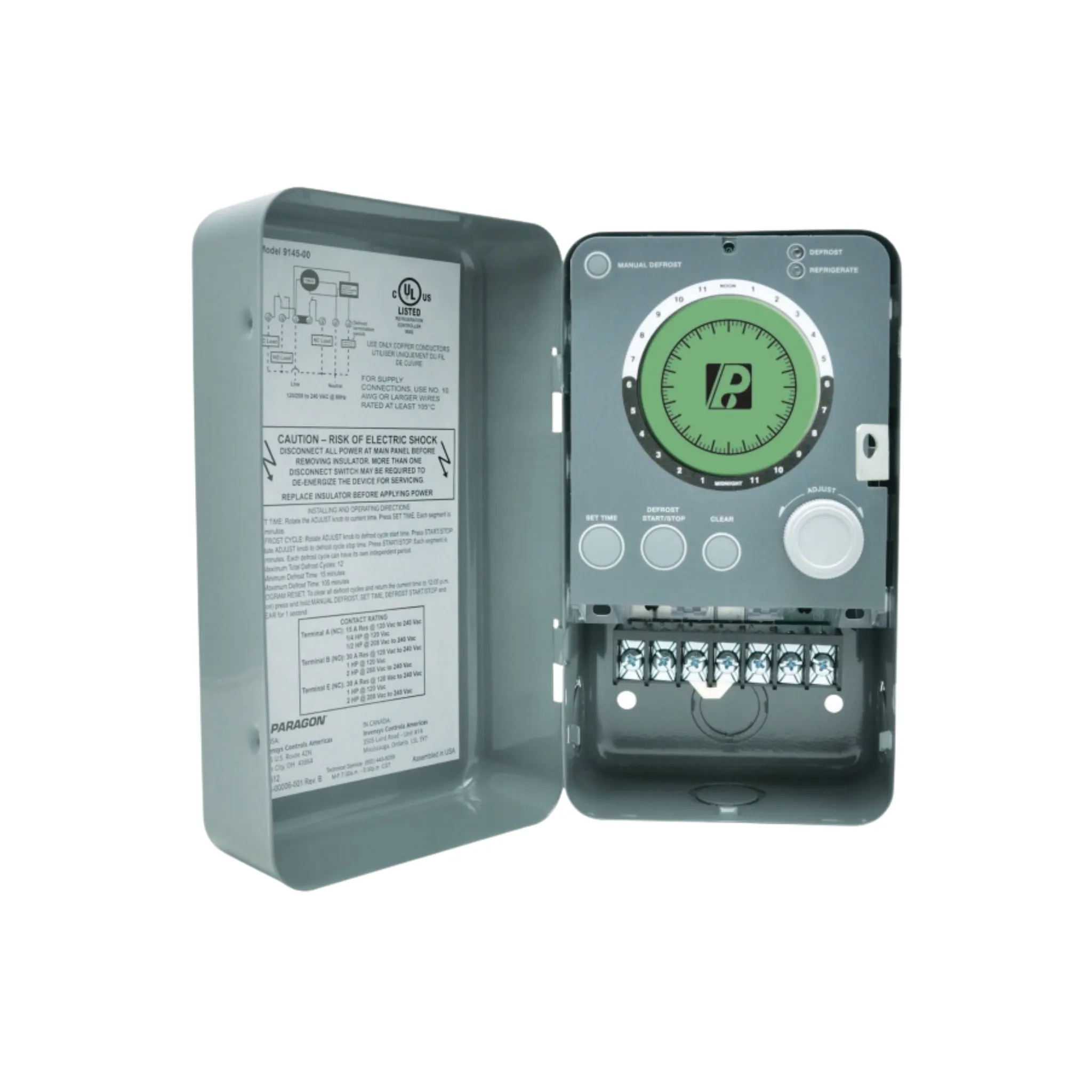

The Paragon 9045-00 and 9145-00 Universal Defrost Timers (UDT) are the only multi-voltage defrost timers engineered to industry refrigeration standards. Designed to withstand the most rigorous refrigeration applications, this control offers a real-time clock and 100 hours of power loss protection for both time and defrost schedules. Mechanism-only models also are available to fit in standard defrost timer enclosures.

Features:

Rated to 30,000 cycles for refrigeration controllers with switches
Easy programming, easy set-up, set time, set defrost start and defrost end
Initiate 15 minute manual defrost
100 hours of power loss protection for both time and defrost schedule
Real-time clock
Lighted display shows defrost start time and duration
System status indicators

Specifications:

Manufacturer: Paragon
Manufacturer Part Number: 9145-00
Product Type: Defrost Timer
Material: Metal
Voltage Rating: 120/208-240 V
Frequency Rating: 50/60 Hz
Current Rating: 6.0 A
Operating Temperature: -40 to 131 Degrees F
Switch Type: SPDT
Contact Configuration: 2 Normally Open ,1 Normally Closed
Enclosure Rating: NEMA-1
Dimensions: 4.75"" x 9.05"" x 5.0""
Weight: 3.01 lb.
