Description
- Used to adjust the working distance of larger cameras and similar accessories with M54 thread
- Telescope side M54x0.75 female thread, 3.5 mm depth
- Eyepiece-/camera side M54x0.75 male thread, 3 mm length

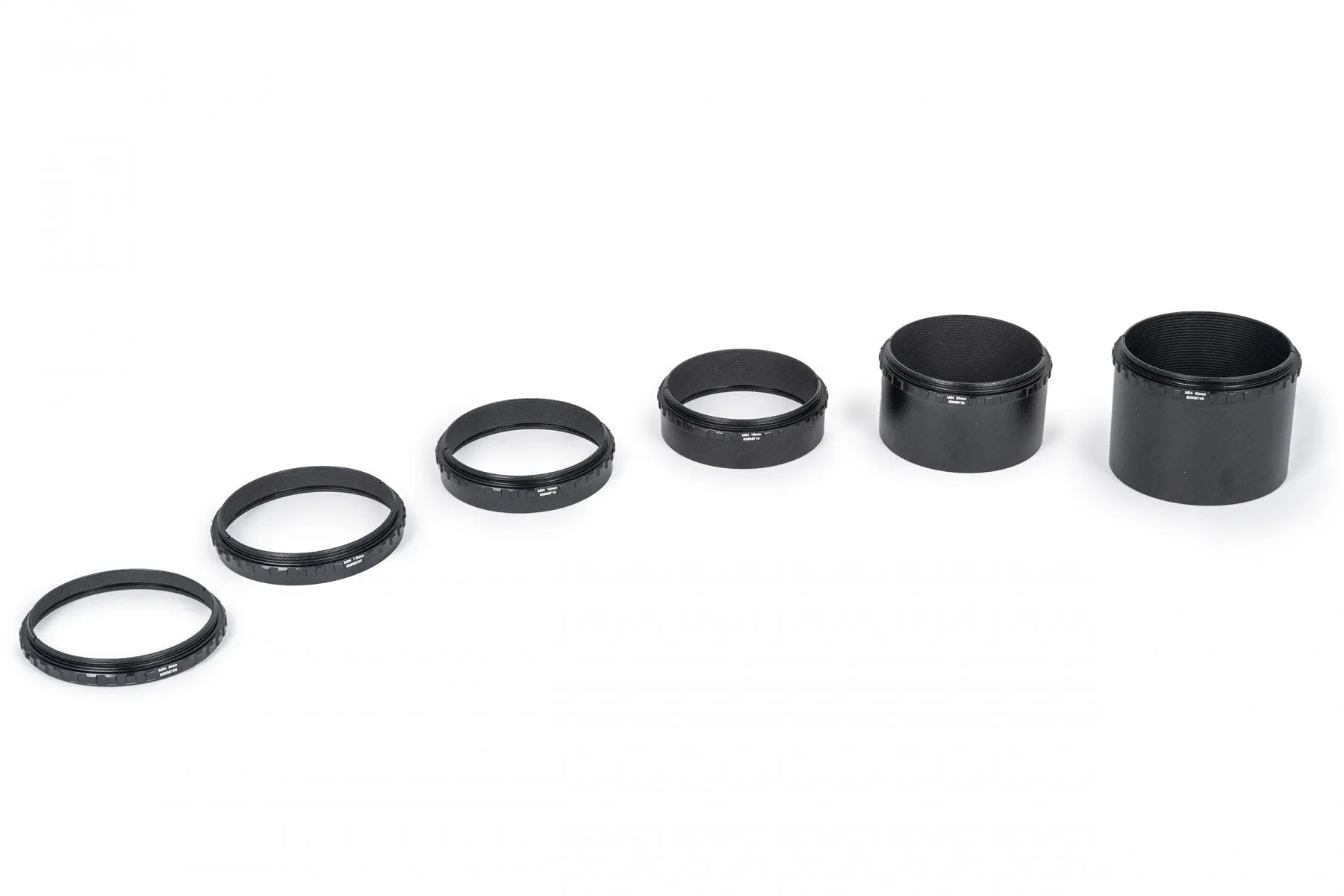

- High-quality Aluminum, available in different lengths 5mm, 7.5mm, 10mm, 15mm, 30mm and 40mm
Modern cameras are usually characterised by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5 mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2, M48 and M54 parts are delivered with the new 3 mm standard.
Specifications

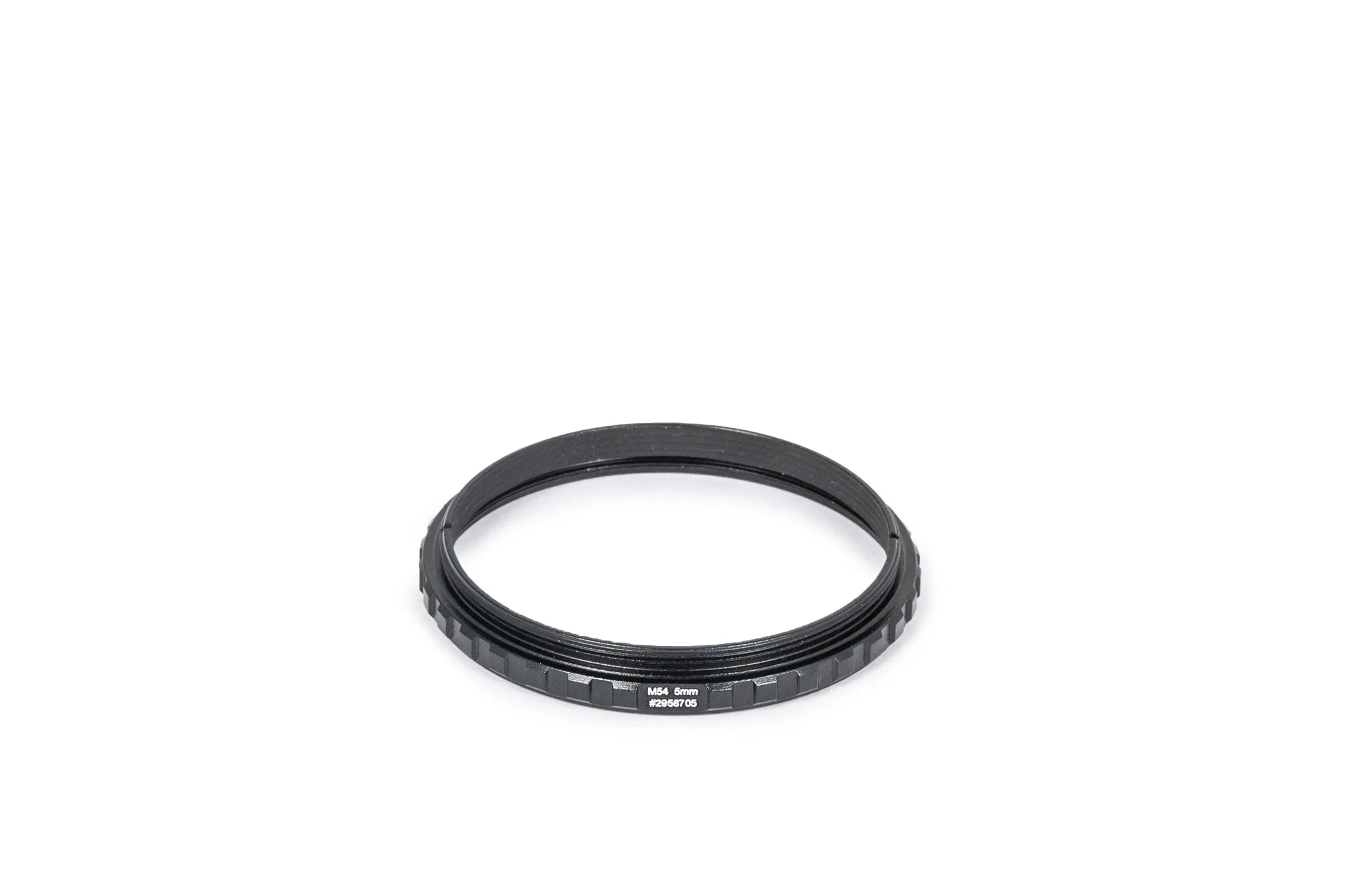

5 mm
| MANUFACTURER | Baader Planetarium |
|---|
| SKU (#) | 2958705 |
|---|
| EAN CODE | 4047825052223 |
|---|
| NET WEIGHT (KG) | 0.006 |
|---|
| OPTICAL LENGTH (MM) | 5 |
|---|
| INNER DIAMETER / CLEAR APERTURE (MM) | 51 mm |
|---|
| OUTER DIAMETER | 59 mm |
|---|
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | M54 x 0.75 |
|---|
| INNER CONNECTION (LENS SIDED) | M54 x 0.75 |
|---|
| TYPE OF ADAPTER | Extension |
|---|
| ADAPTERS FAMILY | M54 System |
|---|

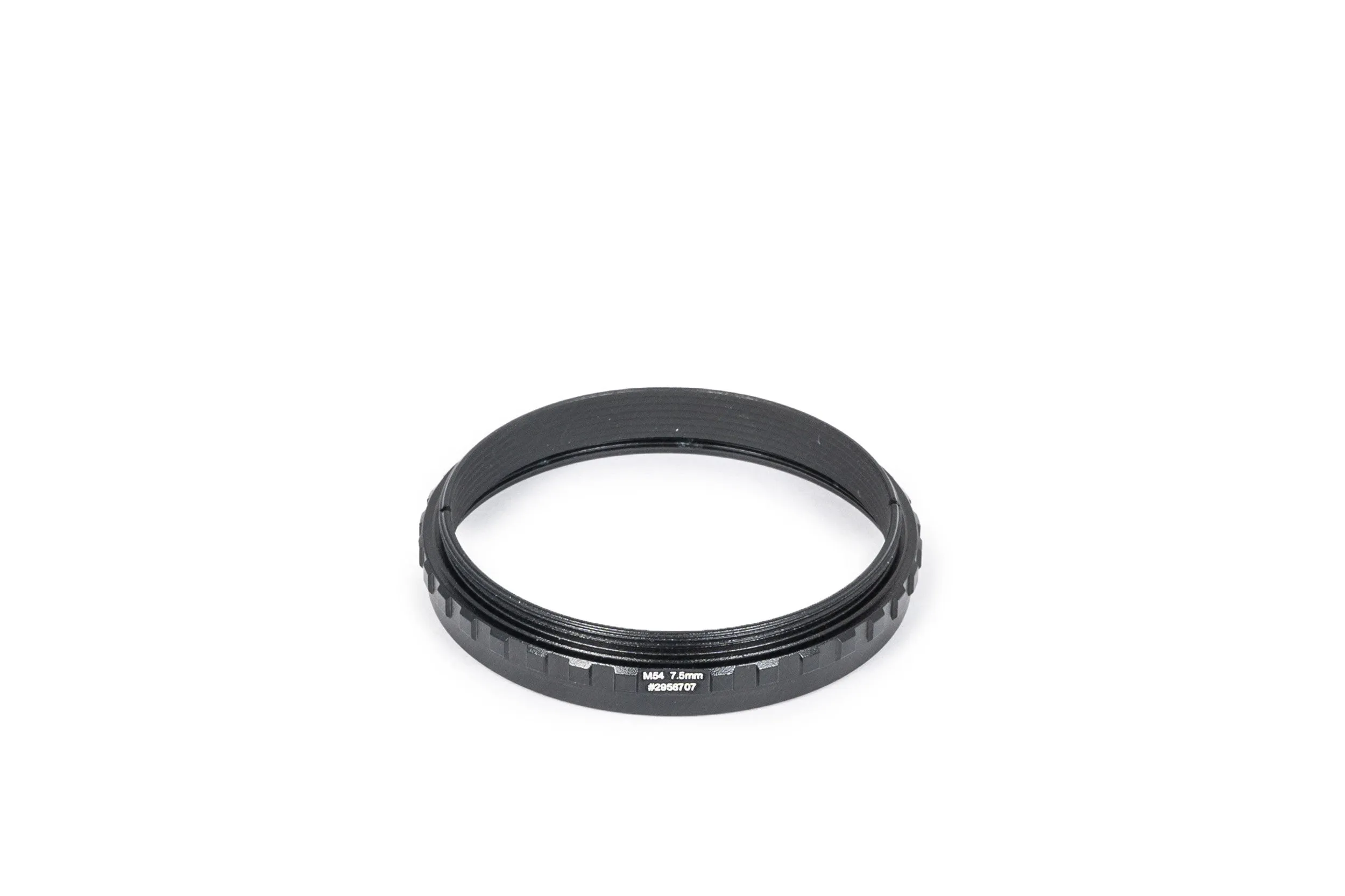

7.5 mm
| MANUFACTURER | Baader Planetarium |
|---|
| SKU (#) | 2958707 |
|---|
| EAN CODE | 4047825052230 |
|---|
| NET WEIGHT (KG) | 0.009 |
|---|
| OPTICAL LENGTH (MM) | 7,5 |
|---|
| INNER DIAMETER / CLEAR APERTURE (MM) | 51 mm |
|---|
| OUTER DIAMETER | 59 mm |
|---|
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | M54 x 0.75 |
|---|
| INNER CONNECTION (LENS SIDED) | M54 x 0.75 |
|---|
| TYPE OF ADAPTER | Extension |
|---|
| ADAPTERS FAMILY | M54 System |
|---|

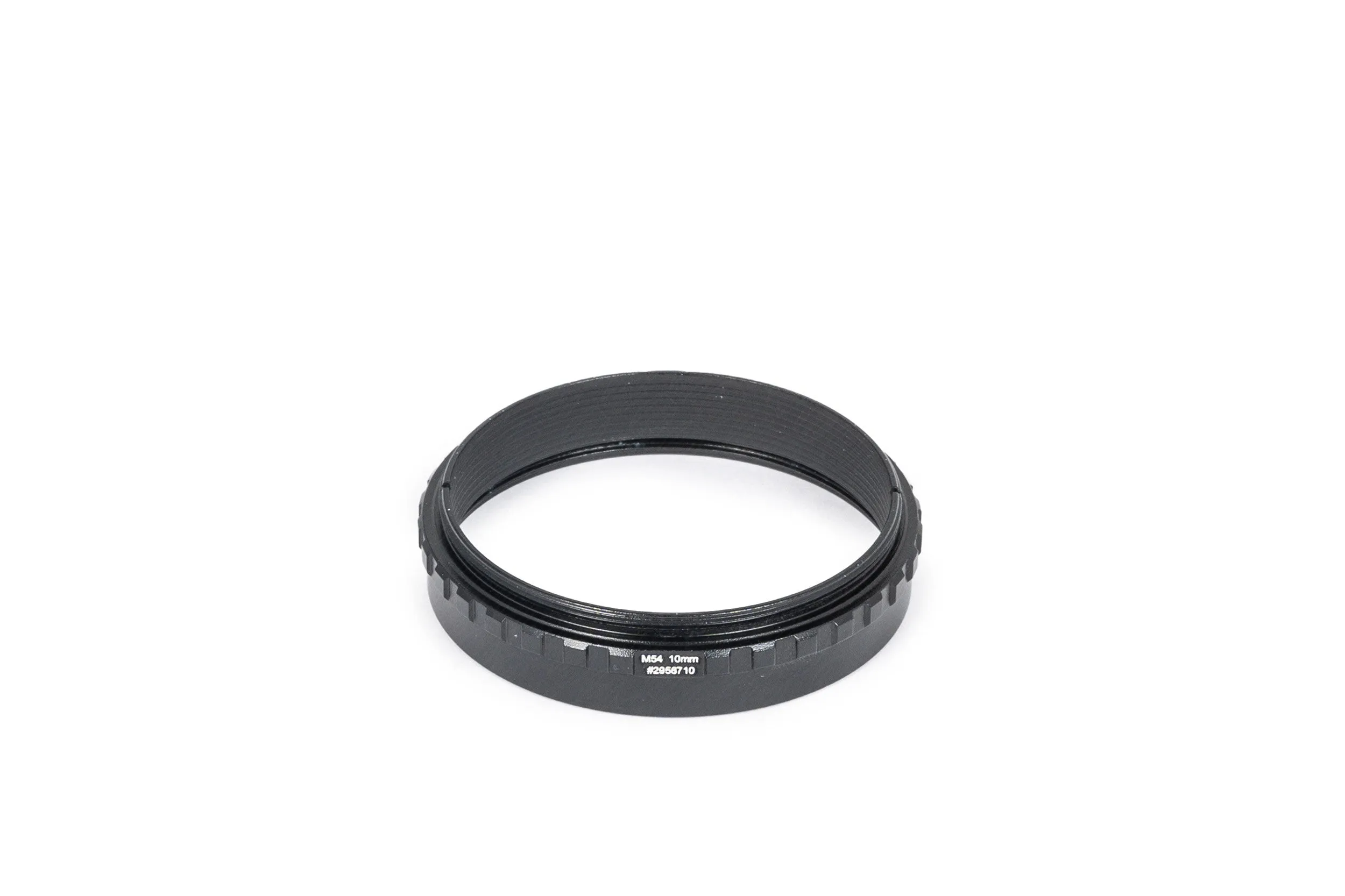

10 mm
| MANUFACTURER | Baader Planetarium |
|---|
| SKU (#) | 2958710 |
|---|
| EAN CODE | 4047825052247 |
|---|
| NET WEIGHT (KG) | 0.012 |
|---|
| OPTICAL LENGTH (MM) | 10 |
|---|
| INNER DIAMETER / CLEAR APERTURE (MM) | 51 mm |
|---|
| OUTER DIAMETER | 59 mm |
|---|
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | M54 x 0.75 |
|---|
| INNER CONNECTION (LENS SIDED) | M54 x 0.75 |
|---|
| TYPE OF ADAPTER | Extension |
|---|
| ADAPTERS FAMILY | M54 System |
|---|

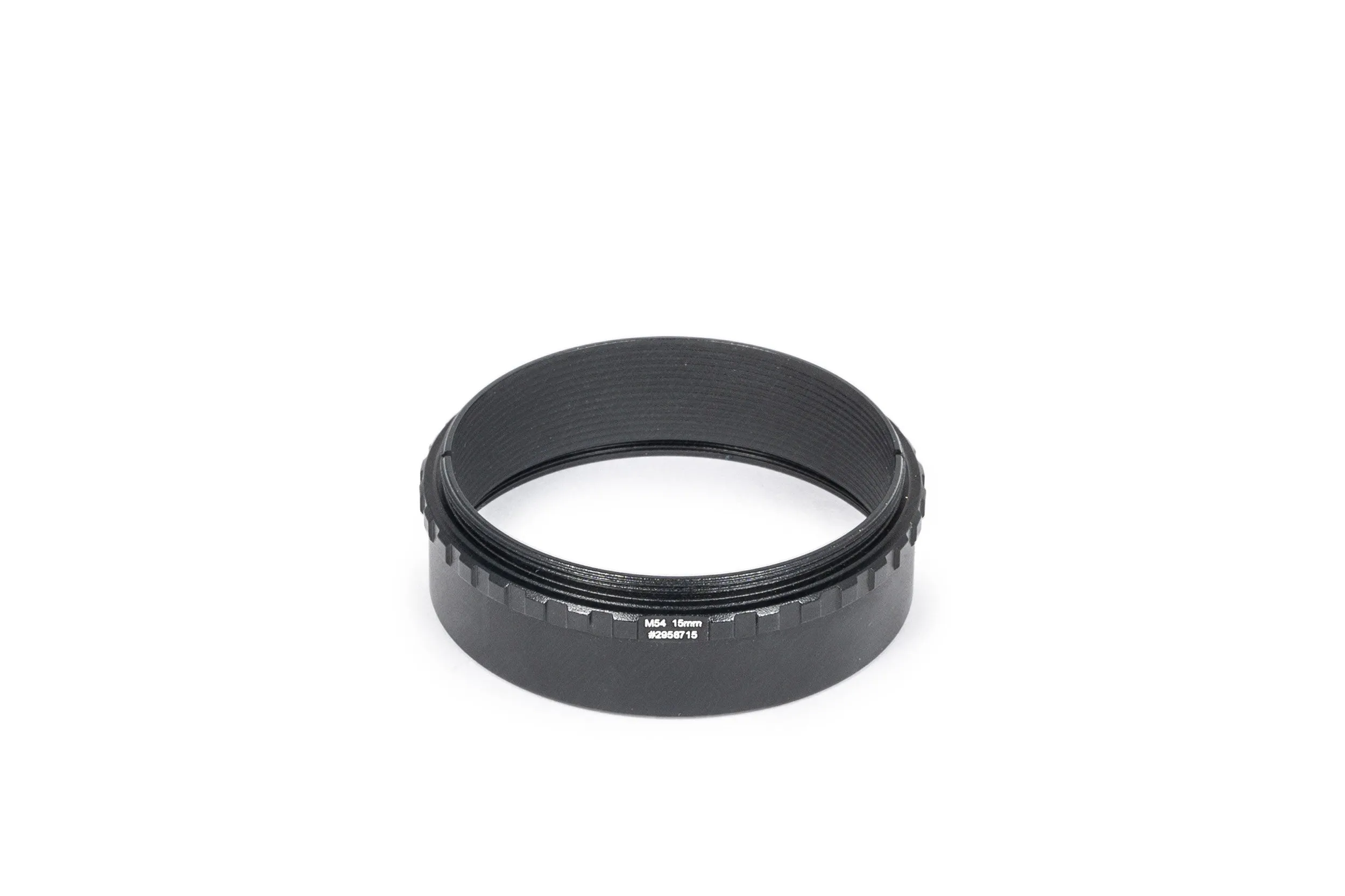

15 mm
| MANUFACTURER | Baader Planetarium |
|---|
| SKU (#) | 2958715 |
|---|
| EAN CODE | 4047825052254 |
|---|
| NET WEIGHT (KG) | 0.019 |
|---|
| OPTICAL LENGTH (MM) | 15 |
|---|
| INNER DIAMETER / CLEAR APERTURE (MM) | 51 mm |
|---|
| OUTER DIAMETER | 59 mm |
|---|
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | M54 x 0.75 |
|---|
| INNER CONNECTION (LENS SIDED) | M54 x 0.75 |
|---|
| TYPE OF ADAPTER | Extension |
|---|
| ADAPTERS FAMILY | M54 System |
|---|

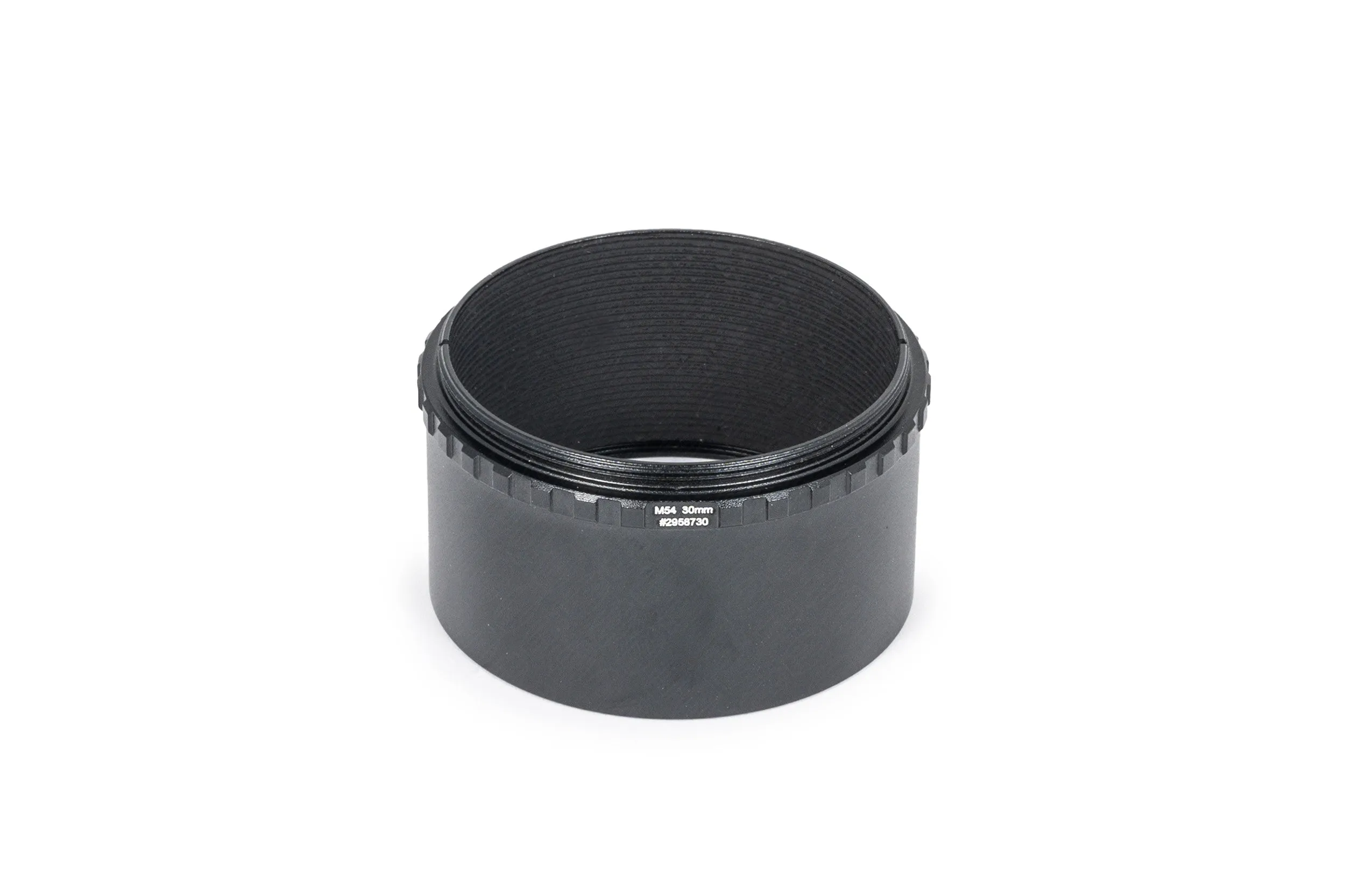

30 mm
| MANUFACTURER | Baader Planetarium |
|---|
| SKU (#) | 2958730 |
|---|
| EAN CODE | 4047825052261 |
|---|
| NET WEIGHT (KG) | 0.040 |
|---|
| OPTICAL LENGTH (MM) | 30 |
|---|
| INNER DIAMETER / CLEAR APERTURE (MM) | 51 mm |
|---|
| OUTER DIAMETER | 59 mm |
|---|
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | M54 x 0.75 |
|---|
| INNER CONNECTION (LENS SIDED) | M54 x 0.75 |
|---|
| TYPE OF ADAPTER | Extension |
|---|
| ADAPTERS FAMILY | M54 System |
|---|
40 mm
| MANUFACTURER | Baader Planetarium |
|---|
| SKU (#) | 2958740 |
|---|
| EAN CODE | 4047825052278 |
|---|
| NET WEIGHT (KG) | 0.053 |
|---|
| OPTICAL LENGTH (MM) | 40 |
|---|
| INNER DIAMETER / CLEAR APERTURE (MM) | 51 mm |
|---|
| OUTER DIAMETER | 59 mm |
|---|
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | M54 x 0.75 |
|---|
| INNER CONNECTION (LENS SIDED) | M54 x 0.75 |
|---|
| TYPE OF ADAPTER | Extension |
|---|
| ADAPTERS FAMILY | M54 System |
|---|
