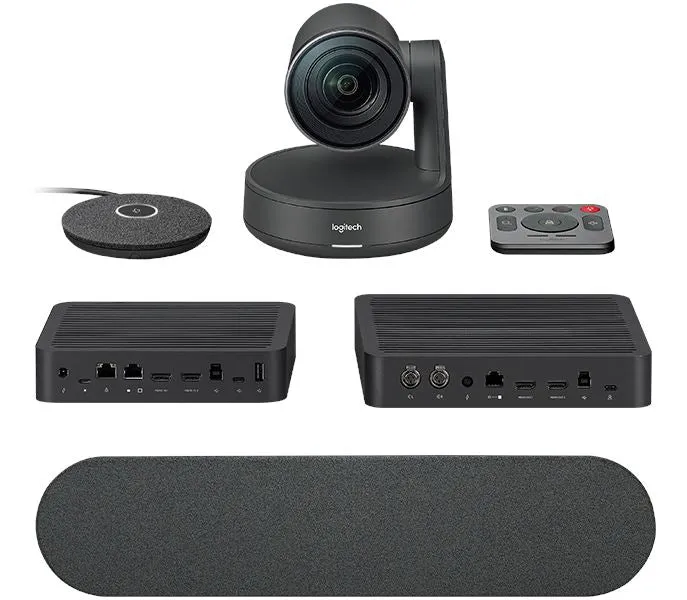

Premium Ultra-HD ConferenceCam system with automatic camera control

• RightSense™ technology automates a better user experience
• Modular audio for full coverage of medium to very large rooms
• Premium components and sleek industrial design

DIMENSIONS:

Rally Camera
Height x Width x Depth: 182.5 mm x 152 mm x 152 mm
Rally Speaker
Height x Width x Depth: 103 mm x 449 mm x 80 mm
Rally Mic Pod
Height x Width x Depth: 21 mm x 102 mm x 102 mm
Rally Display Hub
Height x Width x Depth: 40 mm x 206 mm x 179 mm
Rally Table Hub
Height x Width x Depth: 40 mm x 176 mm x 138 mm

SYSTEM REQUIREMENTS:
Operating Systems

• Windows® 7, Windows 8.1 or Windows 10
• macOS 10.10 or higher Resolutions higher than 1080p
• Windows 8.1 or higher or macOS 10.10 or higher
• USB 3.0 port and Type C cable Compatible software

TECHNICAL SPECIFICATIONS
RALLY CAMERA

• Ultra-HD imaging system supports:
• 4 K, 1440 p, 1080 p, 900 p, 720 p, and SD at 30 fps
• 1080 p, 720 p at 30 fps and 60 fps
• Smooth motorized pan, tilt and zoom
• Pan: ±90°
• Tilt: 50° / -90°
• 15x HD zoom
• Field of View:
• Diagonal: 90°
• Horizontal: 82.1°
• Vertical: 52.2
• Autofocus
• 3 camera presets
• Kensington security slot
• Video mute/unmute LED indicator
• Standard tripod thread
• Lens parks at -90° in sleep mode for assured privacy

RALLY MIC POD

• Pickup range: 4.5 m diameter
• Four omnidirectional microphones forming eight acoustic beams
• AEC (Acoustic Echo Cancellation)
• VAD (Voice Activity Detector)
• Background noise suppression
• Mute button with LED status indicator
• Captive 2.95 m 12-pin cable
• Daisy chain up to 7 Rally Mic Pods
• Frequency response: 90 Hz – 16 kHz
• Sensitivity: >-27 dB /-1 dB @ 1 Pa
• Microphone data rate: 48 kHz
• Recommended # of participants:
• Rally (one Mic Pod): 10
• Additional participants per Mic Pod: 6
• Recommended participants for Rally with 7 Mic Pods: 46

RALLY SPEAKER

• High-performance 76 mm driver with rare-earth magnet
• Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
• Mini XLR cable connects to Rally Display Hub for both signal and power
• Speaker volume 95 dB SPL @1 W, 100 dB SPL @7.5 W, both /-2 dB at ½ meter
• Sensitivity: 95 /-2 dB SPL at ½ meter
• Distortion: 200 Hz–300 Hz < 2.5%, 300 Hz–10 kHz < 1%@7.5 W
• Speaker sampling rate: 48 kHz

RALLY TABLE HUB

• Single CAT6A cable connection to Rally Display Hub ( 5 m cable included, supports customer-supplied cables up to 50 m)
• Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8ms
• 12 Pin connector for Rally Mic Pod
• HDMI Type A passthrough to Display Hub (x2)
• USB Type C
• USB Type A (reserved for future capability)
• USB Type B (connects to meeting room computer)
• RJ45 (reserved for future capability)
• Power input
• RALLY DISPLAY HUB
• HDMI Type A (x2) (connects to displays)
• USB C (connects to Rally Camera)
• USB Type B (connects to meeting room computer)
• RJ45 (connects to Table Hub)
• Mini XLR (x2)
• Powers one or two Rally Speakers
• Power input

REMOTE CONTROL

• RF remote control (line of sight not required)
• CR2032 batteries (included)
• CABLES / POWER
• Camera to Display Hub
• 2 m USB 3.1 Type C to USB Type C 3.1

RALLY SPEAKER

• Add a second Rally Speaker for larger rooms
• COMPATIBILITY AND CERTIFICATIONS
• Plug-and-play USB connectivity
• Certified for Skype for Business and ready for Teams
• Zoom Certified
• Fuze Certified
• Certified for Google Hangouts Meet Hardware
• Microsoft Cortana® certified
• Cisco Jabber® and WebEx Compatible
• Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
