KD-4x1WUTx is an HDBaseT wall-plate transmitter universal format switcher soft-codec enabling interface with 2x HDMI, Display Port, and USB-C inputs, USB-A and USB-B connections. KD-X4x1WUTx is ideal for professional video installations in conference rooms, class rooms, lecture halls, auditoriums, and more. KD-X4x1WUTx's receivers (sold separately) feature audio de-embedding for ease of integration with audio systems. KD-X4x1WUTx features push-button or IP switching and is KD-App Ready. CEC Display control keypad enables basic controls of the connected display or projector for a simplistic all-in-one integration. In addition to AV signals, KD-X4x1WUTx extends USB 2.0, IR and RS-232 for controlling remotely located equipment. The wall-plate unit fits in a standard US three-gang box and is powered by the Rx unit or Presentation Switcher for convenient installation.

Features

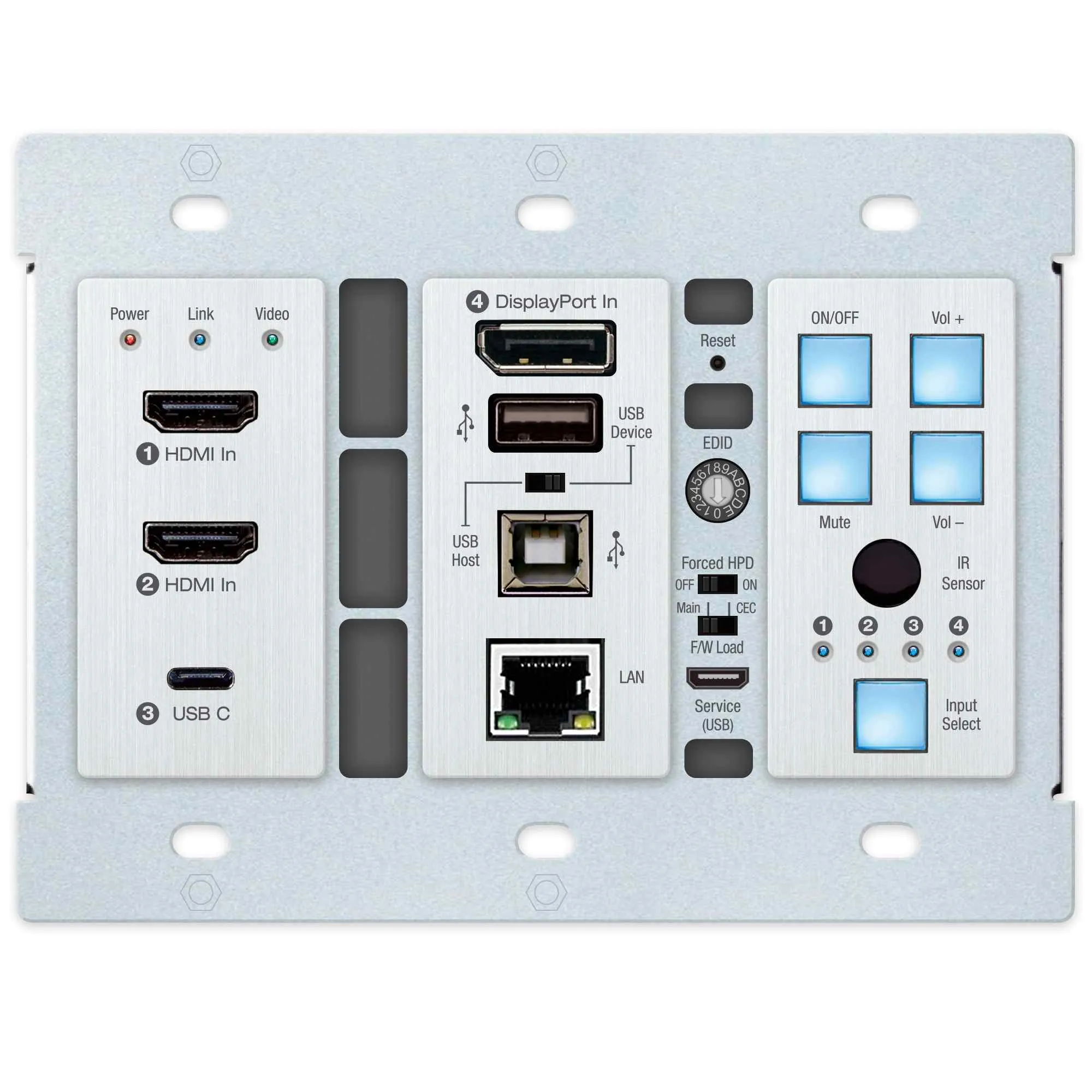

• Presentation Switching: 2 HDMI, 1 Display Port, and 1 USB-C source selection by push button or IP control
• Installation: Fits in standard US 3-gang wall box or table and wall AV boxes
• Rx Options: Native integration with KD-X100MRx black box HDBaseT Rx or KD-UPS52U Presentation Switcher. Future Rx options may be available
• Video Conference USB Hub: USB Host Device ports create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
• CEC Manager™: Power, volume, and muting controls of the connected displays/projectors without any additional control wiring
• KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector controls via CEC Manager™
• Ease of Integration: Complete configuration using Key Digital Management Software™ Pro
• Power Over HDBaseT: Wall-plate unit powered by Rx/Presentation Switch unit
• Installation: Tx unit designed for installation in standard US three-gang box
• Signal Extension: 4K/UHD (18G) up to 100m / 328ft. 1080p up to 150m / 492ft
• Surround Audio: Support for Dolby® TrueHD, Dolby® Digital Plus, Dolby Atmos®, and DTS-HD Master Audio™
• Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API

Specifications

• Inputs: 2 HDMI, 1 Display Port, 1 USB-C, 1 IR Sensor, 1 Serial IR, 1 Bi-Directional RS-232

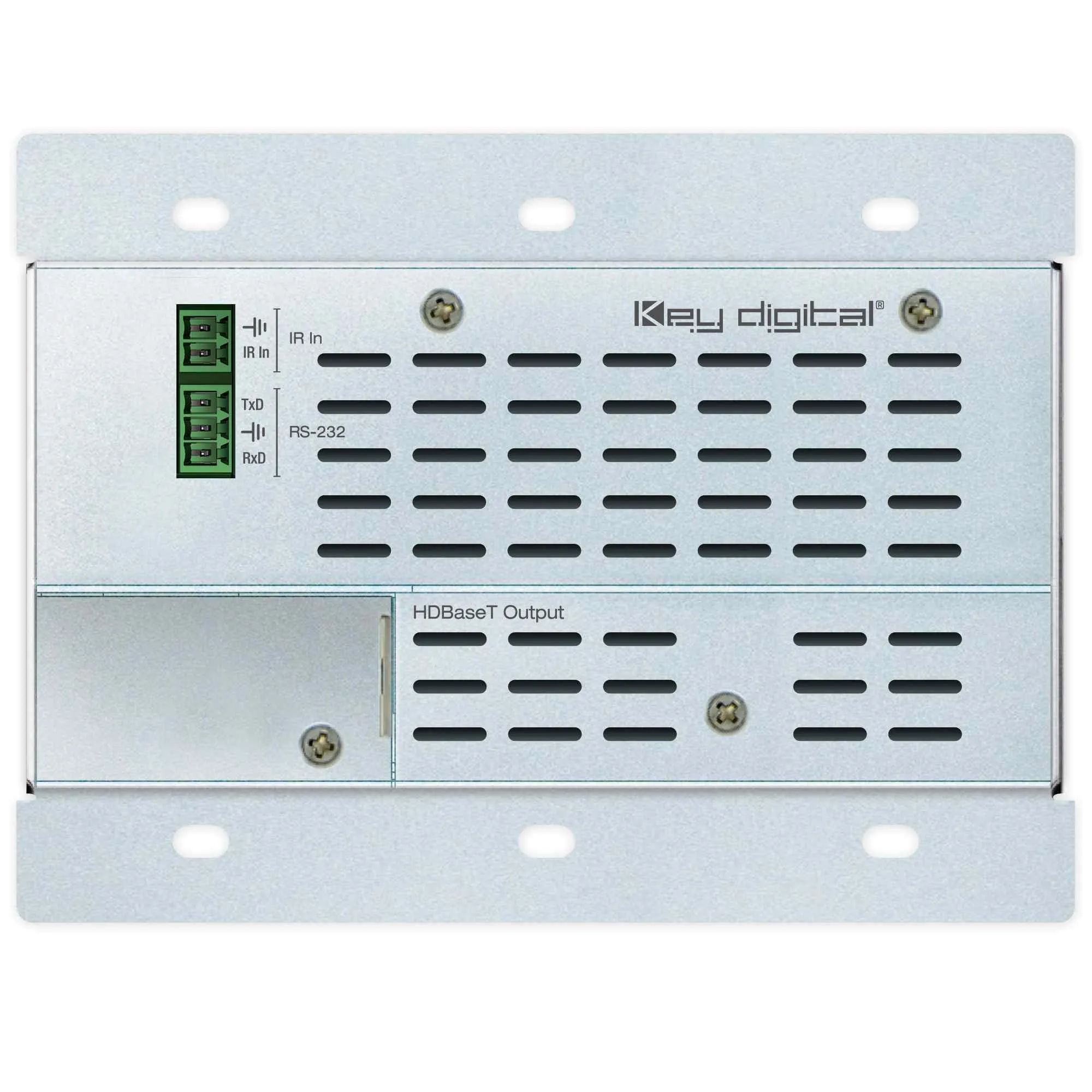

• Outputs: 1 HDBaseT RJ45, 1 Bi-Directional RS-232
• DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
• HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
• Display Port Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
• USB-C Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
• RJ45 Connector: Shielded Link Connector, HDBaseT
• IR Connectors: 1 IR Sensor, 1 2-pin phoenix terminal
• RS-232 Connector: 3-pin phoenix terminal


General

• Regulation: CE, RoHS, WEEE, EAC
• Wallplate: Standard 3-gang Wallplate
• Enclosure: Faceplate - Silver Brushed Metal, Body - Texturized Silver Meta
• Product Dimensions: 5.5 x 4.1 x 1.43” (141 x 105 x 36.4mm)
• Product Weight: 1.3 lbs
• Packaging Dimensions: 11” x 7.9” x 2.1” (280 x 200 x 55 mm)
• Packaging Weight: 2.1 lbs
