- Three 1/2.8 CMOS | 2MP | 15fps@4K
- 3.6mm | fixed | AoV 180
- Max. IR length 65ft | Smart IR | 6 IR LEDs
- 1ch audio in
- IP67 | IK10 | 24VAC | Max. 24W
- AGC | 120dB WDR | HLC | BLC | 3DNR

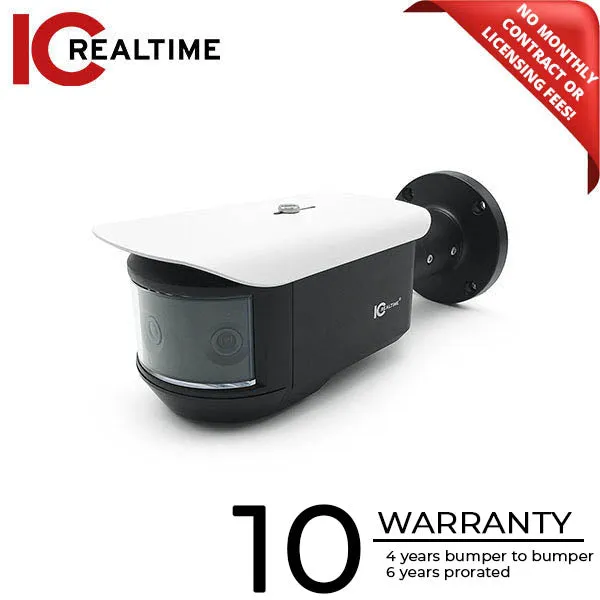

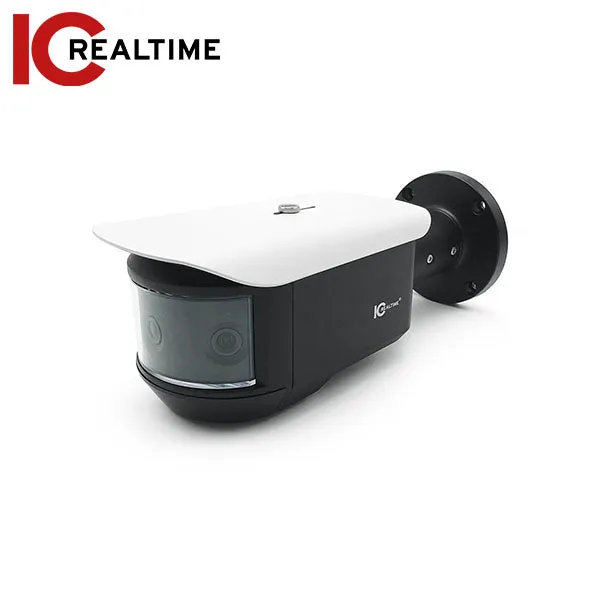

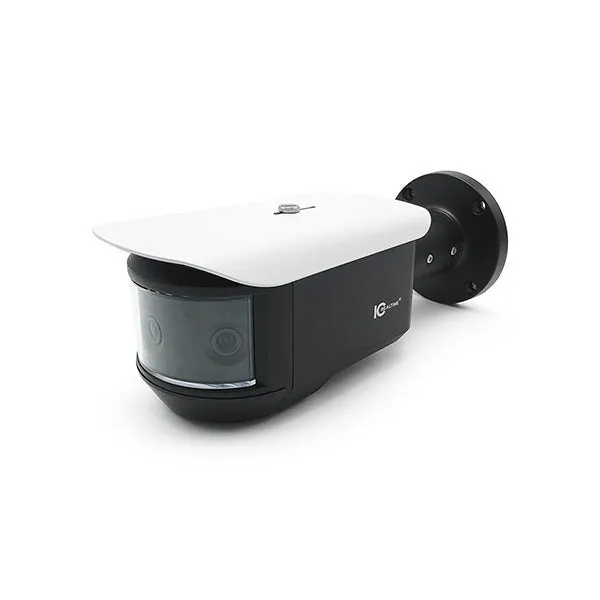

Panoramic cameras offer a 180° view of their environment in a way no other camera can. Housing 3 individual 2MP/1080p Starlight cameras in a single IP67 weather-resistant cast aluminum case, the “Pano” style camera is a one-site installation and avoids the “high crime area” look of a 3 camera stack in one location but still enables 3 discrete observation angles for inclusive video coverage of a broad vista to cover parking lots, warehouses and stadium-sized areas with a side-to-side, uninterrupted 1080p video view without any moving parts.
For the PanoA007 to maintain IC Realtime’s legendary video quality, the 3 individual cameras inside would have to be top-notch - and they are. Built with our latest I-Sniper Gen2 Starlight video chipset, each camera delivers incredible color rendition down to 0.005Lux, with perfect exposures thanks to a 120db Wide Dynamic Range. And when the available light drops to 0.00 lux, the SmartIRs kick in for 65 feet of illumination in complete darkness.
Long available on the IP camera side, IC Realtime’s AVS-PANO-A007 brings that same panoramic view capability to the HD-AVS BNC/coax camera world. With a single professional quality IK10 vandal-resistant case, PANO-A007 can achieve full exterior structure or complete interior coverage from only 2 corner vantage points. In facilities where camera placement & wiring access is limited, the PanoA007 is the best solution for 180° video coverage for HD-AVS systems.
HD-AVS technology also brings unique “No Latency” and direct-connect security advantages over IP cameras. Since it connects directly to a local HD-AVS recorder, it won’t be affected by network loads or directly exposed to online security risks.
The PanoA007 has a total of four BNC video outputs. 3 of the BNC outputs stream each internal camera’s output to display their channels at their native 1080p HD video level. The 4th output streams the complete 180° vista of all 3 cameras.
This ultra-wide vista is the unique feature that makes the PanoA007 such an outstanding addition to any HD-AVS system. No other camera design can provide this kind of automatically combined, 3 camera 180° view. The advanced technology in the PanoA007 automatically combines them in an “invisibly stitched” 180° panoramic output that reaches 4K UHD specs at 3840 wide x 832 high pixels.
In a coax installation where only constant 180° panoramic coverage is needed, the PanoA007 can also be the ideal legacy PTZ alternative/upgrade. PanoA007 uses the same 24VAC ±25% @ 24W power, has the same wide operating range of -22°F ~ 140°F, and shares the PTZ’s same variety of mounting options, including a custom-fit junction base box and pole & corner mount brackets. The camera also features an audio input port for external audio sources such as gate or access control audio microphone pickups.
