Product Details
+
The Hollyland Mars 4K Wireless Video Transmission System allows you to wirelessly transmit up to 4K30 video to your gimbal, mirrorless or DSLR camera setup. The transmitter provides both HDMI and SDI inputs, while the receiver offers both SDI and HDMI outputs. With low 0.06s latency and a line-of-sight transmission range of up to 450', this system delivers smooth, lag-free video.
Using the Hollyview app for iOS or Android, you can monitor your video transmission in real time on your smartphone or tablet. The system features a built-in frequency scanner that automatically selects the clearest frequency for your transmission. The Mars 4K transmitter and receiver are compact in size and have a bright touchscreen LCD display for configuration. They are also built with a corrosion-resistant housing to withstand tough shooting conditions. Each unit can be powered using a USB Type-C source, the included locking DC power adapters, or by using a separately available L-series type battery with an optional battery plate.
Key Features
UHD 4K Video Transmission
The Mars 4K is designed to meet the demands of professional videographers who require high-resolution production capabilities, supporting UHD 4K30 video transmission. In addition to UHD 4K30, the system also supports a range of other formats including FHD and HD at different frame rates, such as 24, 30, and 60p.
Long Range and Low Latency
With an upgraded dual-core codec chip, the Mars 4K delivers a remarkable line-of-sight range of 450' and an ultra-low latency of 0.06s. Additionally, it boasts an impressive 12 Mb/s data transfer rate.

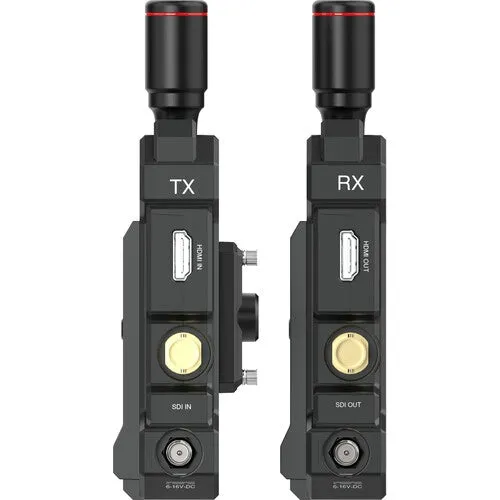

HDMI and SDI Interfaces
With support for both HDMI and SDI input and output, the Mars 4K provides an array of options for enhanced connectivity and compatibility. The SDI ports offer expanded frame rate flexibility for a range of broadcast and production frame rate standards, ensuring seamless compatibility from production to post-production.
Form Factor
The Mars 4K boasts a durable design with corrosion and wear resistance, ensuring longevity even in harsh environments. Its optimized form factor allows for quick and easy configurations, while the bullet-styled antennas provide stable connectivity without any wiggle.
Smart Channel Scanning
The Mars 4K provides various channel assignment options to ensure interference-free transmission. The system establishes a stable connection automatically upon startup, while its intelligent channel scan feature helps to identify occupied channels and select the most suitable one.
Color Touchscreen LCD
The Mars 4K is equipped with a color touch LCD that has an intuitive UI design, allowing for easy and fast configuration as well as status checks. The gamepad-styled button provides a streamlined operational setup experience.
Multiple Power Options
The Mars 4K provides versatile DC power options, including a 6 to 16 VDC coax input, L-series/NP-F batteries, and USB Type-C chargers, ensuring you always have a reliable power source for your wireless video transmission needs.
App Monitoring
You can use the Hollyview app for Android and iOS to monitor your transmission on a smartphone or tablet. This app enables you to transmit to apps and receivers in various configurations, including:
Using the Hollyview app for iOS or Android, you can monitor your video transmission in real time on your smartphone or tablet. The system features a built-in frequency scanner that automatically selects the clearest frequency for your transmission. The Mars 4K transmitter and receiver are compact in size and have a bright touchscreen LCD display for configuration. They are also built with a corrosion-resistant housing to withstand tough shooting conditions. Each unit can be powered using a USB Type-C source, the included locking DC power adapters, or by using a separately available L-series type battery with an optional battery plate.
Key Features
UHD 4K Video Transmission
The Mars 4K is designed to meet the demands of professional videographers who require high-resolution production capabilities, supporting UHD 4K30 video transmission. In addition to UHD 4K30, the system also supports a range of other formats including FHD and HD at different frame rates, such as 24, 30, and 60p.
Long Range and Low Latency
With an upgraded dual-core codec chip, the Mars 4K delivers a remarkable line-of-sight range of 450' and an ultra-low latency of 0.06s. Additionally, it boasts an impressive 12 Mb/s data transfer rate.
HDMI and SDI Interfaces
With support for both HDMI and SDI input and output, the Mars 4K provides an array of options for enhanced connectivity and compatibility. The SDI ports offer expanded frame rate flexibility for a range of broadcast and production frame rate standards, ensuring seamless compatibility from production to post-production.
Form Factor
The Mars 4K boasts a durable design with corrosion and wear resistance, ensuring longevity even in harsh environments. Its optimized form factor allows for quick and easy configurations, while the bullet-styled antennas provide stable connectivity without any wiggle.
Smart Channel Scanning
The Mars 4K provides various channel assignment options to ensure interference-free transmission. The system establishes a stable connection automatically upon startup, while its intelligent channel scan feature helps to identify occupied channels and select the most suitable one.
Color Touchscreen LCD
The Mars 4K is equipped with a color touch LCD that has an intuitive UI design, allowing for easy and fast configuration as well as status checks. The gamepad-styled button provides a streamlined operational setup experience.
Multiple Power Options
The Mars 4K provides versatile DC power options, including a 6 to 16 VDC coax input, L-series/NP-F batteries, and USB Type-C chargers, ensuring you always have a reliable power source for your wireless video transmission needs.
App Monitoring
You can use the Hollyview app for Android and iOS to monitor your transmission on a smartphone or tablet. This app enables you to transmit to apps and receivers in various configurations, including:
- Transmitter to 1 receiver 2 apps
- Transmitter to 4 apps
- Mars M1 wireless transceiver monitor to 1 receiver and 2 apps
Inputs / Outputs | Specifications |
---|---|
Antenna I/O | Transmitter/Receiver: 2 x RP-SMA Female |
Video I/O | Transmitter: 1 x HDMI Input Transmitter: 1 x BNC Input Receiver: 1 x HDMI Output Receiver: 1 x HDMI Output |
Embedded Audio | HDMI/SDI |
Audio I/O | None |
Power | Transmitter/Receiver: 1 x Coax Input Transmitter/Receiver: 1 x USB-C Input |
Encryption | None |
Wireless | Wireless Range: 450' / 137.2 m (Line-of-Sight) Channel Bandwidth: 20 MHz Frequency Range: US: 5.1 to 5.8 GHz Latency: 0.06 ms RF Power: 21 dBm RF Sensitivity: -90 dBm Wi-Fi: Wi-Fi 4 (802.11n) Bluetooth: None Mobile App Compatible: Yes *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Format Support | Video Format: HDMI UHD 4K: 30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50 SDI 1080p: 60/59.94/30/29.97/24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 Audio Format: Not Specified by Manufacturer Timecode Support: Yes |
Power | DC Input Power: 6 to 16 VDC |
Mounting | 1 x 1/4"-20 Female |
Environmental | Environmental Protection: None Operating Temperature: 14 to 140°F / -10 to 60°C Storage Temperature: -40 to 140°F / -40 to 60°C |
General | Dimensions: Transmitter/Receiver: 4.5 x 2.6 x |
