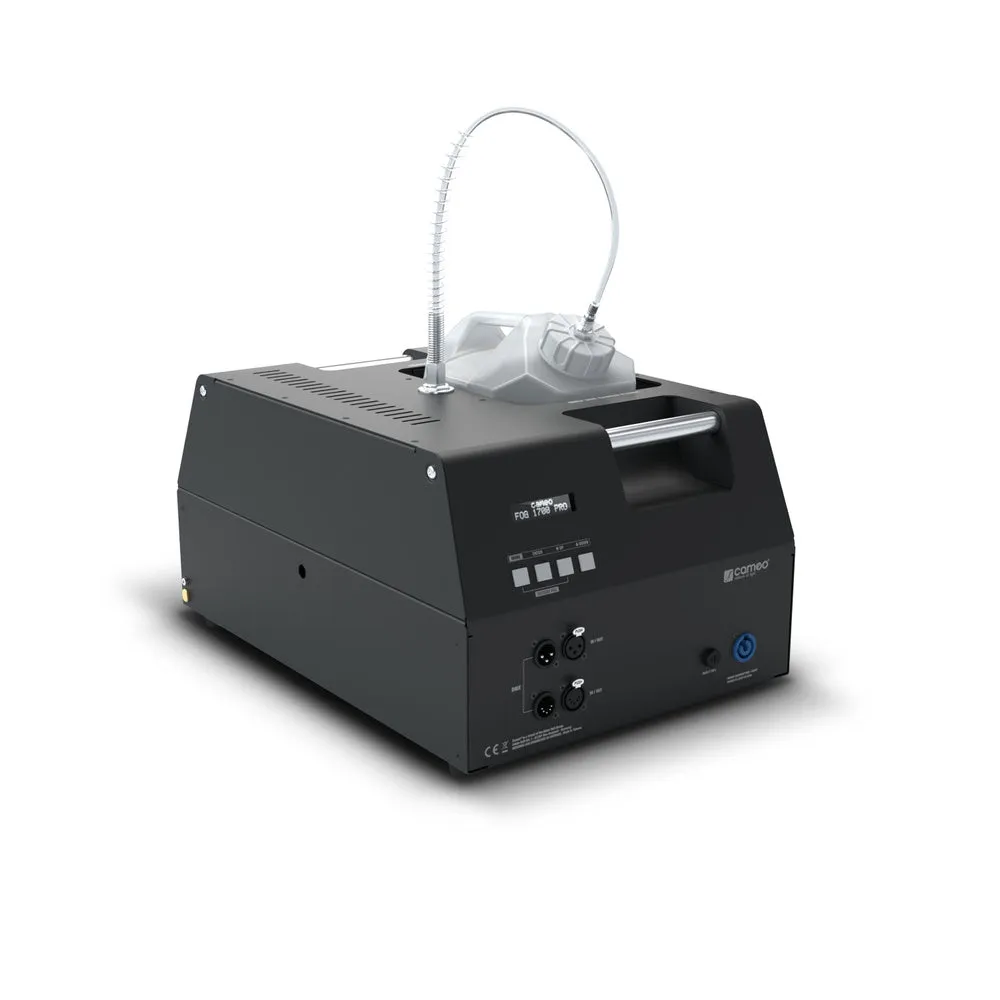

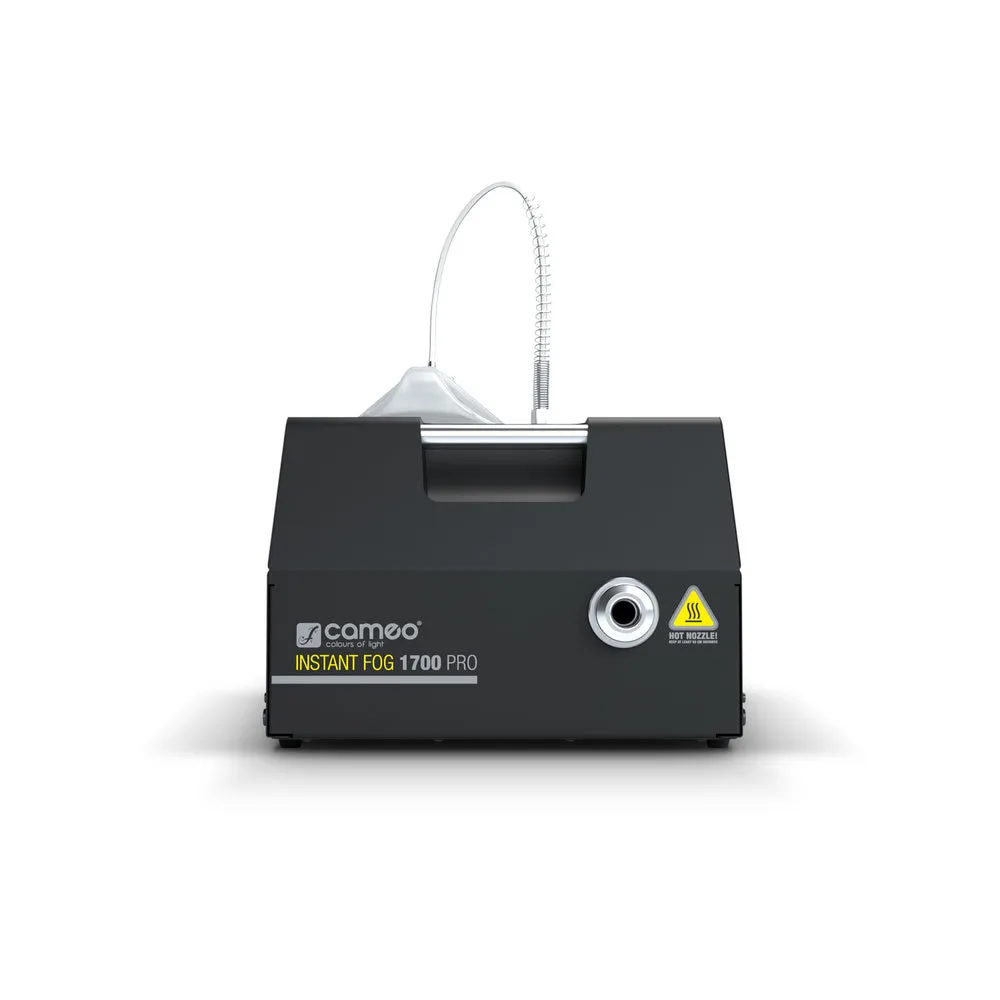

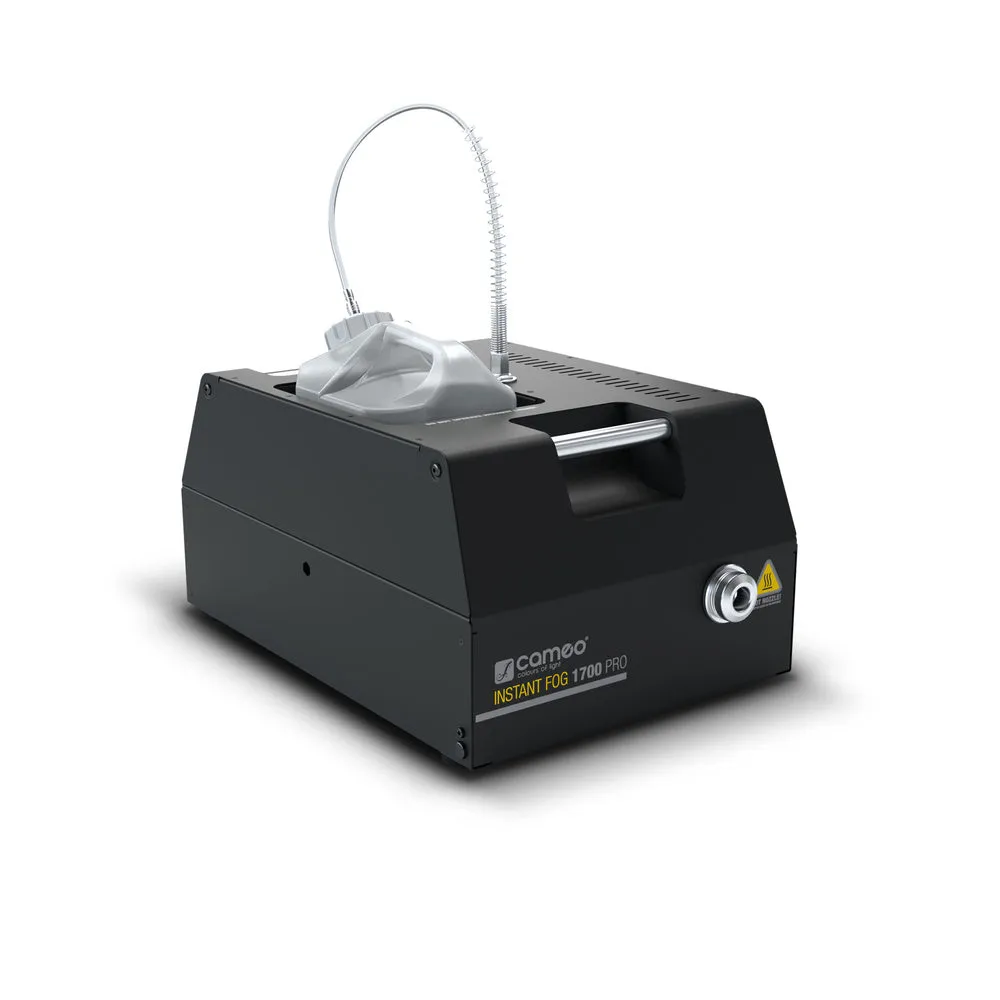

Generating spectacular atmospheres and enhancing every light show, Cameo's INSTANT FOG 1700 PRO is designed with the user in mind. This high output fog machine boasts an exclusive master-and-slave mode together with smart details that make operation a breeze. Sporting a powerful 1,700 watt heater and massive output of 24,720 cubic feet per minute, it fills large stages and venues with dense, consistent fog after an initial warm-up time of 7 minutes only. Fluid consumption is a very low 150 ml/min at 100% output, and the integrated fluid tank compartment takes containers up to 5 liter capacity for extended operation between refills. Fluid tank illumination indicates the fog machine is ready for operation.
The INSTANT FOG 1700 PRO is controlled via DMX in 3-channel mode or an easy-to-read high-contrast 16 x 2 character LCD and four buttons. It provides both 3-pin and 5-pin DMX inputs and outputs and powerCON compatible connectors. A convenient automatic shutdown feature prevents damage to the pump when the fluid tank runs empty. The fog machine comes with a 100 mm hose adapter if you want to duct the fog from the machine to another destination. Optional accessories include a unique flyware kit, U-bracket and drip collecting tray which mount without the need for tools. Versatile and user-friendly, the INSTANT FOG 1700 PRO is the perfect choice for live events, discotheques and theatres as well as on-camera or rental applications.
Features
- Powerful 1,700 watt fog machine
- DMX control plus standalone operation
- Exclusive master-and-slave functionality
- High-contrast 16 x 2 character LCD
- Integrated 5 l fluid tank compartment with status indication
- Automatic shutdown prevents pump damage when fluid tank is empty
- 100 mm hose adapter included
- Menu lock to prevent unauthorized access
- Ideal for live events, discotheques, theatres, TV and film productions, rental

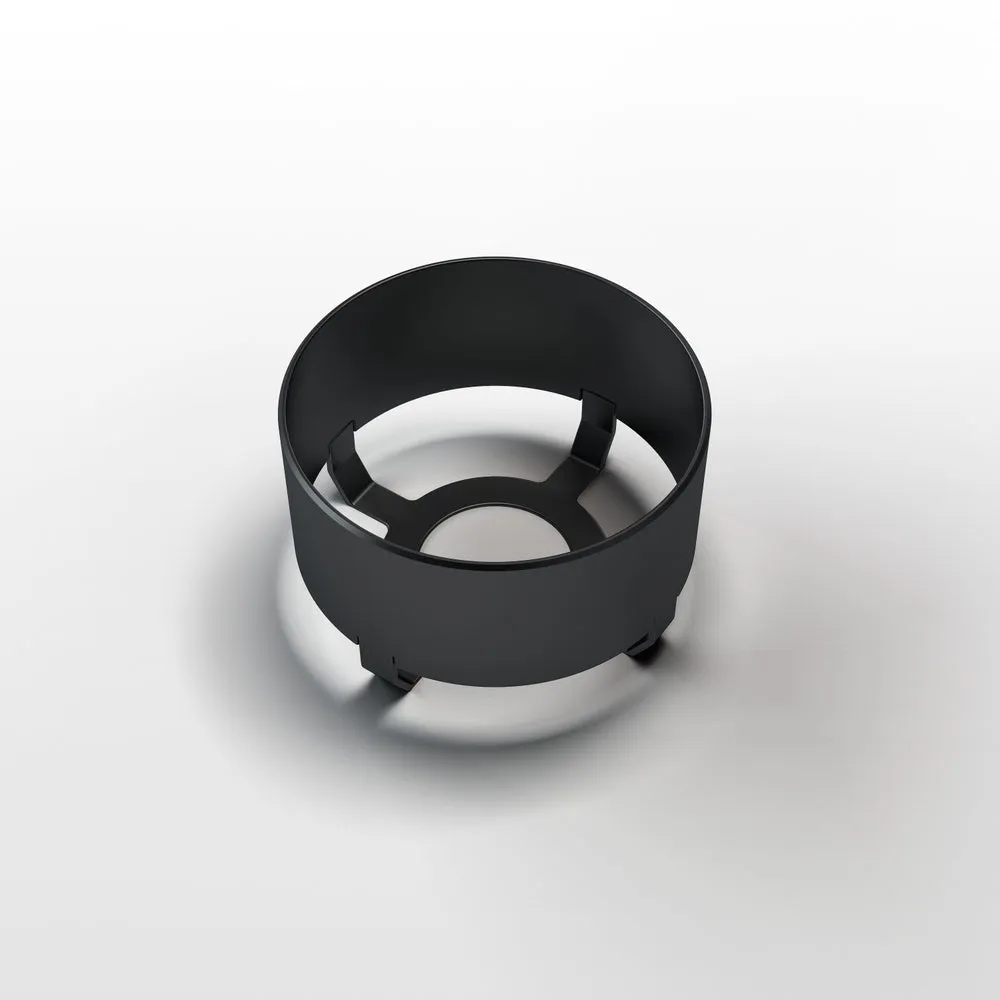

- Flyware kit, U-bracket and drip collection tray available as accessories
- All accessories mount without the need for tools
Specifications
- Product type: Fog and Wind Machines
- Type: Fog Machine
- Power: 1700 W
- Warm-up time: ca. 7 minutes
- Fog duration: ca. 40 seconds @ 100% Output / Non-Stop @ 50% Output
- Reheating time: approx. 60 sec.
- Fluid tank capacity: 5 l
- Fluid Consumption: ca. 150 ml/min
- DMX input: XLR 3-pin male, XLR 5-pin male
- DMX output: XLR 3-pin female, XLR 5-pin female
- DMX mode: 3-channel
- DMX Functions: Output Volume, Timer Duration, Timer Interval
- Controls :Enter, Mode, Value Down, Value Up
- Indicators: LCD display
- Operating voltage: 230 - 240 V AC / 50 - 60 Hz
- Fuse: T10AL 250 V
- Power consumption: 1800 W
- Power connector: Powercon compatible
- Cabinet colour: Black
- Width: 354 mm
- Height: 225 mm
- Length: 310 mm
- Weight: 14,63 kg
