Product Details
＋
Description

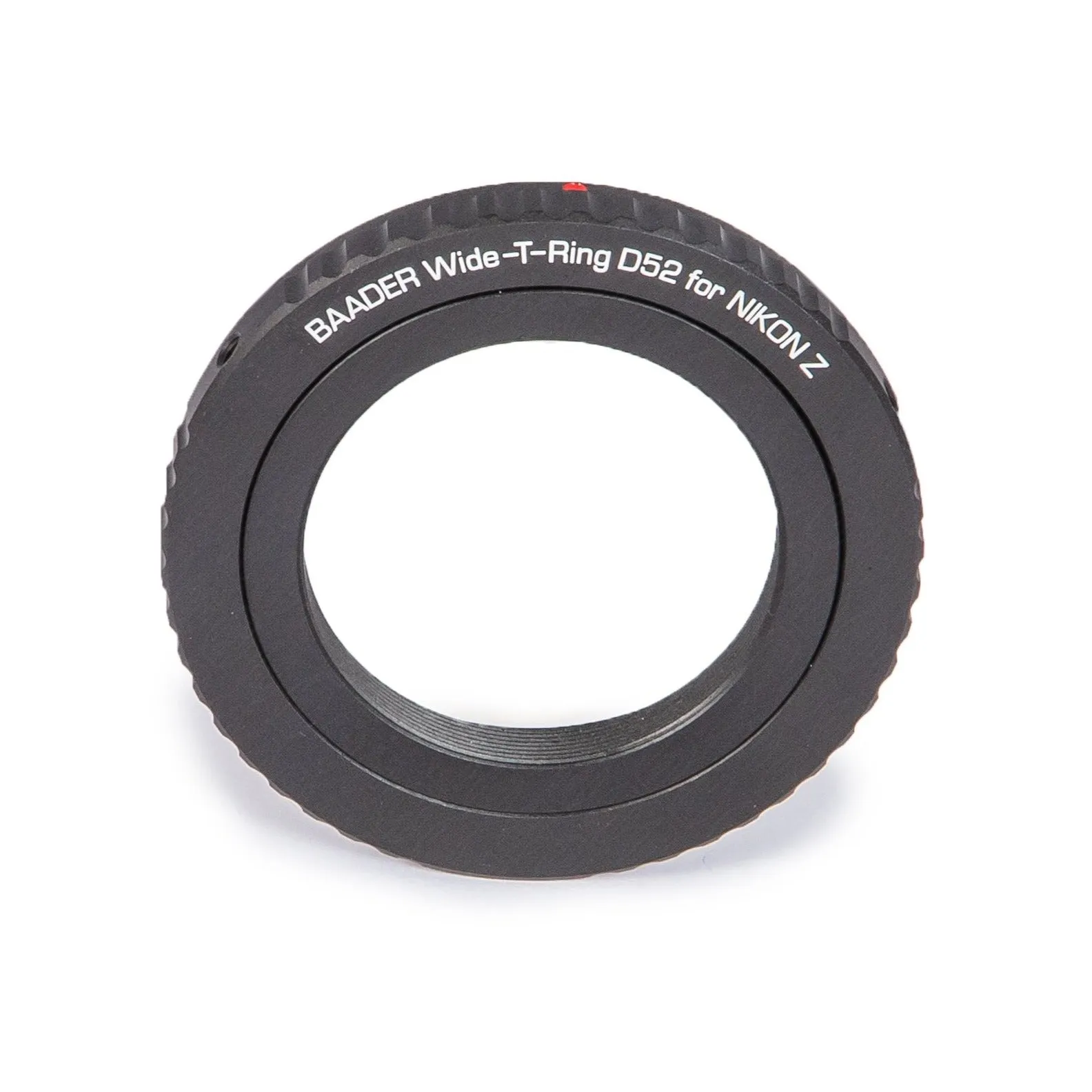

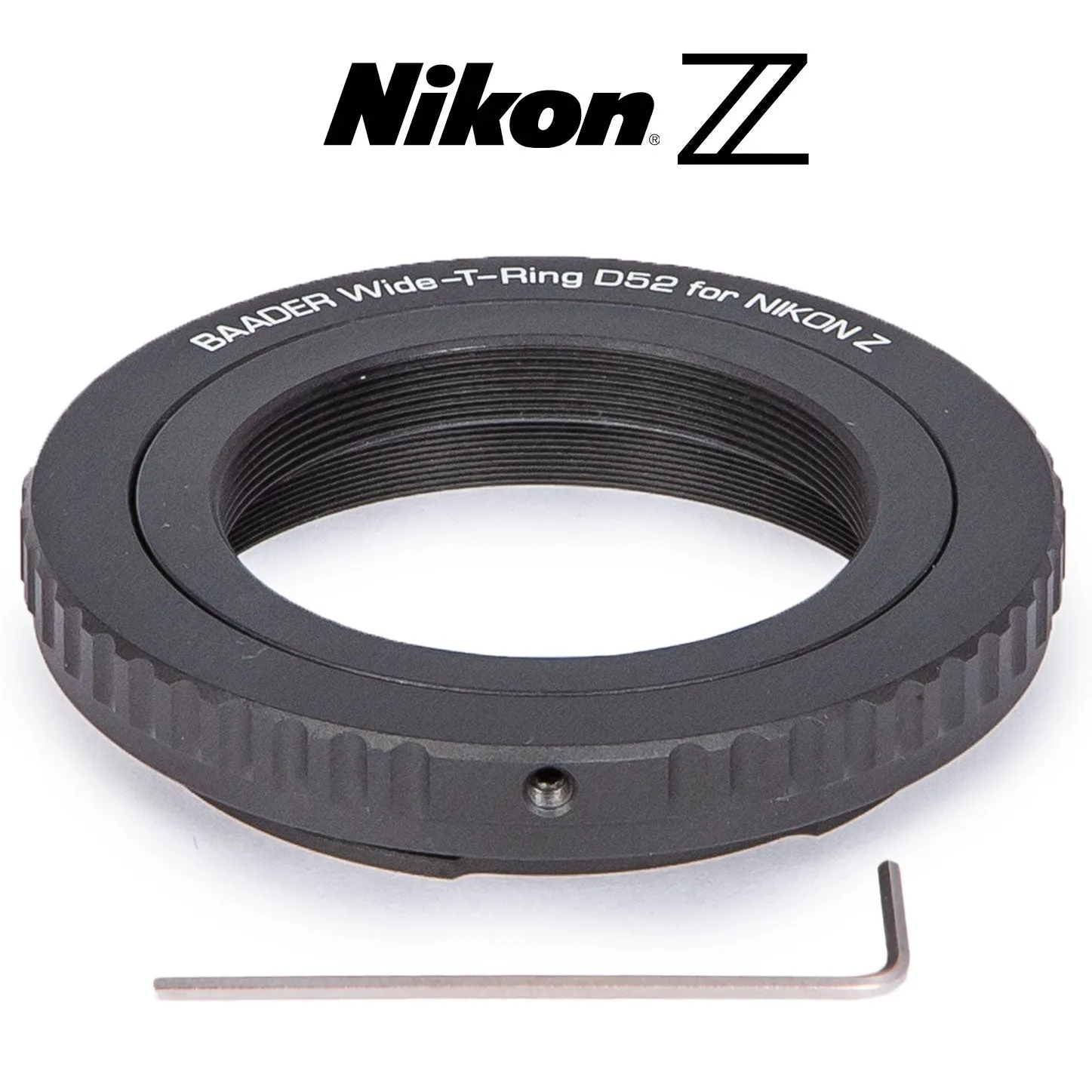

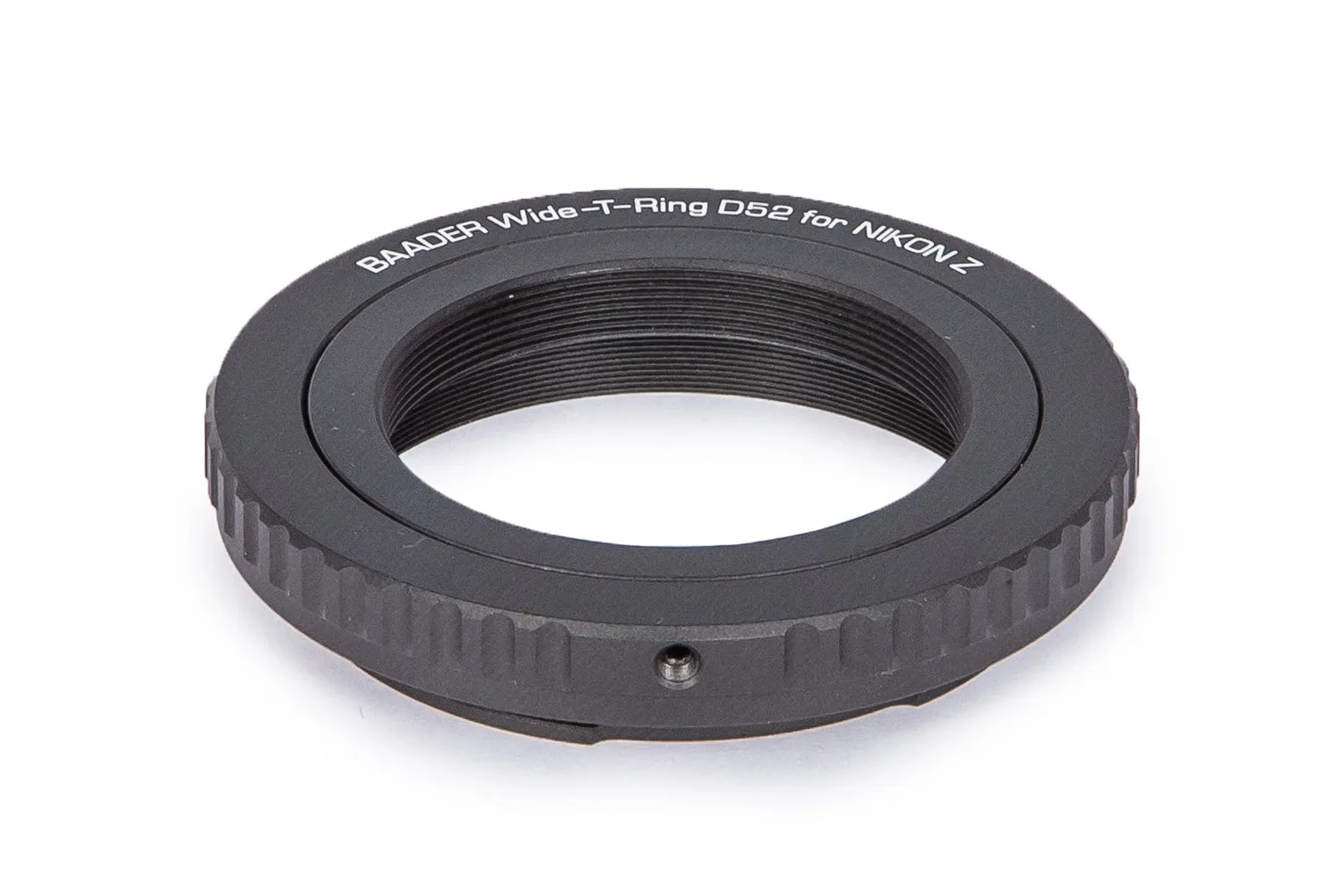

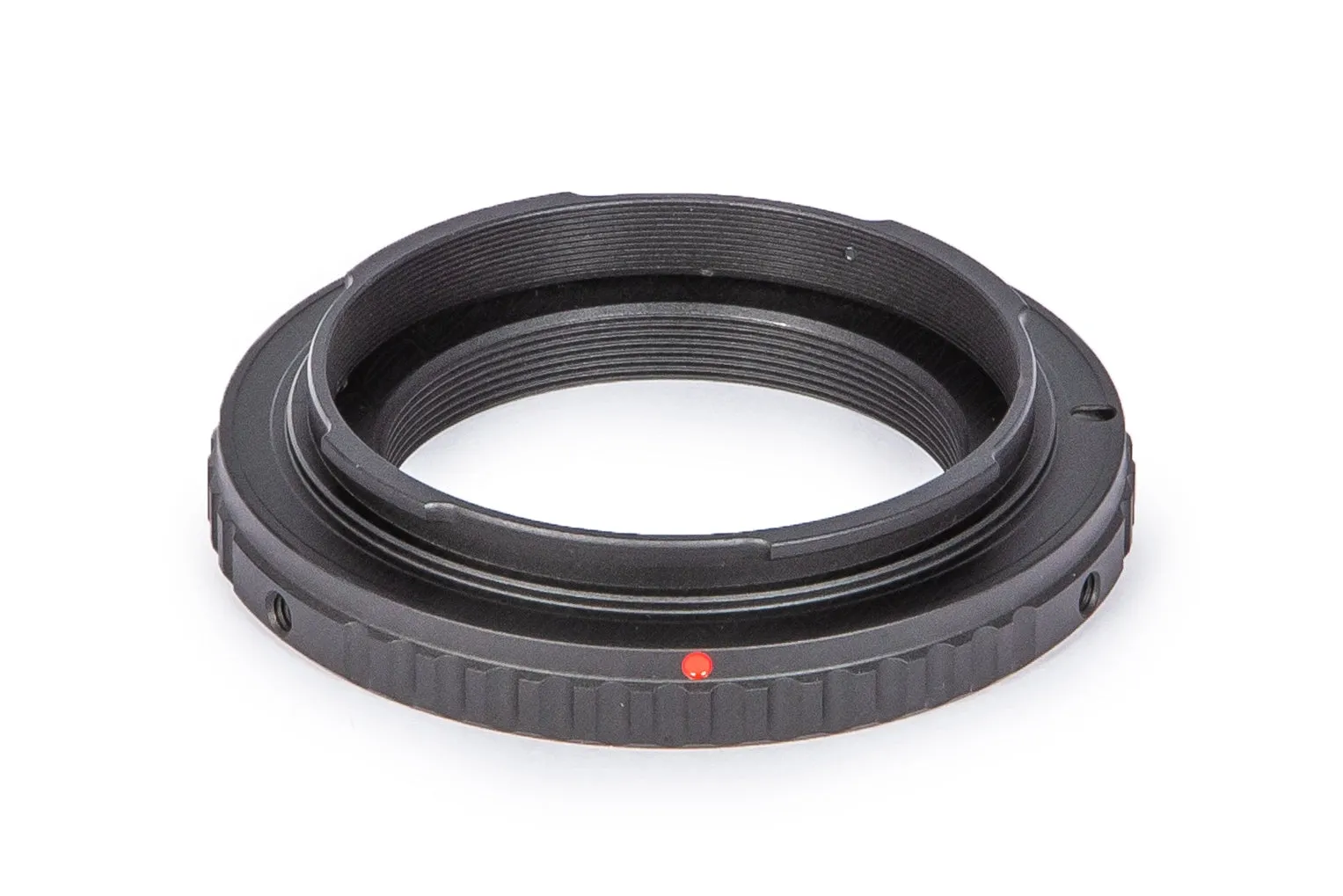

- Baader Wide-T-Ring Nikon Z to connect Nikon Z cameras on the Astro T-2 system and the S52 dovetail

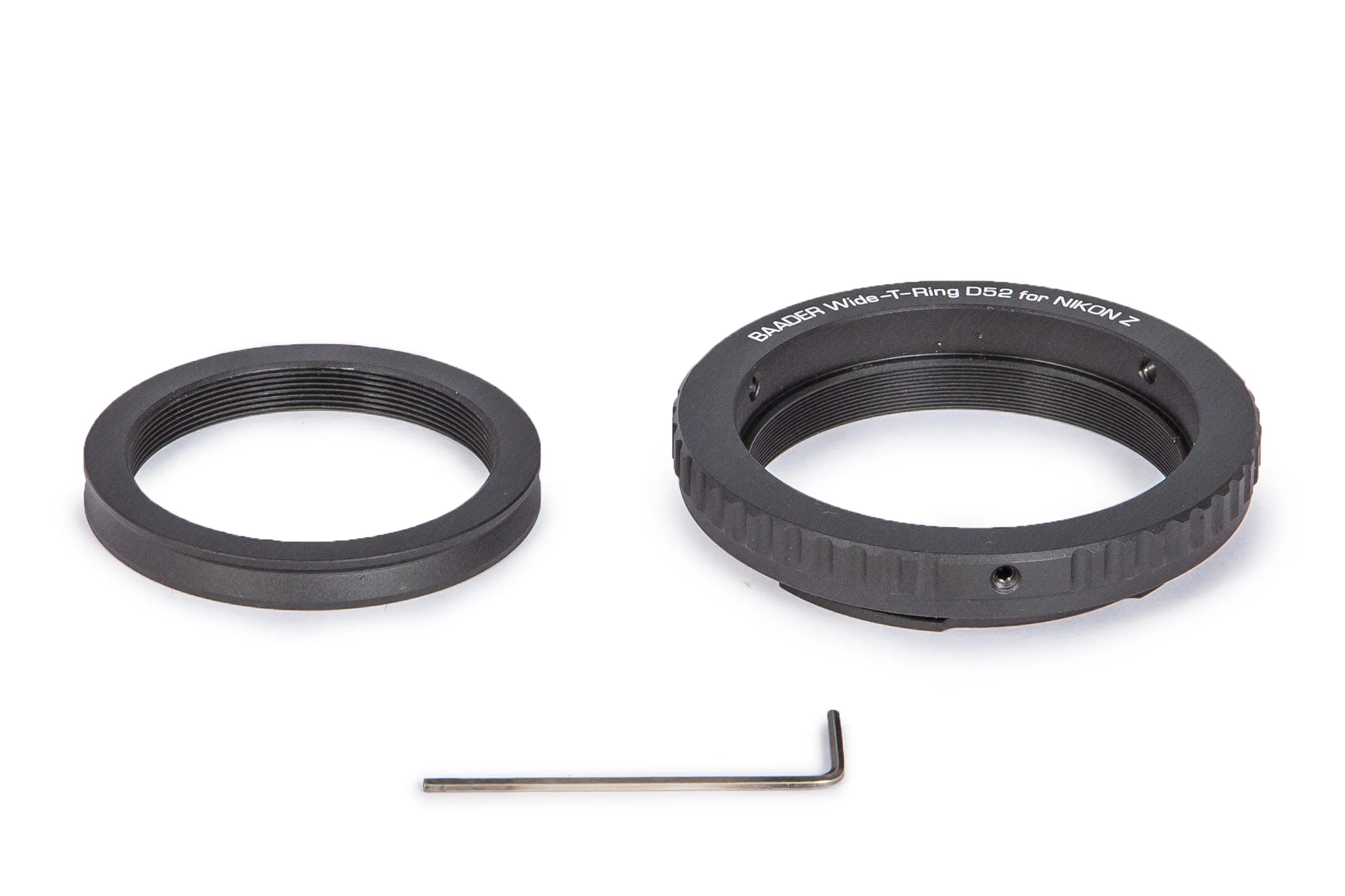

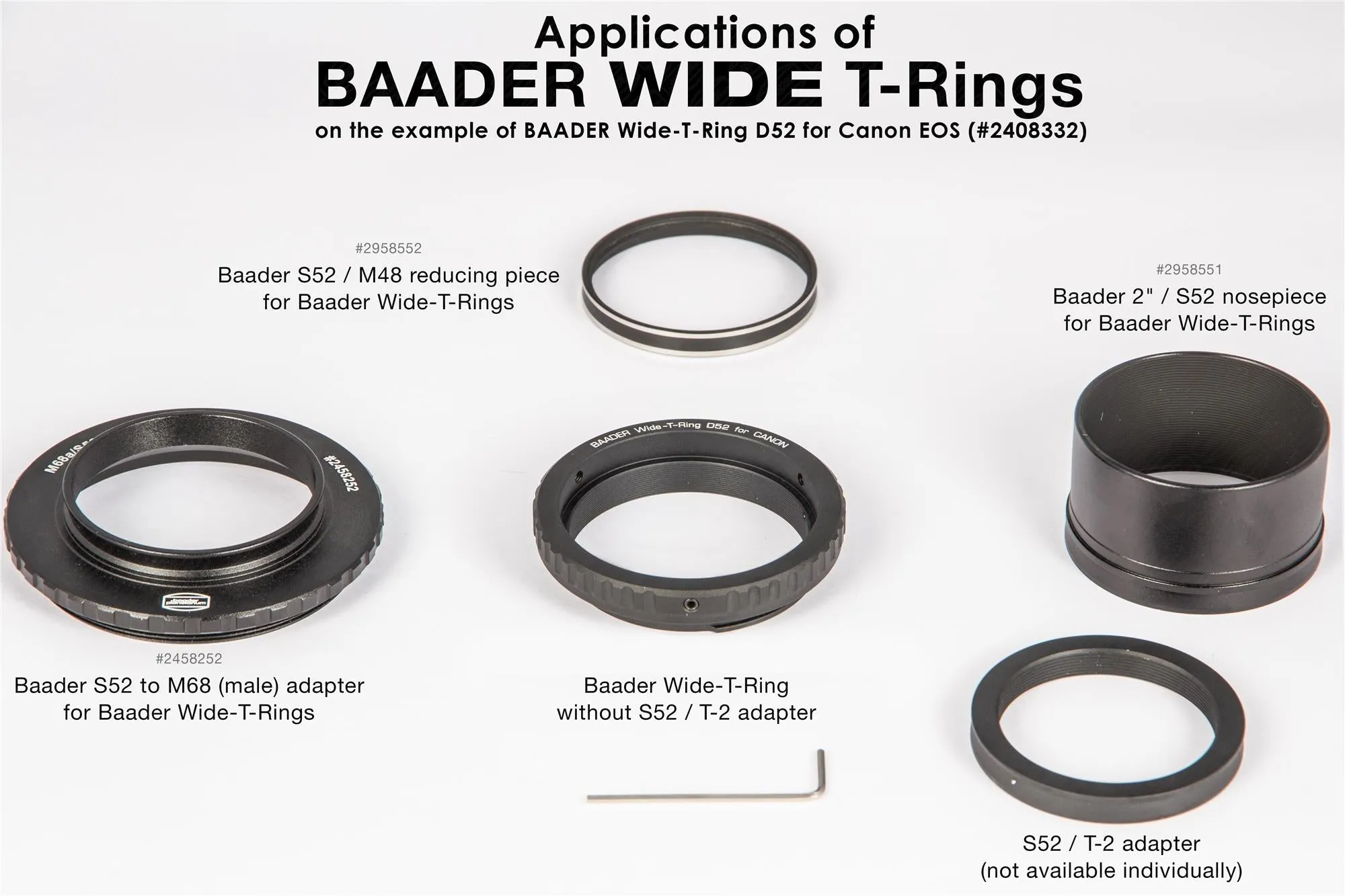

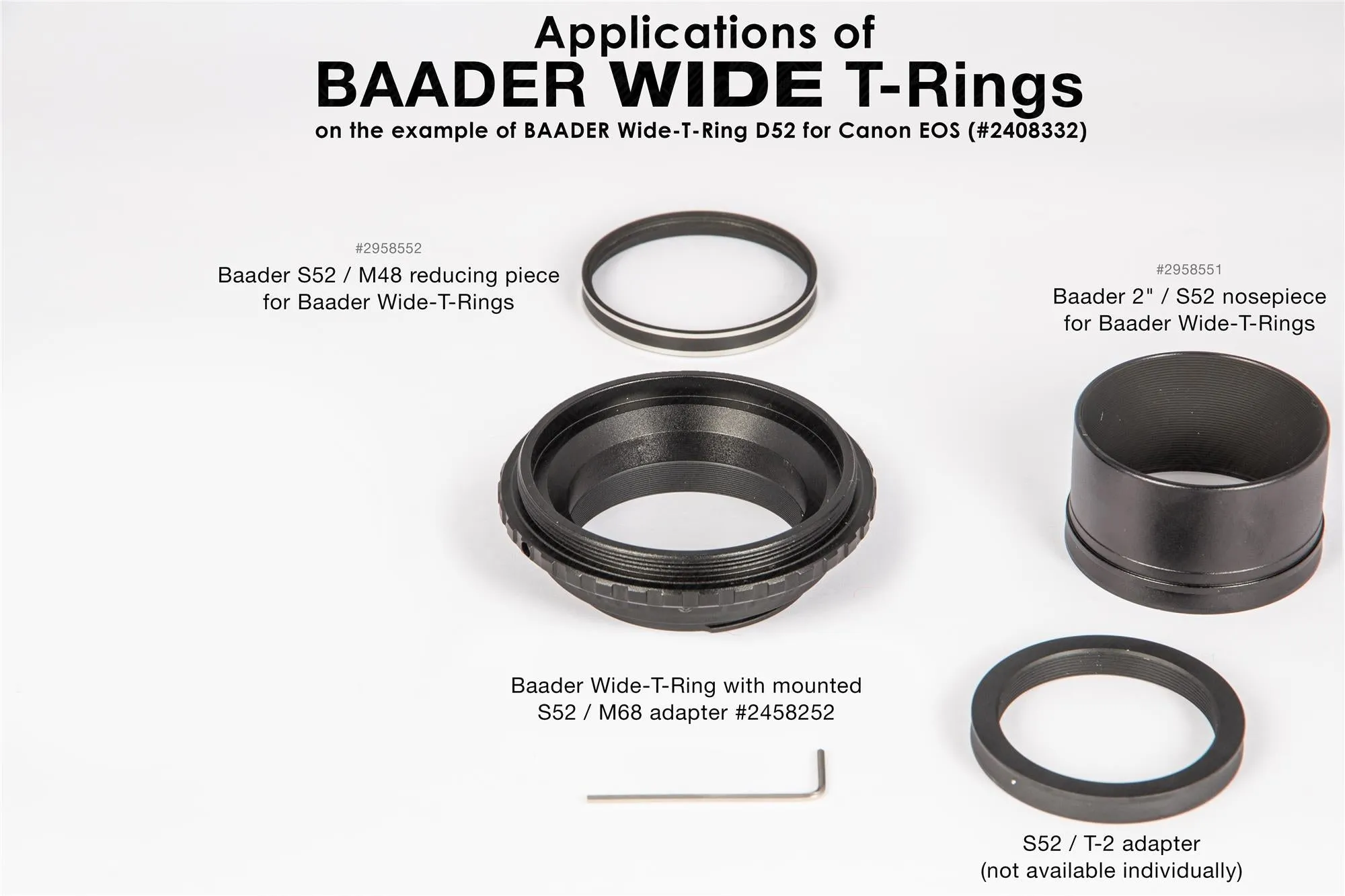

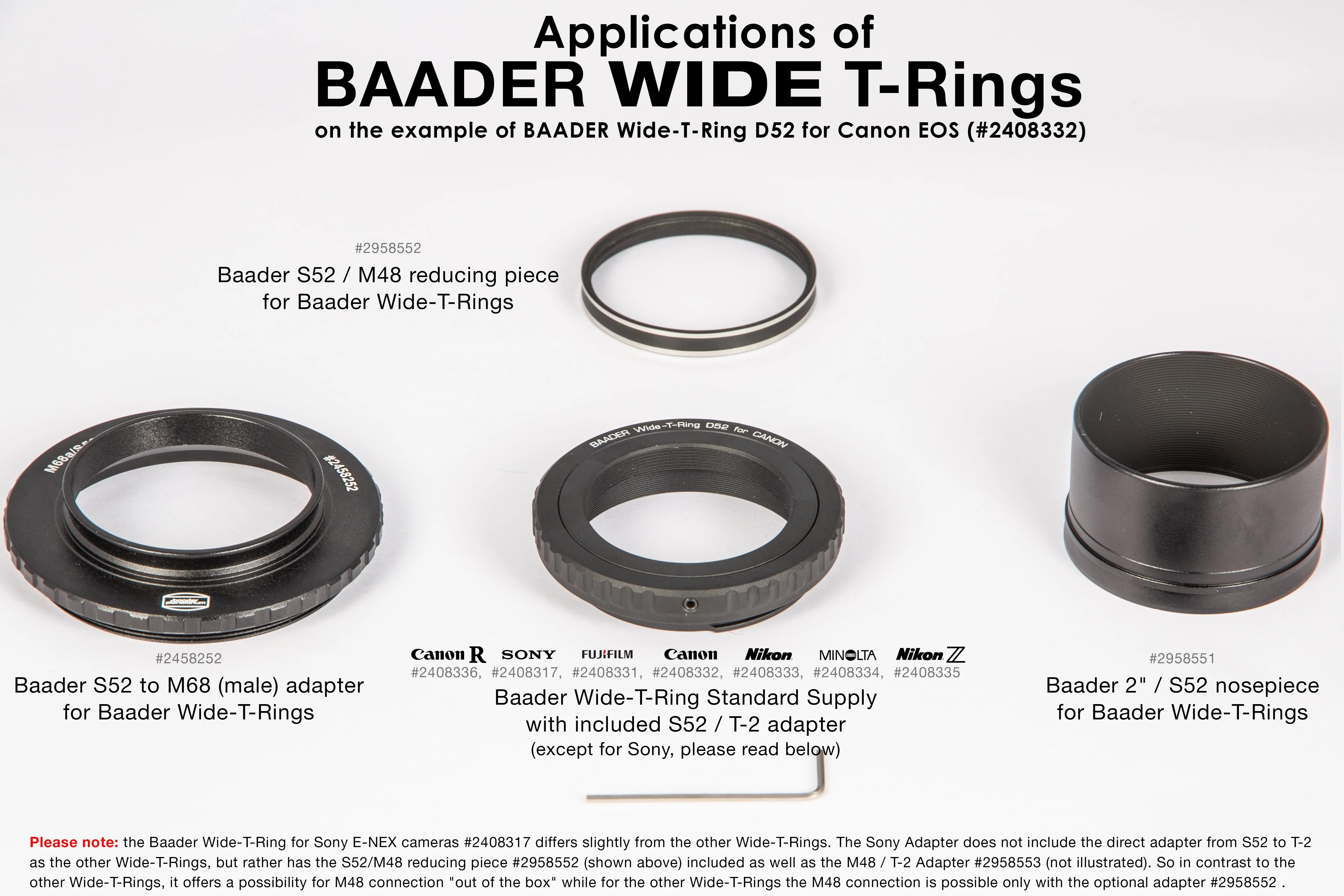

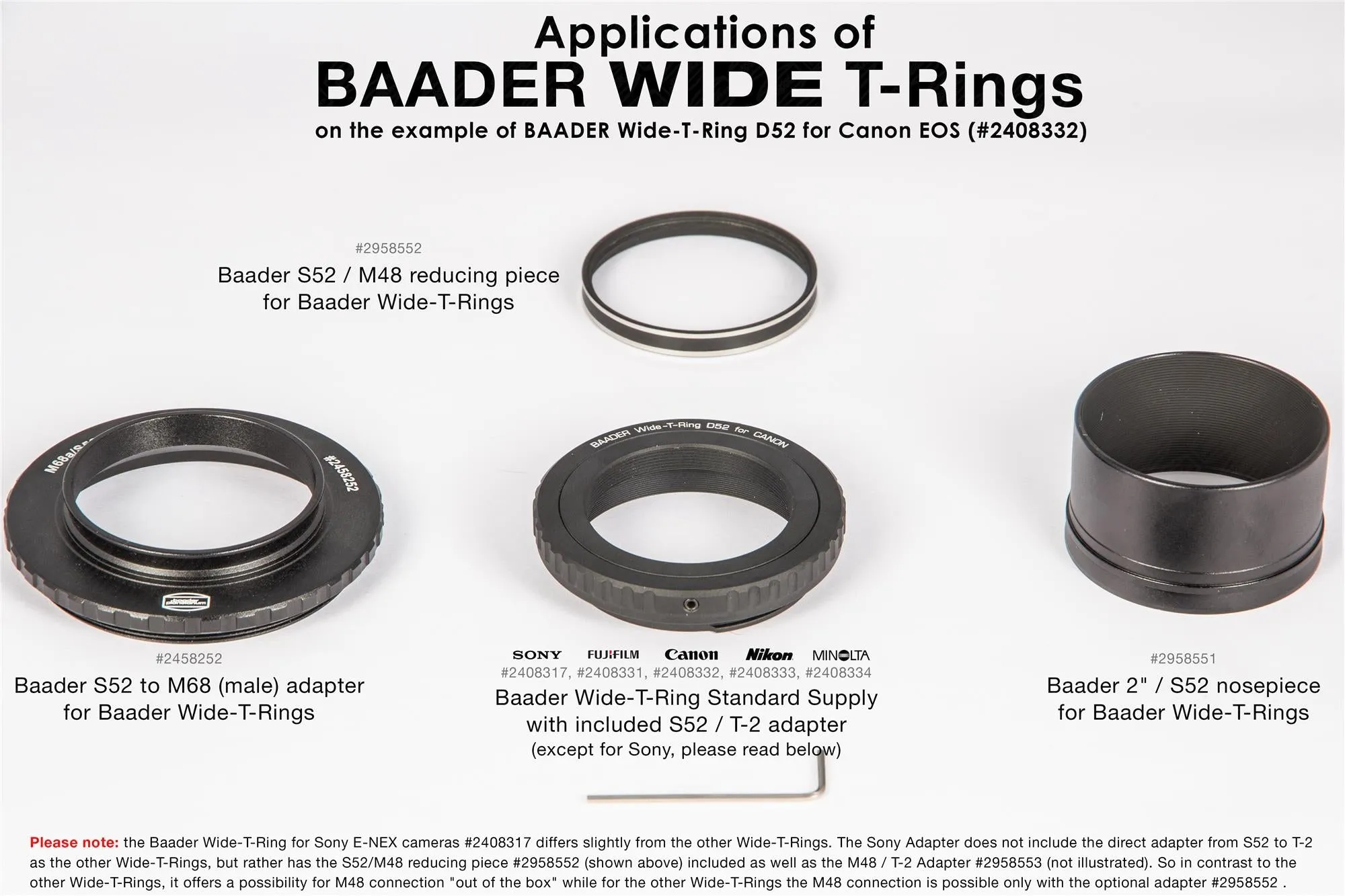

- All Baader Wide-T-rings have an S52 dovetail in addition to the inserted T-2 ring. This allows the T-ring to be modified to an M48 female thread using the S52 / M48 adapter #2958552, or to use the S52 barrel #2958551 without the T-2 reduction. With the S52 / M68 adapter # 2458252, the Wide-T-Ring can be directly attached to an M68 male thread to securely fasten your camera to the widest possible aperture.
- All Baader Wide T-rings can be directly adapted to an UFC (Universal Filter Changer) with the optional Baader UFC S52 dovetail camera-adapter (#2459119), in order to change different filter sizes directly in front of the camera sensor.
- Furthermore, the illumination of the camera chips improved significantly, mainly because of the larger clear aperture.
- On the camera side: Nikon Z bayonet
- Telescope side: S52 dovetail clamp incl. S52/T-2 internal thread with 0.75mm pitch
Specifications
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2408335 |
| EAN CODE | 4047825041029 |
| OPTICAL LENGTH (MM) | 8,3 |
| CAMERA ADAPTABLE | Nikon Z Bajonett |
| INNER DIAMETER / CLEAR APERTURE (MM) | 41mm (T-2) / 49,3mm |
| OUTER DIAMETER | 66.5mm |
| INNER CONNECTION (LENS SIDED) | S52, T-2 (M42 x 0,75) |
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Bayonet |
| COMPATIBLE BRANDS | Astro T-2, Baader Planetarium, Other |
| TYPE OF ADAPTER | Camera Adapter |
