Product Details
＋
Description

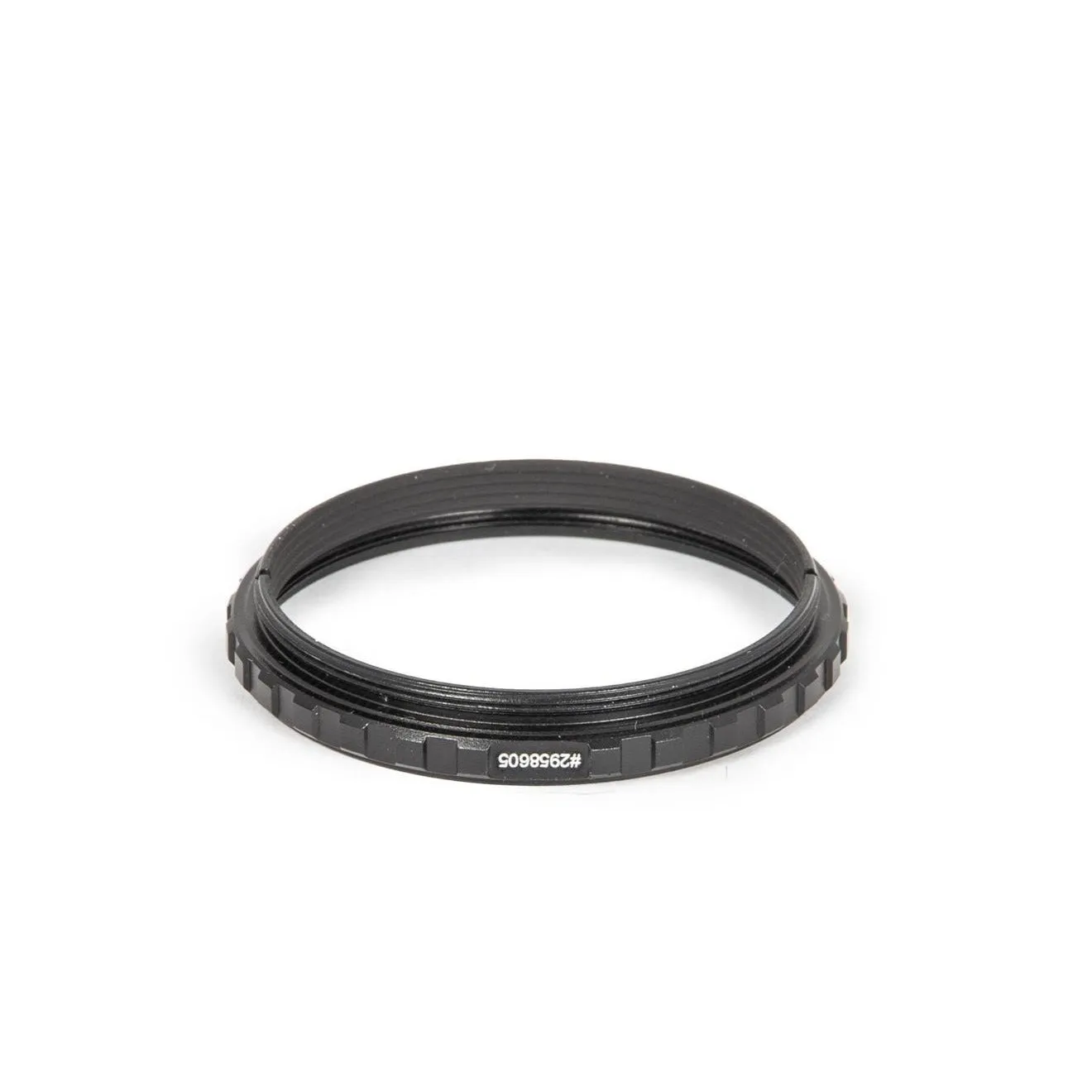

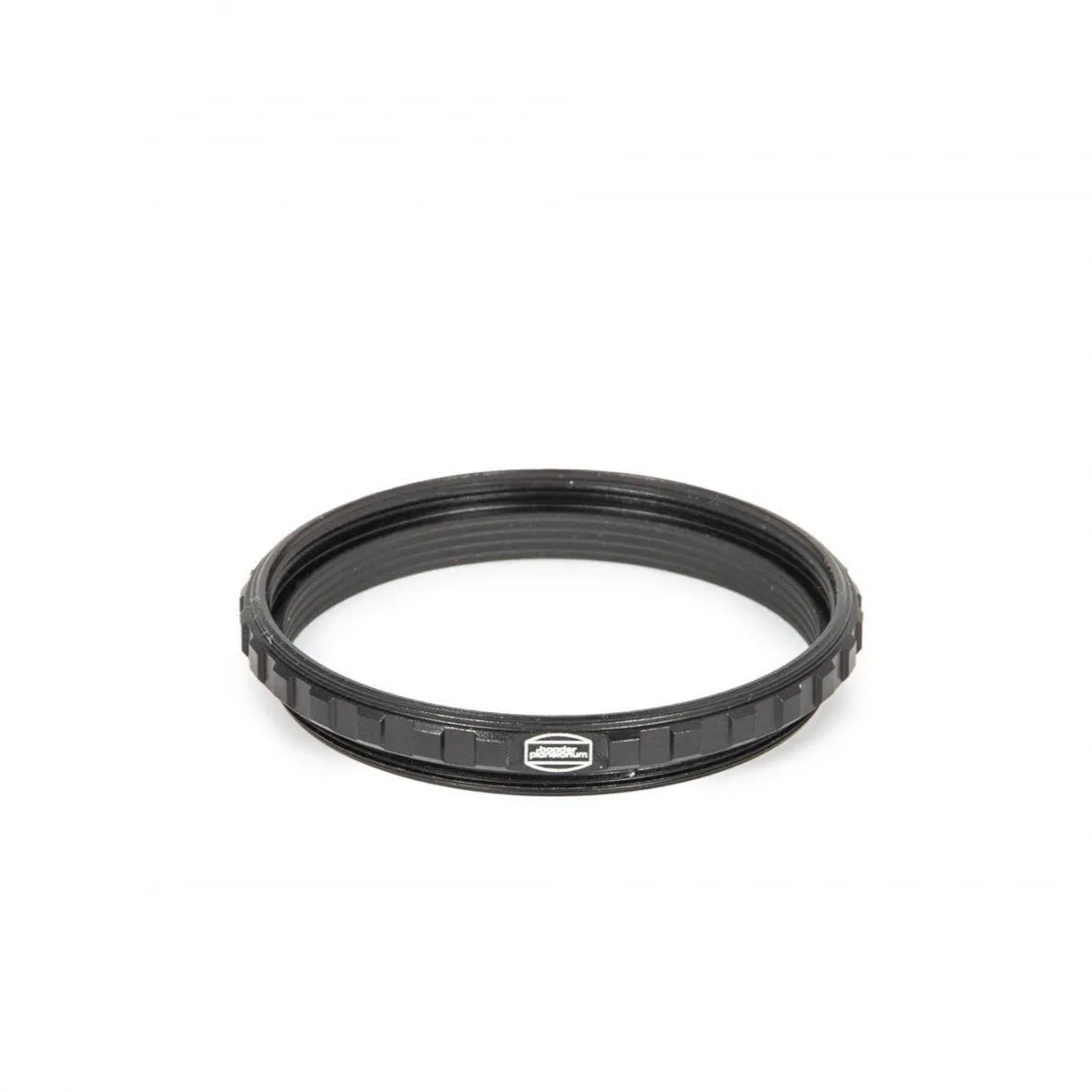

- Used to adjust the working distance of larger cameras and similar accessories with M48 thread
- Telescope side M48 internal thread, 3.5 mm depth
- Eyepiece-/camera side M48 external thread, 3 mm depth
- 5 mm optical path length
- Aluminium
Modern cameras are usually characterised by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3 mm standard.
Specifications
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2958605 |
| EAN CODE | 4047825042828 |
| OPTICAL LENGTH (MM) | 5 |
| CLAMPING SYSTEM | no clamp |
| USAGE | Adjusting the distances of accessories with M48 thread |
| INNER DIAMETER / CLEAR APERTURE (MM) | 45 mm |
| OUTER DIAMETER | 53 mm |
| INNER CONNECTION (LENS SIDED) | Thread, M48 |
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Thread, M48 |
| COMPATIBLE BRANDS | Baader Planetarium |
| TYPE OF ADAPTER | Extension |
