Product Details
＋
Description

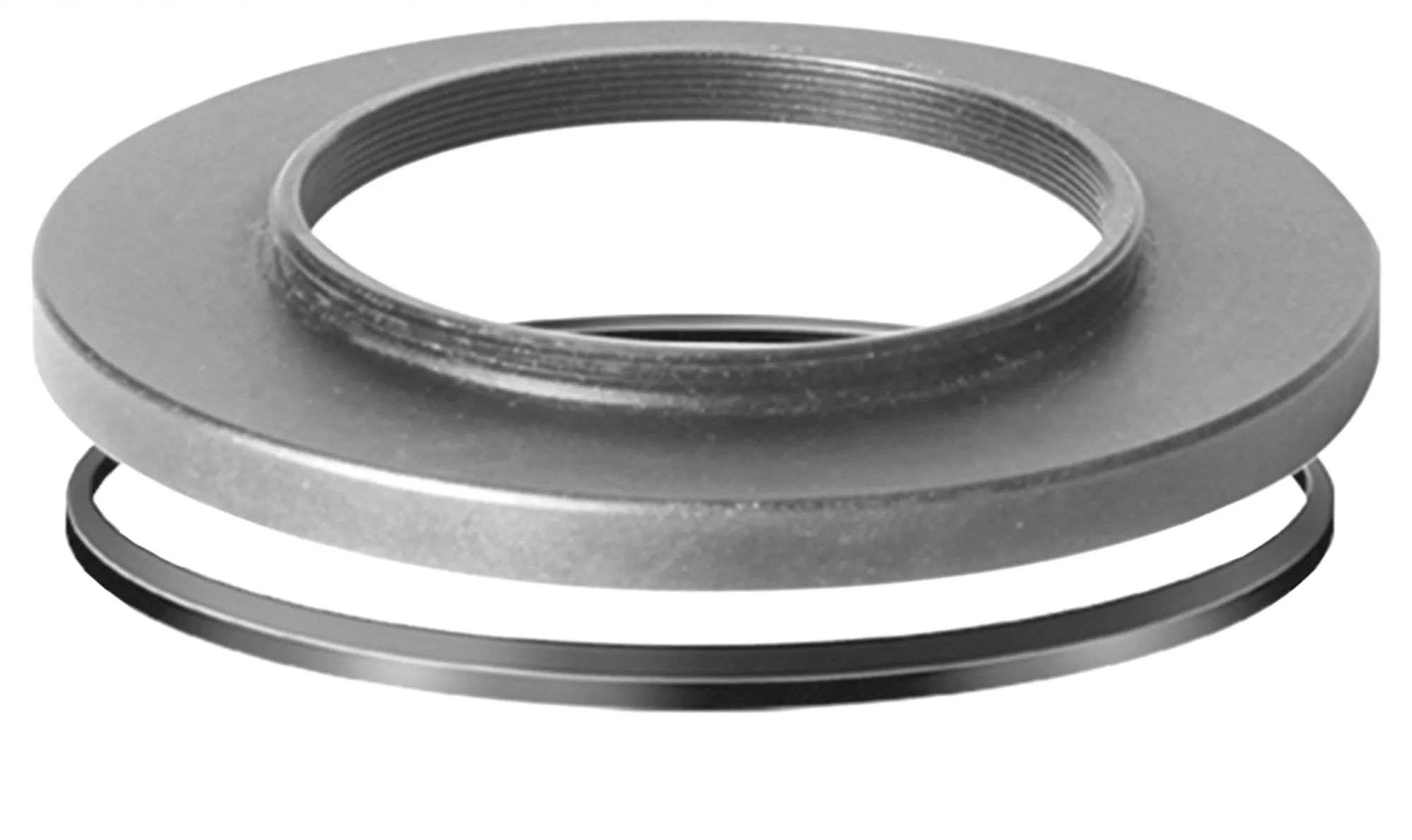

- Adapts camera lenses onto Hyperion and Morpheus Eyepieces, as well as DT Adapter II & III, for afocal eyepiece projection
- The Hyperion DT-rings are optimized for compactness to minimize distance between eyepiece and camera lens
- Also enables adapting 2” mounted Astro-Filters onto Camera Lenses (requires DSLR-2 #2408166)
- SP54 extension ring for connection required! (Item HEXT54 #2958090)
Specifications
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2958037 |
| EAN CODE | 4047825007490 |
| WEIGHT (KG) | 0.014 |
| OPTICAL LENGTH (MM) | 1 |
| USAGE | for the DSLR 2" filter holder and direct connection on all Hyperion 68° eyepieces |
| INNER DIAMETER / CLEAR APERTURE (MM) | 32 |
| OUTER DIAMETER | 57 |
| OUTER CONNECTION (LENS SIDED) | Thread |
| INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Thread, SP54 |
| ADAPTABLE TO | DTAdapter II&III and Hyperion eyepieces. Fits also onto Morpheus® 76° eyepieces (in combination with #2458040 and #2958080) |
| COMPATIBLE BRANDS | Baader Planetarium, Other |
| TYPE OF ADAPTER | Reducing piece |
