Product Details
＋
Description

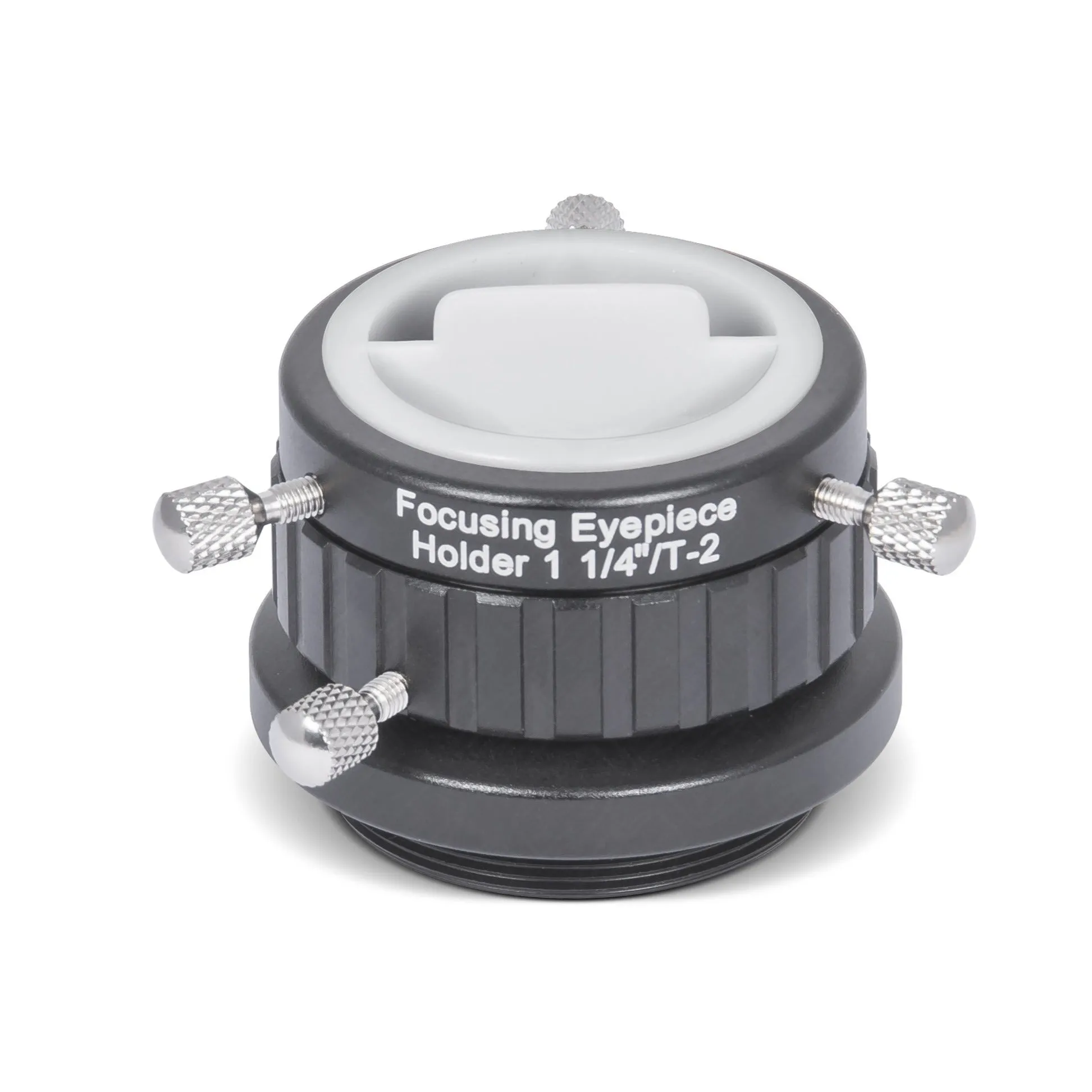

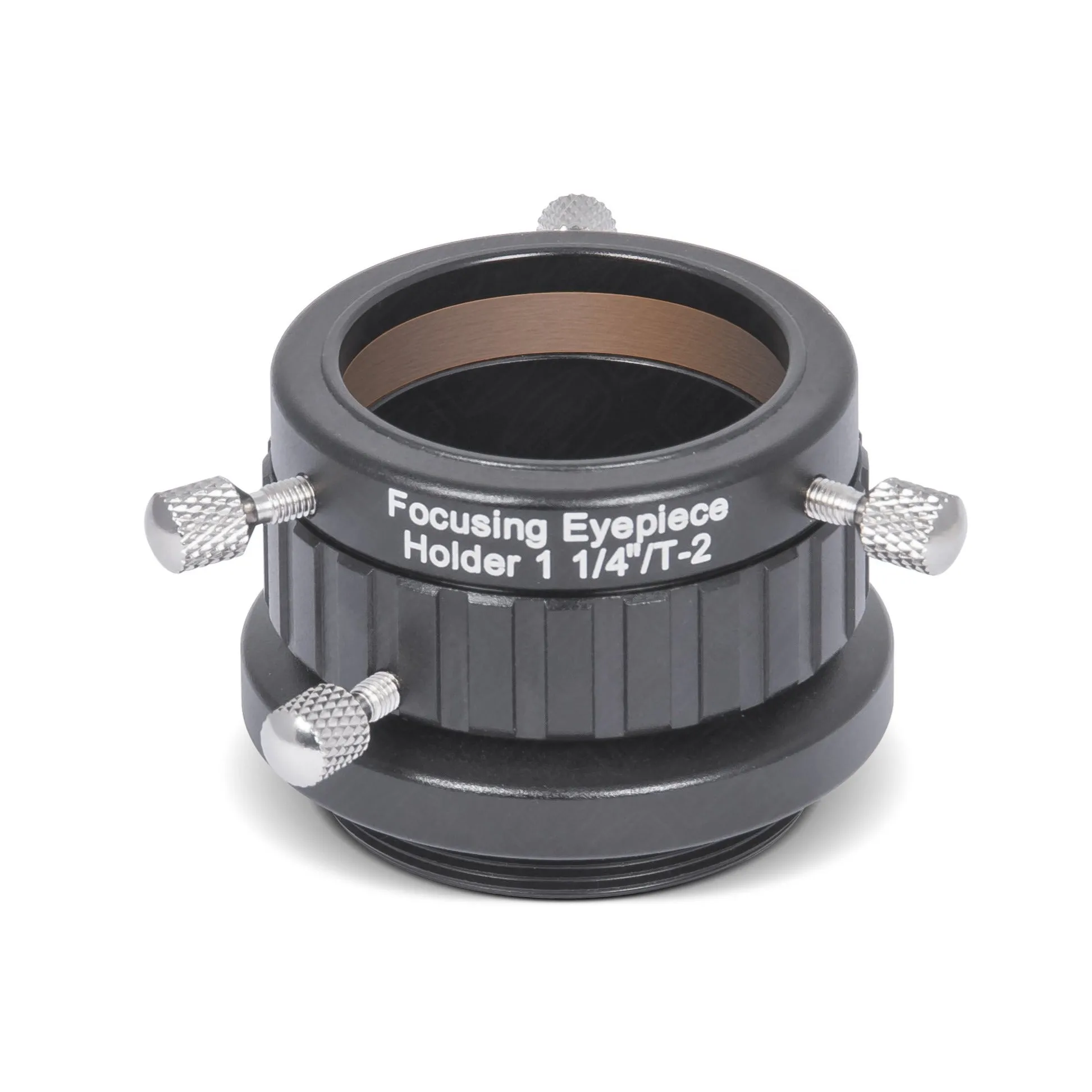

- 1¼ "/ T-2 eyepiece with fine focus (5mm focus travel)
- With three eyepiece clamping screws for fine centering - as well as rotation locking screw to secure the exact focus position
- Captive Bronze Compression Ring, prevents marring of eyepieces and accessories
- Telescope side has 36,4mm external thread
- To connect 1¼ "eyepieces to Vixen - Takahashi and Lichtenknecker telescopes
Specifications
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2408195 |
| EAN CODE | 4047825012623 |
| WEIGHT (NETTO) | 0.065 |
| OPTICAL LENGTH (MM) | 29 – 35,5 |
| CLAMPING SYSTEM | Screw clamps |
| T-2 PART # | 11 |
| USAGE | holds 1¼" eyepieces on Vixen M36,4 threads |
| SCREW TYPE | 3x M3 clamping screws and M3 Rotations-Feststellschraube |
| INNER DIAMETER / CLEAR APERTURE (MM) | 31,75 (1¼") |
| OUTER DIAMETER | 47 |
| OUTER CONNECTION (LENS SIDED) | Thread, 1 3/8" |
| INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Clamp, 1¼" |
| COMPATIBLE BRANDS | Astro T-2, Baader Planetarium, Takahashi, Vixen, Other |
| TYPE OF ADAPTER | Eyepiece Clamp, Reducing piece |
