Product Details
＋
Description

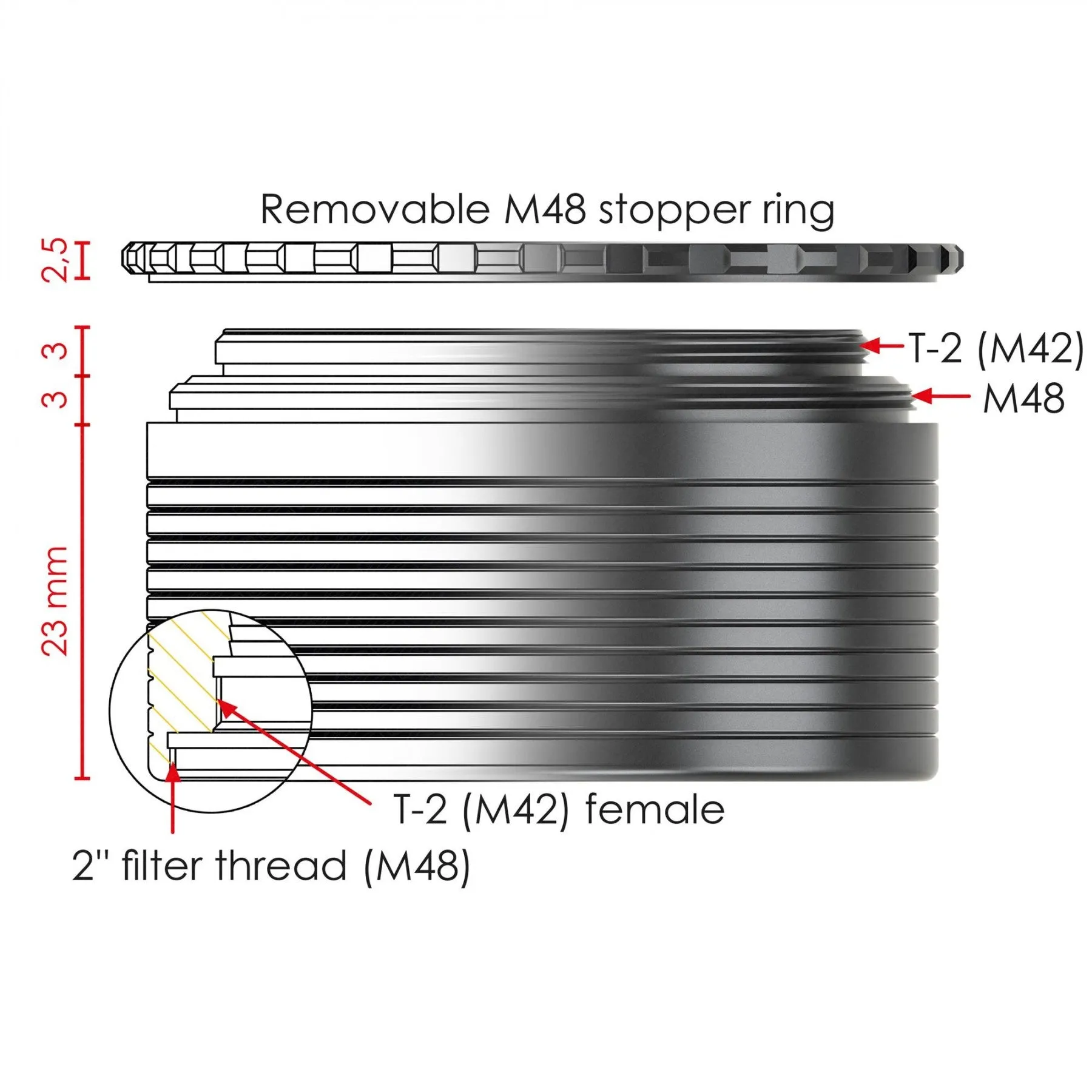

- Nosepiece with Baader proprietory Safety Kerfs grooves so that even the heaviest accessories cannot fall to the ground
- Equipped with only 3 mm long T-2 thread
- Eyepiece-/camera side with male T-2 and M48 threads
- Telescope side with 2" outer diameter and 48mm filter thread for 2" filters
- Effective optical length 3 mm
Modern cameras are usually characterised by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3 mm standard.
Specifications
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 2458130 |
| EAN CODE | 4047825045621 |
| OPTICAL LENGTH (MM) | 3 |
| INNER DIAMETER / CLEAR APERTURE (MM) | 37,5 mm |
| OUTER DIAMETER | 54 mm |
| INNER CONNECTION (LENS SIDED) | Thread |
| OUTER CONNECTION (LENS SIDED) | Barrel, 2" (50,8mm) |
| INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Thread |
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Thread, T-2 (M42 x 0,75), M48 |
| COMPATIBLE BRANDS | Astro T-2, Baader Planetarium, Celestron |
| TYPE OF ADAPTER | Barrel, Expanding piece, Filter holder |
