1 Channel Single-Mode Video Bi-Direct RX Receiver FC Connector FRV10D1S1FC

Also Known As:

1 Channel, Single-Mode, FC Connector, Bi-Direct RX Receiver, FRV10D1S1FC

About:

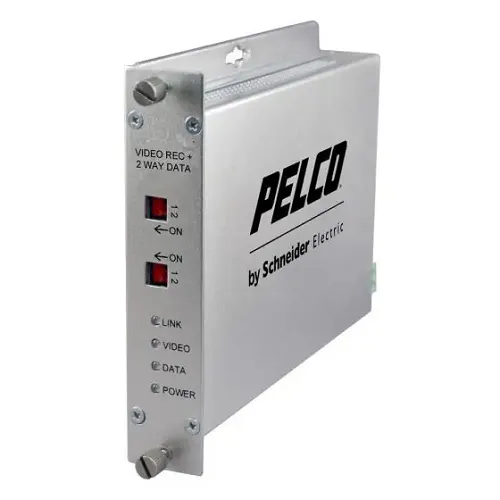

The FRV10D1S1FC Fiber Receiver enables the transmission of one unidirectional composite video channel and one bidirectional data channel over a single optical fiber. Additionally, it supports "up-the-coax" technology, allowing Coaxitron pan/tilt/zoom (PTZ) control data to be transmitted over the full distance of the fiber, up to 48 km when using single-mode fiber. The receiver provides an optical power budget of 23 dB with single-mode fiber. The FRV10D1S1FC is compatible with other fiber models, including backward compatibility with the FSV10D1 transmitter. The plug-and-play design ensures a hassle-free installation, requiring no electrical or optical adjustments. Its modular design supports both rack-mounted setups using the EURACK/USRACK chassis or standalone installations on a desktop or wall (no wall mount kit required). External power is necessary for standalone or wall-mounted configurations, and the unit can be powered using the recommended FEXTPS fiber external power supply.

Features:

• Laser Diode for Transmission of Optical Signals
• Stand-Alone and Rack-Mountable Modular Design
• Compatible with NTSC, PAL, and SECAM Video Standards
• Single-Mode Fiber Support for Distances up to 69 km (43 mi)
• Exceeds All Requirements for RS-250C Short-Haul Transmission
• LED Status Indicators for Monitoring All Critical Operating Parameters
• Supports Pelco Coaxitron “Up-the-Coax” Control Signals for a Distance up to 48 km (30 mi)
• Designed to Meet NEMA TS-1/TS-2 and Caltrans Traffic Signal Control Equipment Environmental Standards
• 10-Bit Digitally Encoded Video for High-Quality Video Transmission over a Single Fiber
Bidirectional Data Channel that Supports RS-232, RS-422, RS-485 (2-wire/4-wire), Manchester, Bi-Phase, and Coaxitron Communication

Specifications:

• Product Type: Bi-Direct RX Receiver
• Part Number : FRV10D1S1FC
